Commercia Industrial Solar Storage Hybrid Solution
System Architecture
A commercial & industrial (C&I) solar energy storage hybrid system integrates PV generation, battery energy storage system (BESS), grid connection, and diesel generator backup through a unified energy management system (EMS) to optimize power flow, reliability, and cost efficiency.
During daytime, the photovoltaic (PV) system generates clean electricity. Power is first supplied to on-site loads, while excess energy is stored in the lithium battery storage system via a hybrid inverter through DC-coupled or AC-coupled architecture. If solar generation exceeds demand and the battery is full, surplus power is exported to the utility grid.
At night or during low solar output, the system discharges stored energy from the energy storage battery to supply critical loads, enabling peak shaving, load shifting, and improved self-consumption. The grid-tied inverter system ensures seamless switching between solar, battery, grid, and generator power sources.
In case of grid outage, the system automatically switches to EPS (Emergency Power Supply) mode, maintaining uninterrupted power for essential industrial and commercial loads such as factories, cold storage, and critical equipment.
This hybrid solar + storage solution delivers energy independence, backup power resilience, reduced electricity costs, and enhanced grid stability for modern C&I energy applications.
Benefits
Smart Load Management
Maximize self-consumption of solar PV power once the high-voltage battery energy storage system reaches full state of charge.
AC Coupling Compatibility
Supports connection of string inverters and microinverters through the GEN port for flexible hybrid solar system expansion.
Diesel Generator Integration
Built-in access for diesel backup generators to build multi-energy complementary industrial microgrids.
UPS-Grade Emergency Backup Power
Delivers stable uninterrupted power supply for critical industrial loads during utility grid blackouts.
Full Three-Phase Unbalanced Output
100% unbalanced three-phase AC output adapts to complex commercial and industrial power loads.
Economic & Eco Benefits
Peak-Valley Cost Optimization
Slash industrial electricity expenses via peak shaving, load shifting and grid feed-in revenue.
Lower dependence on utility grid power to avoid volatile electricity price fluctuations.
Optimized Energy Utilization Efficiency
Intelligent energy dispatch minimizes power waste and boosts overall solar system efficiency.
Cut factory carbon footprints and support corporate zero-carbon sustainable development goals.
Application
Industrial & Manufacturing Facilities
Ideal for factories, production lines, and industrial parks with high and continuous electricity demand.
The system supports peak shaving, load shifting, and power stability, reducing overall electricity costs and grid dependency.
Commercial Buildings & Business Centers
Suitable for office buildings, shopping malls, hotels, and data centers.
It ensures uninterrupted power supply, energy efficiency optimization, and backup power during outages, improving operational reliability.
Small & Medium Industrial Parks
Designed for multi-tenant industrial zones and SME clusters.
Enables shared energy storage, demand management, and grid load balancing, improving overall energy utilization efficiency.

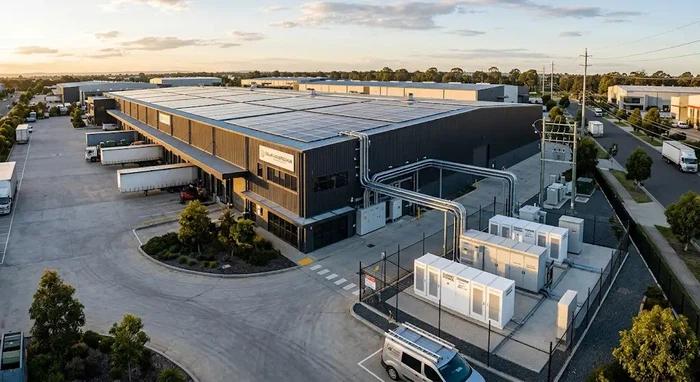

Cold Storage & Temperature-Sensitive Facilities
Applied in cold chain logistics, food storage, and pharmaceutical warehouses.
Provides continuous power protection for refrigeration systems, preventing losses caused by grid failure.
Remote or Weak Grid Areas
Suitable for regions with unstable grid supply or frequent power interruptions.
Combines solar PV, battery storage, and diesel generator backup to ensure reliable off-grid or hybrid power supply.
EV Charging Stations & Microgrids
Supports electric vehicle charging infrastructure and distributed microgrid systems.
Balances fast-charging demand, grid impact reduction, and renewable energy integration.

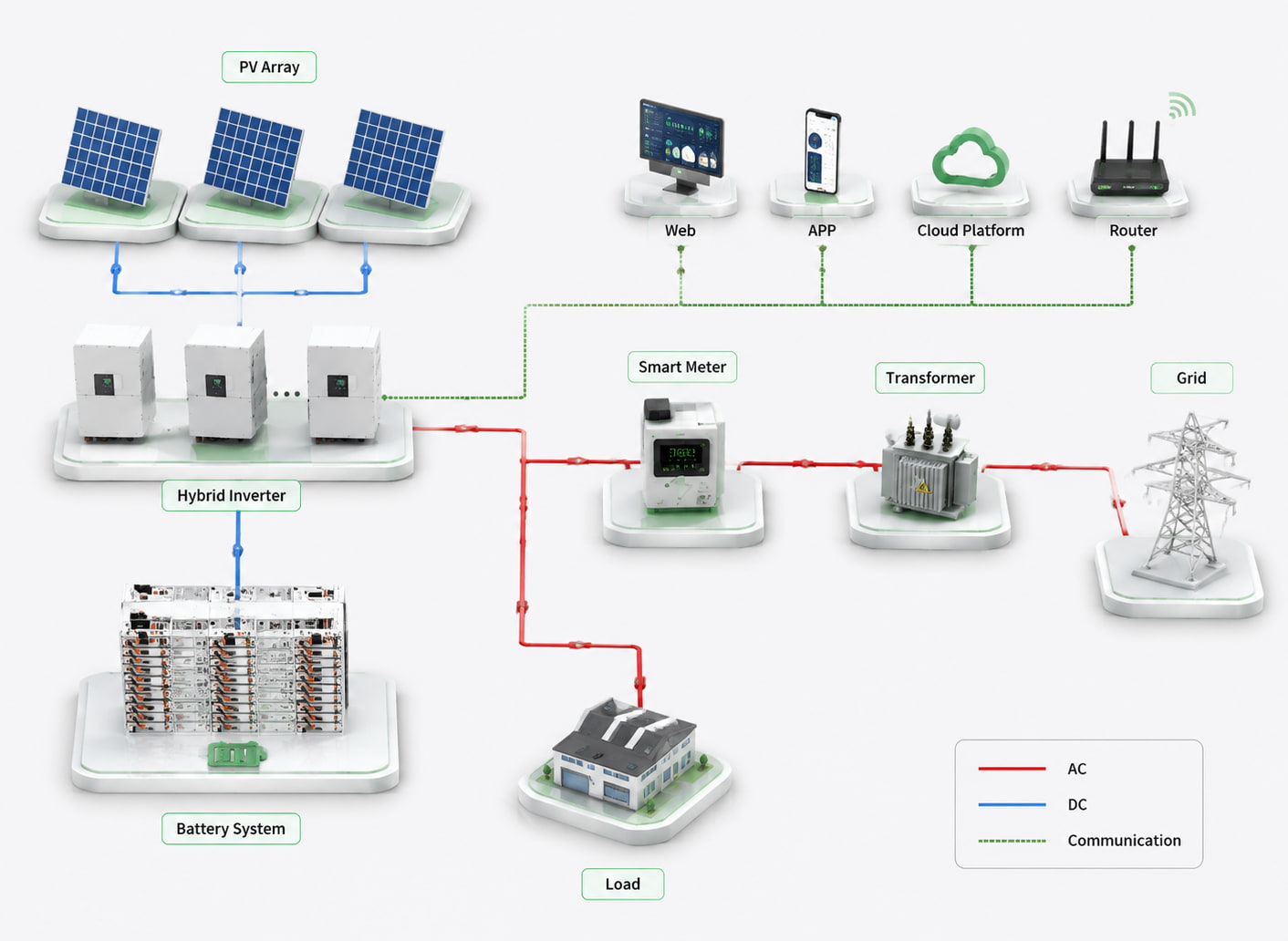

Physical Diagram of Work
