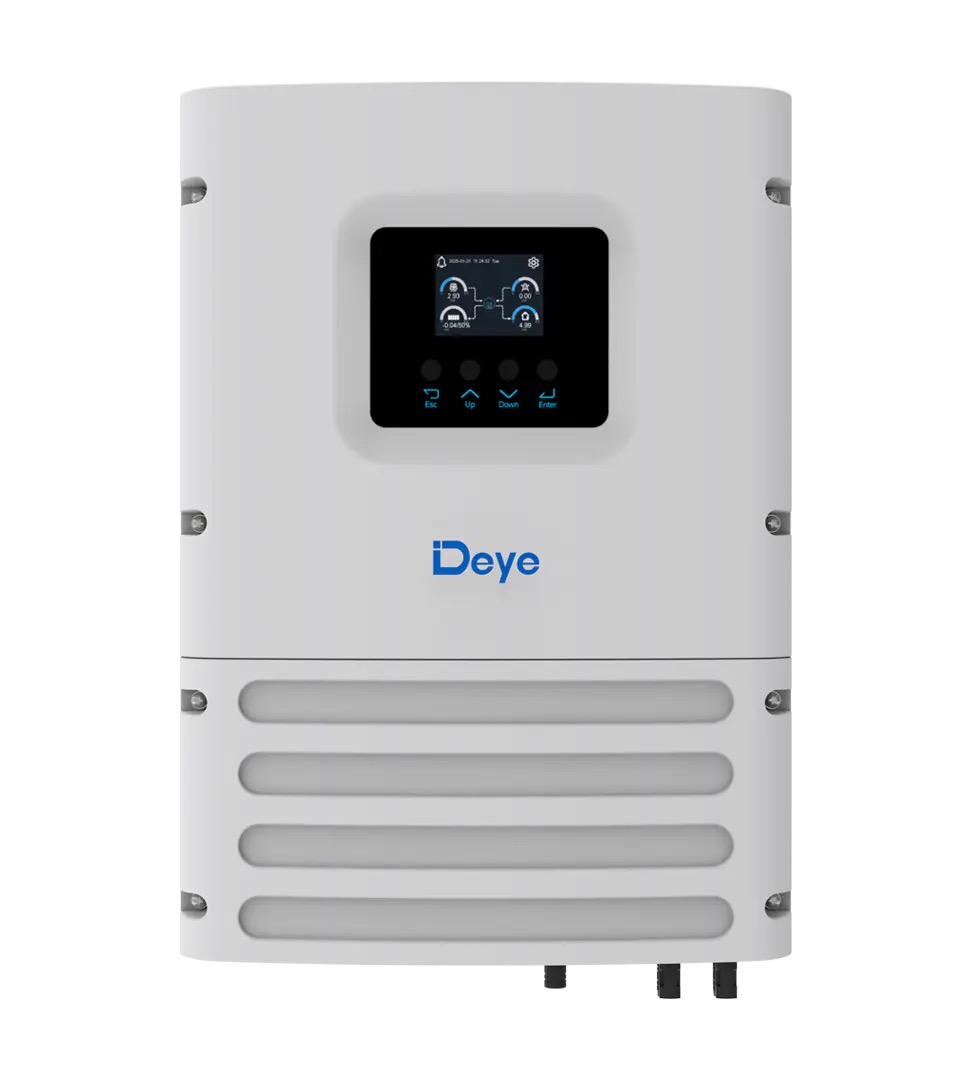

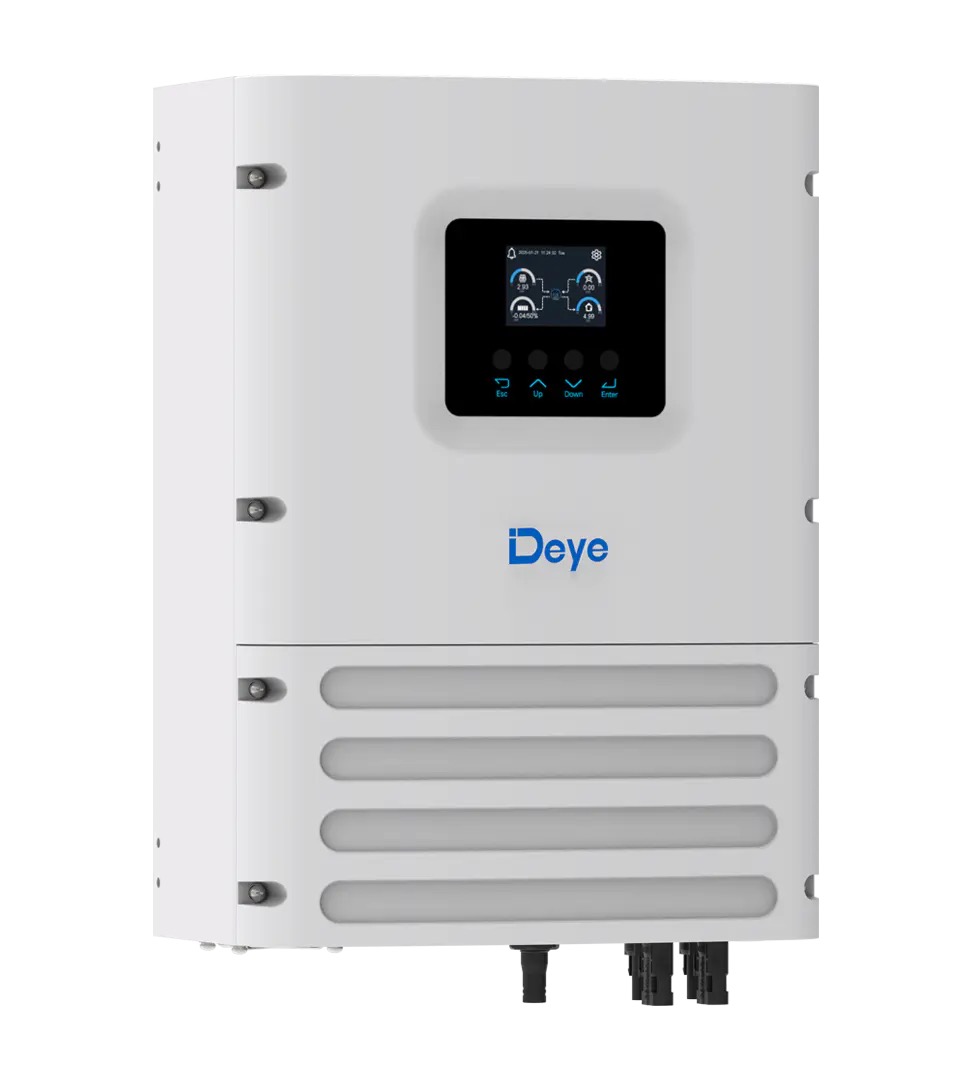

Deye SUN-3/3.6/5/6K-OG01LP1-EU-AM2 Off-grid Inverter
- Category: Off-Grid Inverter
- Parameter
Product Description
SUN-3/3.6/5/6K-OG01LP1-EU-AM2
Higher yields / Safe & Reliable / Smart / User-friendly
Remotely shutdown function
Smart Monitoring Platform
Thanks to the smart monitoring platform, Deye full series inverter products support remotely shutdown immediately when accident occurs.Setting parameters and FW update remotely, which makes PV plant O&M easier.
- High Performance
- Outdoor-Ready
- Durable & Reliable
- Parallel Scalability
- Generator Integration
- High Efficiency
- Smart MPPT Technology
- Long-Term Assurance
| Model | SUN-3K-OG01LP1 -24-EU-AM2 | SUN-3.6K-OG01LPA-EU-AM2 | SUN-5K-OG01LP1-EU-AM2 | SUN-6K-OG01LP1-EU-AM2 |
| Battery Input Data | ||||
| Battery Type | Lead-acid or Lithium-ion | |||
| Battery Voltage Range (V) | 20-30 | 40-60 | ||
| Max. Charging Current (A） | 130 | 90 | 120 | 135 |
| Max. Discharging Current (A) | 130 | 90 | 120 | 135 |
| Charging Strategy for Li-ion Battery | Self-adaption to BMS | |||
| Number of Battery Input | 1 | |||
| PV String Input Data | ||||
| Max. PV Access Power (W) | 6000 | 7200 | 10000 | 12000 |
| Max. PV Input Power (W) | 4800 | 5760 | 8000 | 9600 |
| Max. PV Input Voltage (V） | 500 | |||
| Start-up Voltage (V) | 125 | |||
| PV Input Voltage(V) | 125-500 | |||
| MPPT Voltage Range(V） | 150-425 | |||
| Full Load MPPT Voltage Range(V) | 300-425 | |||
| Rated PV Input Voltage (V) | 370 | |||
| Max. Operating PV Input Current (A） | 18 | 18+18 | ||
| Max. Input Short-Circuit Current (A) | 27 | 27+27 | ||
| No. of MPP Trackers/No. of Strings MPP Tracker | 1月1日 | 2/1+1 | ||
| Max. Inverter Backfeed Current to The Array(A) | 0 | |||
| AC Output Data | ||||
| Rated AC Output Power (VA/W) | 3000 | 3600 | 5000 | 6000 |
| Max. AC Output Power (VA/W) | 3000 | 3600 | 5000 | 6000 |
| Max. AC Output Current (A) | 13.1 | 15.7 | 21.8 | 26.1 |
| Peak Power (W） | 2 times of rated power, 10s | |||
| Rated Output Voltage (V) | 230 | |||
| Output Type | L+N+PE | |||
| Rated Output Frequency | 50Hz / 60Hz | |||
| Output Voltage Waveform | Pure Sine Wave | |||
| Total Current Harmonic Distortion THDi | ＜3% | |||
| AC Input Date(Grid and Generator) | ||||
| Max. Input Power to Battery (W) | 3000 | 3600 | 5000 | 6000 |
| Rated Input Voltage (V） | 230 | |||
| Rated Input Frequency | 50Hz / 60Hz | |||
| Gird Input Current (A) | 35 | |||
| Generator Input Current (A) | 35 | |||
| Efficiency | ||||
| Max. Efficiency | 97.60% | |||
| Euro Efficiency | 96.50% | |||
| MPPT Efficiency | >99% | |||
| Equipment Protection | ||||
| Integrated | DC Polarity Reverse Connection Protection, AC Output Overcurrent Protection, Thermal Protection, AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring, Overvoltage Load Drop Protection, Ground Fault Current Monitoring, Arc Fault Circuit Interrupter (optional), Power Network Monitoring, Island Protection Monitoring, Earth Fault Detection, DC Input Switch, DC Terminal Insulation Impedance Monitoring, Residual Current (RCD) Detection, Surge protection leve | |||
| Surge Protection Level | TYPE II(DC), TYPE II(AC) | |||
| Interface | ||||
| LCD/LED Display | LCD | |||
| Communication Interface | WIFI/RS485/CAN/Bluetooth | |||
| General Data | ||||
| Max. Operating Frequency(Hz) | 200M | |||
| Operating Temperature Range (℃) | -40 to +60℃, >45℃ Derating | |||
| Permissible Ambient Humidity | 0-100% | |||
| Permissible Altitude | 3000m | |||
| Noise (dB) | <55 | |||
| Ingress Protection(IP) Rating | IP 65 | |||
| Inverter Topology | Non-Isolated | |||
| Over Voltage Category | OVC II(DC), OVC III(AC) | |||
| Cabinet Size (WxHxD mm) | 306×427.5×175.77 (Excluding Connectors and Brackets) | |||
| Weight (kg） | 12.65 | |||
| Type of Cooling | Intelligent Air Cooling | |||
| Warranty | Standard 5 years, extended warranty | |||
| Safety / EMC Standard | IEC62109-1/2, EN61000-6-6, EN61000-6-3, EN61000-6-4 | |||
