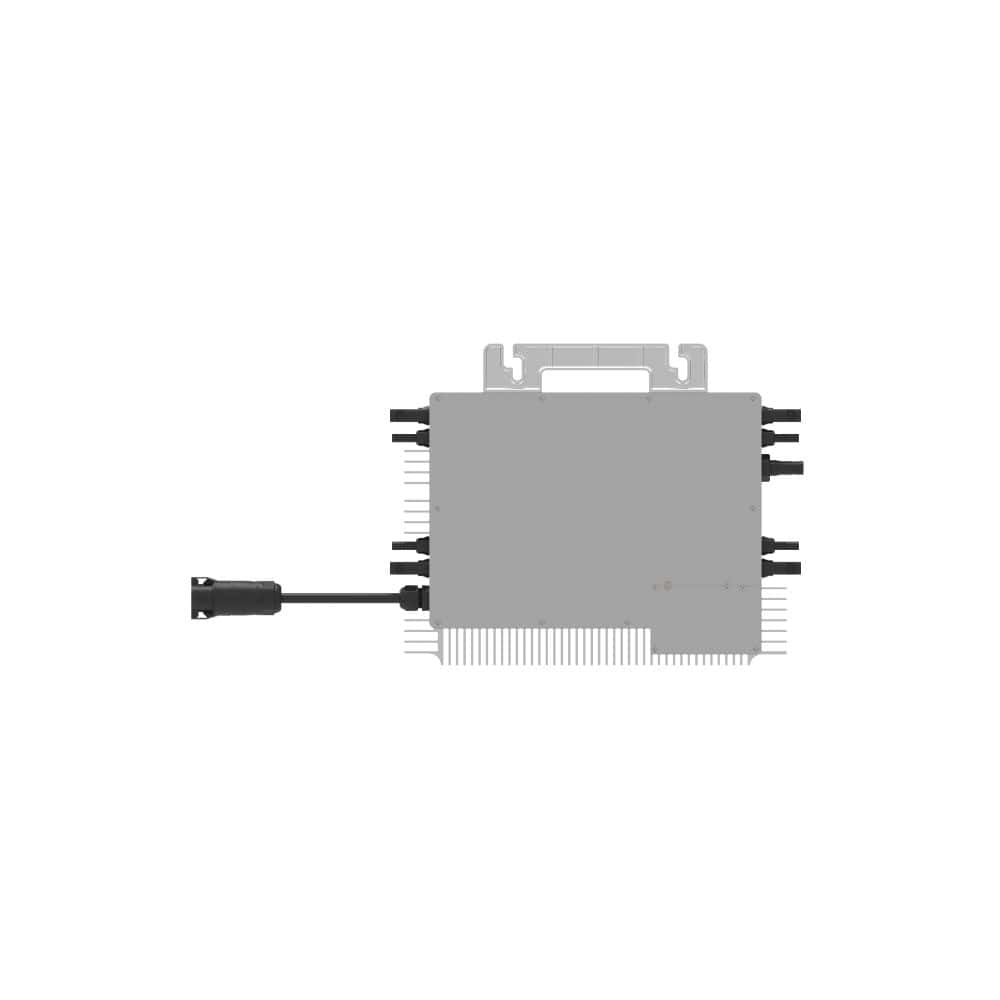

Deye SUN-M130/160/180/200/220G4-EU Micro Inverter

The SUN-M130/160/180/200/220G4-EU-Q0 microinverter series represents the latest innovation in solar power technology. Featuring four Maximum Power Point (MPP) trackers, module-level monitoring, and an IP67 protection rating, this microinverter series offers unparalleled efficiency and reliability for residential and commercial photovoltaic (PV) systems.

SKU: SUN-M130/160/180/200/220G4-EU

Description

Key Features

• Quad MPPT Technology: Each microinverter is equipped with four MPP trackers, ensuring maximum energy harvest by optimizing power conversion from each PV module.
• High DC Input Capability: Capable of handling a maximum DC input current of 18A, making it compatible with high-output PV modules up to 700W.
• Robust Protection: The IP67 rating provides superior resistance to dust and water, adding to the longevity and reliability of the inverter in various environmental conditions.
• Integrated WiFi: Enables real-time system monitoring and management through an intuitive interface, ensuring optimal performance at all times.
• Ease of Installation: Ideal for quick-plug balcony PV systems, simplifying the installation process and reducing setup time.
• Extended Warranty: Offers a 10-year warranty (with an option for a 15-year warranty in Germany and Austria), providing long-term reliability and peace of mind.

Technical Specifications

• Model Variants:
  • SUN-M130G4-EU-Q0
  • SUN-M160G4-EU-Q0
  • SUN-M180G4-EU-Q0
  • SUN-M200G4-EU-Q0
  • SUN-M220G4-EU-Q0
  • SUN-M180G4-EU-Q0-P
  • SUN-M200G4-EU-Q0-P
• PV Input:
  • Max. Input Voltage: 60V
  • Start-up Voltage: 20V
  • MPPT Voltage Range: 25-55V
  • Max. Operating PV Input Current: 18 + 18 + 18 + 18A
  • Max. Input Short Circuit Current: 27 + 27 + 27 + 27A
• AC Output:
  • Rated Active Power: 1300-2200W
  • Max. Apparent Power: 1300-2200VA
  • Grid Connection: L/N/PE
  • Rated Output Voltage: 220/230V (Range: 0.85Un-1.1Un)
  • Rated Output Frequency: 50/60Hz
  • Power Factor: 0.9 leading to 0.9 lagging
  • Total Harmonic Distortion (THDi): <3%
  • Max. Efficiency: 96.5%
  • Euro Efficiency: 96.0%
  • MPPT Efficiency: >99%
  • Max. Units per Branch: Up to 5 units
• Protection Features:
  • DC Polarity Reverse Connection Protection
  • AC Output Overcurrent Protection
  • AC Output Overvoltage Protection
  • AC Output Short Circuit Protection
  • Thermal Protection
  • DC Terminal Insulation Monitoring
  • Power Network Monitoring
  • Island Protection
  • Earth Fault Detection
  • Overvoltage Load Drop Protection
• Environmental Specifications:
  • Operating Temperature: -40 to +65°C (Derating above 45°C)
  • Permissible Ambient Humidity: 0-100%
  • Permissible Altitude: 2000m
  • Noise Level: ≤25dB
• Physical Characteristics:
  • Ingress Protection Rating: IP67
  • Cooling Method: Natural Cooling
  • Dimensions: 311×250.5×36.5 mm or 358×255.5×36.5 mm (excluding connectors and brackets)
  • Weight: 5.1 kg or 5.2 kg
• Certifications and Standards:
  • Grid Regulations: IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, VDE-AR-N 4105
  • Safety and EMC Standards: IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
