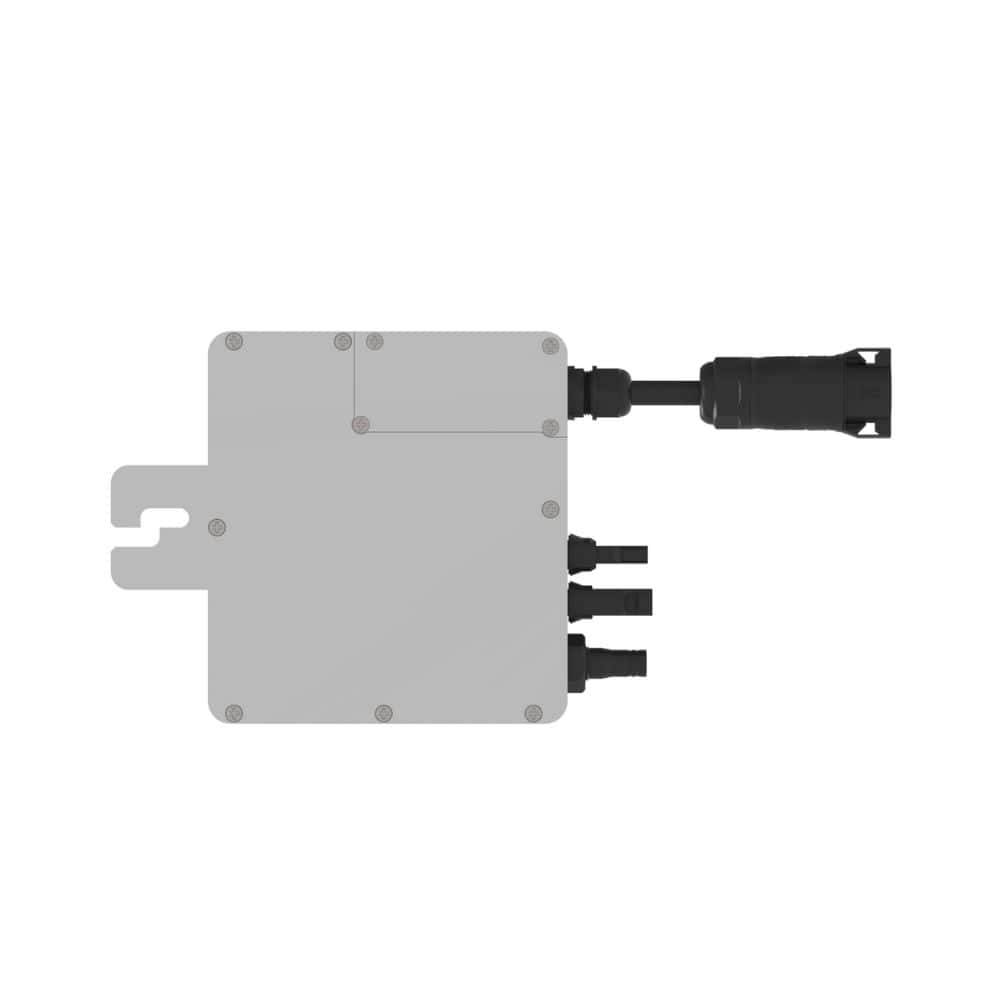

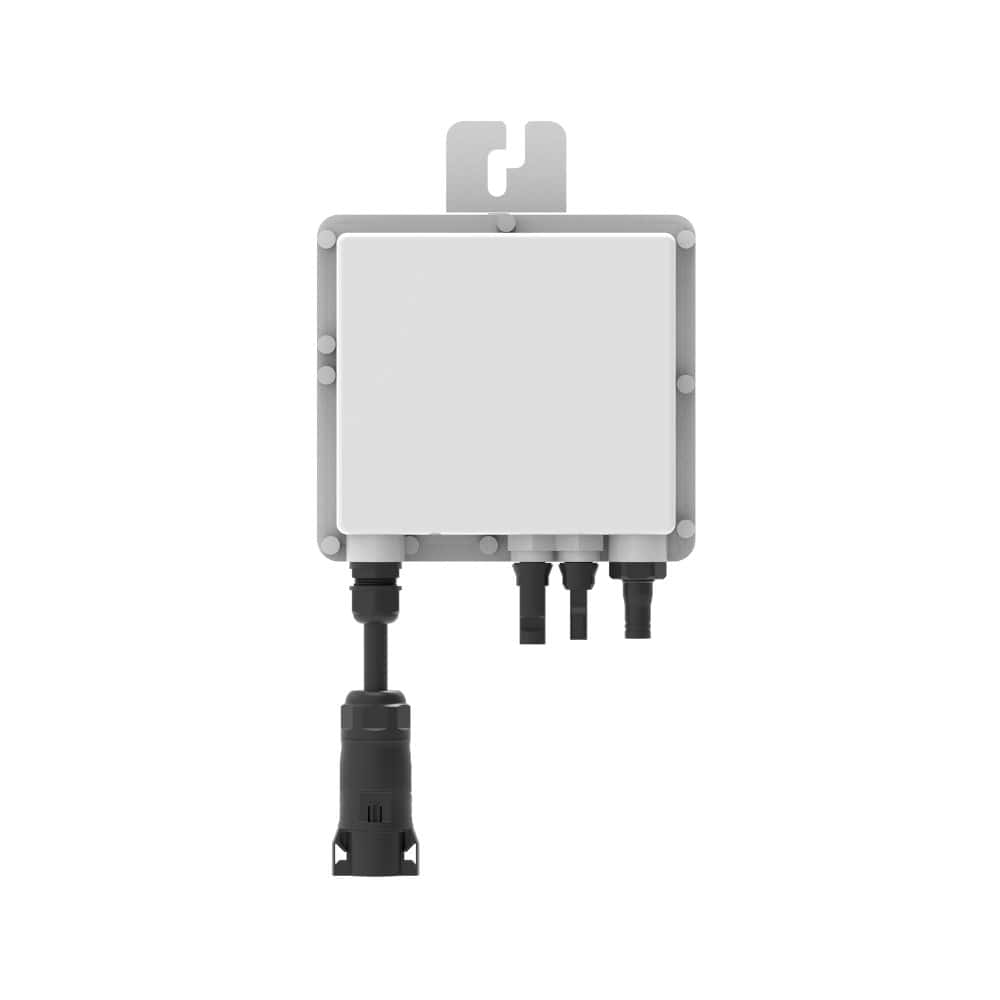

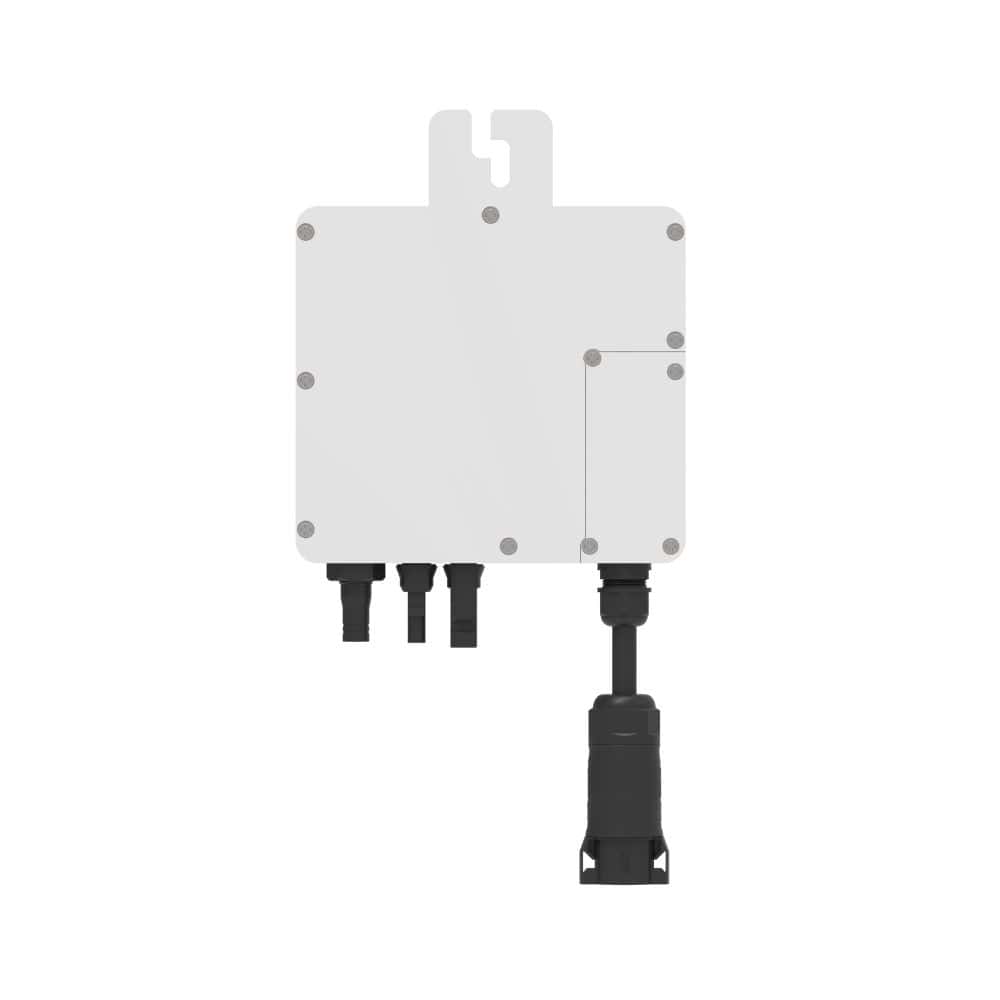

Deye SUN-M30/40/50G4-EU Micro Inverter

The SUN-M30/40/50G4-EU-Q0 series microinverter is an advanced and efficient solution for photovoltaic (PV) systems. Its single Maximum Power Point (MPP) tracker, module-level monitoring, and IP67 protection make it a highly reliable and user-friendly choice for renewable energy applications.

Description

Key Features

• Maximized Performance: Equipped with one MPP tracker per module, ensuring optimized power conversion efficiency and performance.
• High Protection: IP67 rating ensures protection against dust and water ingress, thereby extending the inverter’s lifespan even in harsh environmental conditions.
• Integrated WIFI: Facilitates real-time monitoring and management through a user-friendly interface.
• Rapid Shutdown Function: Provides enhanced safety by complying with the DIN VDE V 0126-95 standard for rapid AC discharge within <100ms.
• Easy Installation: Designed for quick-plug balcony PV systems, allowing for straightforward setup and maintenance.
• Long-lasting Durability: Features an external relay designed for low temperature, extended life, and easier maintenance.
• Comprehensive Warranty: Comes with a 25-year design lifetime and a 15-year warranty for peace of mind.

Technical Specifications

• Model Variants:
  • SUN-M30G4-EU-Q0
  • SUN-M40G4-EU-Q0
  • SUN-M50G4-EU-Q0
• PV Input:
  • Max. Input Power: Up to 500W
  • Max. Input Voltage: 60V
  • Start-up Voltage: 20V
  • MPPT Voltage Range: 25-55V
  • Max. Operating PV Input Current: 13A
  • Max. Input Short Circuit Current: 19.5A
• AC Output:
  • Rated Active Power: 300-500W
  • Max. Apparent Power: 300-500VA
  • Grid Connection: L/N/PE
  • Rated Output Voltage: 220/230V (Range: 0.85Un-1.1Un)
  • Rated Output Frequency: 50/60Hz
  • Power Factor: 0.9 leading to 0.9 lagging
  • Total Harmonic Distortion (THDi): <3%
  • Max. Efficiency: 96.5%
  • Euro Efficiency: 96.0%
  • MPPT Efficiency: >99%
  • Max. Units per Branch: 17 units
• Protection Features:
  • DC Polarity Reverse Connection Protection
  • AC Output Overcurrent Protection
  • AC Output Overvoltage Protection
  • AC Output Short Circuit Protection
  • Thermal Protection
  • DC Terminal Insulation Monitoring
  • Power Network Monitoring
  • Island Protection
  • Earth Fault Detection
  • Overvoltage Load Drop Protection
• Environmental Specifications:
  • Operating Temperature: -40 to +65°C (Derating >45°C)
  • Permissible Ambient Humidity: 0-100%
  • Permissible Altitude: 2000m
  • Noise Level: ≤25dB
• Physical Characteristics:
  • Ingress Protection Rating: IP67
  • Cooling Method: Natural Cooling
  • Dimensions: 173×158.5×31.5 mm (excluding connectors and brackets)
  • Weight: 1.85 kg
• Certifications and Standards:
  • Grid Regulations: IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, VDE-AR-N 4105
  • Safety and EMC Standards: IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
