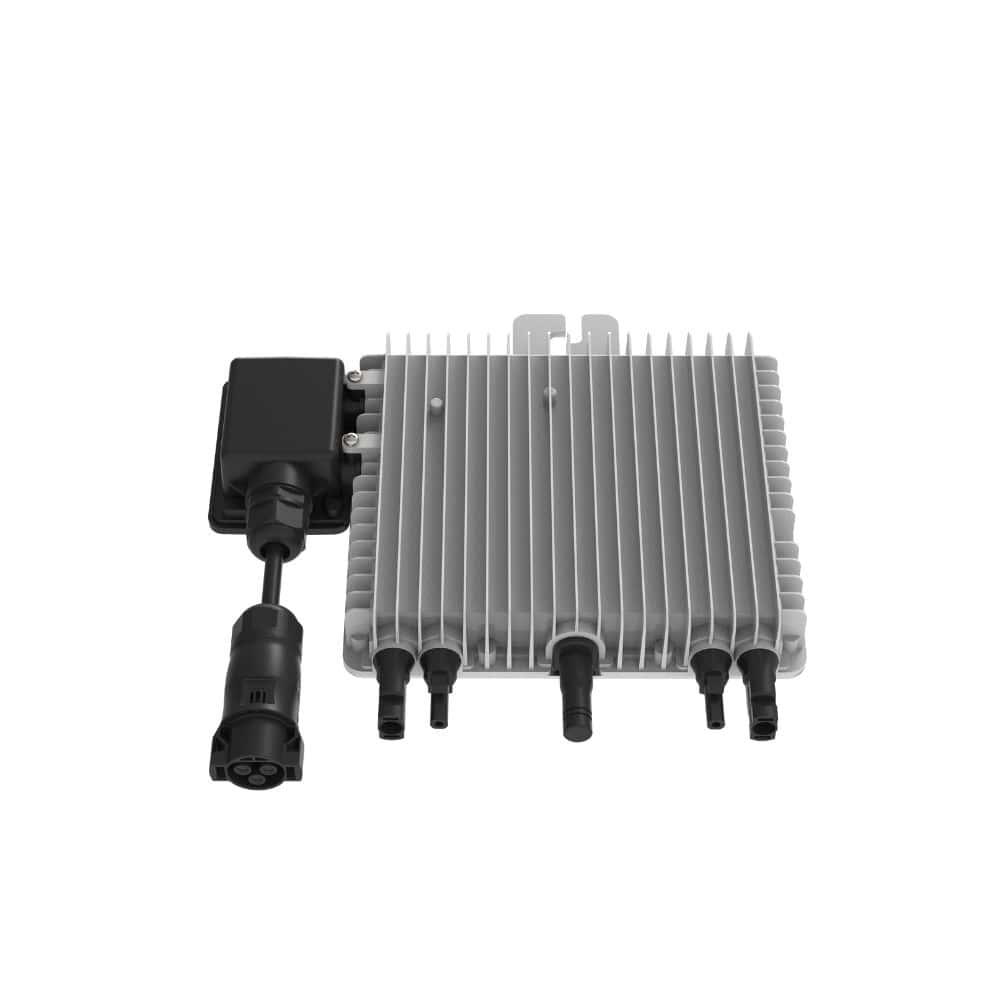

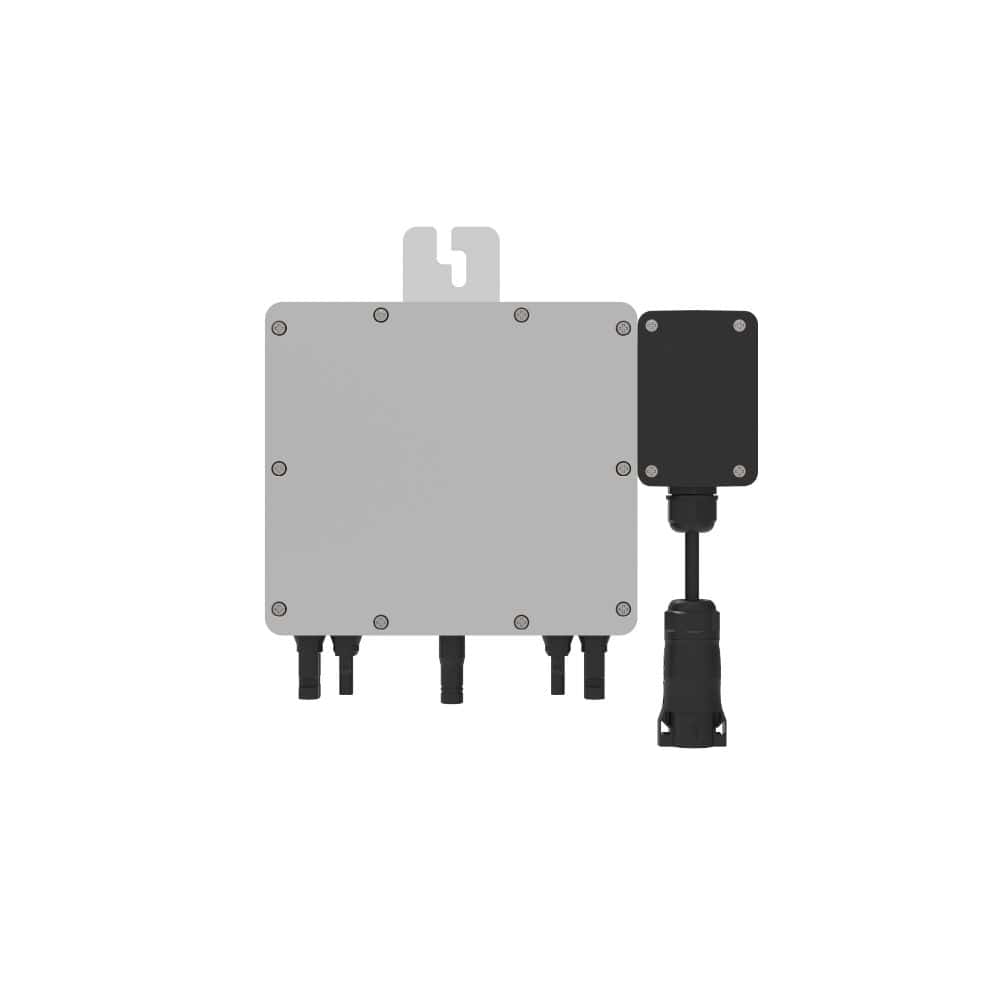

Deye SUN-M60/80/100G4-EU-Q0 Micro Inverter

The SUN-M60/80/100G4-EU-Q0 series microinverter is a cutting-edge solution designed for efficient and reliable performance in photovoltaic (PV) systems. Featuring dual Maximum Power Point (MPP) trackers, module-level monitoring, and an IP67 protection rating, this microinverter series ensures superior power conversion and durability for a range of solar energy applications.

Categories: Inverter, Microinverter

Description

Key Features

• Dual MPPT: Equipped with two MPP trackers per module, maximizing energy harvest by optimizing power conversion from each PV module.
• Robust Protection: The IP67 rating ensures resistance to dust and water, enhancing the inverter’s longevity and reliability in various environments.
• WiFi Integration: Built-in WiFi facilitates real-time system monitoring and management through an intuitive interface.
• Rapid Shutdown Function: Enhances safety by complying with the DIN VDE V 0126-95 standard, ensuring AC discharge within <100ms for rapid shutdown.
• Ease of Installation: Designed for quick-plug balcony PV systems, simplifying the installation process and minimizing setup time.
• Extended Relay Life: External relay designed for low-temperature operation, offering long life and easier maintenance.
• Long-Term Reliability: With a 25-year design lifetime and a 15-year warranty, providing assurance of long-term operation and support.

Technical Specifications

• Model Variants:
  • SUN-M60G4-EU-Q0
  • SUN-M80G4-EU-Q0
  • SUN-M100G4-EU-Q0
• PV Input:
  • Max. Input Power: 210-420/560/700W(2 pieces)
  • Max. Input Voltage: 60V
  • Start-up Voltage: 20V
  • MPPT Voltage Range: 25-55V
  • Max. Operating PV Input Current: 13 + 13A
  • Max. Input Short Circuit Current: 19.5 + 19.5A
• AC Output:
  • Rated Active Power: 600-1000W
  • Max. Apparent Power: 600-1000VA
  • Grid Connection: L/N/PE
  • Rated Output Voltage: 220/230V (Range: 0.85Un-1.1Un)
  • Rated Output Frequency: 50/60Hz
  • Power Factor: 0.9 leading to 0.9 lagging
  • Total Harmonic Distortion (THDi): <3%
  • Max. Efficiency: 96.5%
  • Euro Efficiency: 96.0%
  • MPPT Efficiency: >99%
  • Max. Units per Branch: Up to 8 units
• Protection Features:
  • DC Polarity Reverse Connection Protection
  • AC Output Overcurrent Protection
  • AC Output Overvoltage Protection
  • AC Output Short Circuit Protection
  • Thermal Protection
  • DC Terminal Insulation Monitoring
  • Power Network Monitoring
  • Island Protection
  • Earth Fault Detection
  • Overvoltage Load Drop Protection
• Environmental Specifications:
  • Operating Temperature: -40 to +65°C (Derating above 45°C)
  • Permissible Ambient Humidity: 0-100%
  • Permissible Altitude: 2000m
  • Noise Level: ≤25dB
• Physical Characteristics:
  • Ingress Protection Rating: IP67
  • Cooling Method: Natural Cooling
  • Dimensions: 280.5×190×40 mm (excluding connectors and brackets)
  • Weight: 3 kg
• Certifications and Standards:
  • Grid Regulations: IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, VDE-AR-N 4105
  • Safety and EMC Standards: IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
