Product Description

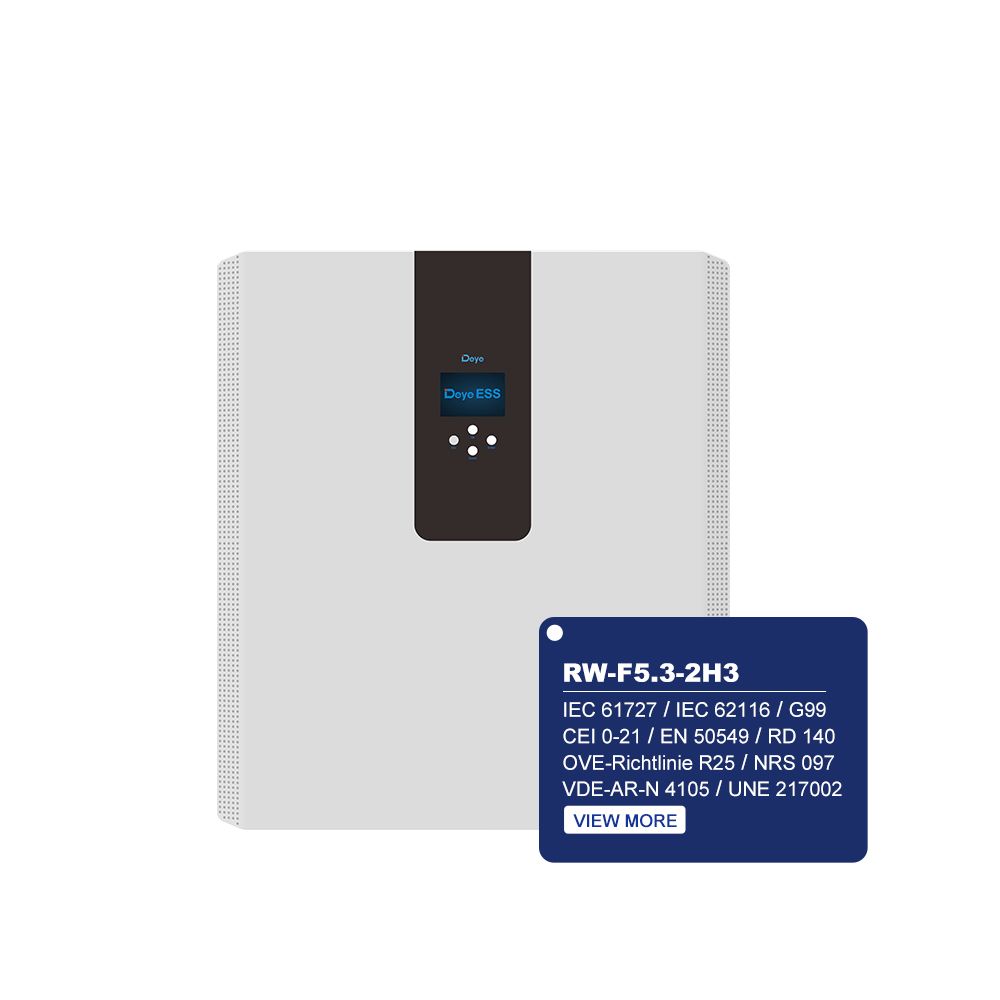

RW-F5.3-2H3

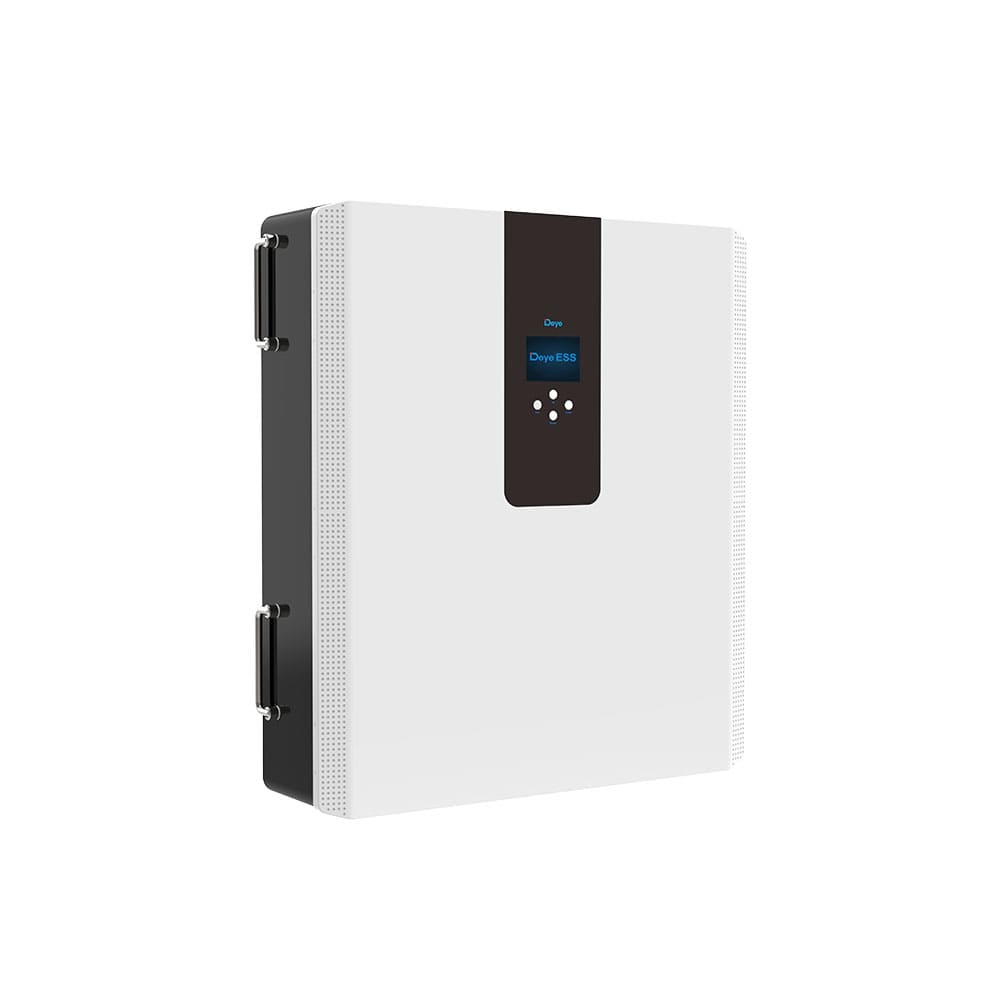

The RW-F5.3-2H3 is a powerful and compact all-in-one hybrid inverter and battery system with advanced smart features for reliable energy security and easy installation.

Description

*This is an all-in-one design that incorporates a 3kW hybrid inverter and a 5.3kWh LFP battery, ensuring both safety and a long lifespan.

*The system can be conveniently controlled via an app, PC, or touch-display, and features a leading smart application with peak-shaving, smart load, and AC couple functions.

*Its flat design makes it easy to mount on a wall, saving installation space and allowing for quick and easy installation.

*The system has a fast switching time of 4ms, ensuring energy security.

*Additionally, it is easy to expand and supports multiple parallel connections with up to 16 units (48kW/84.8kWh), and it supports the expansion of Deye 5.3kWh battery with up to 31 batteries and a maximum capacity of 164.3kWh.

*The built-in Intelligent BMS provides complete protection, and the system features natural cooling, IP65, and a wide temperature range of -20°C to 55°C.
