Description
Higher yields / Safe & Reliable / Smart / User-friendly

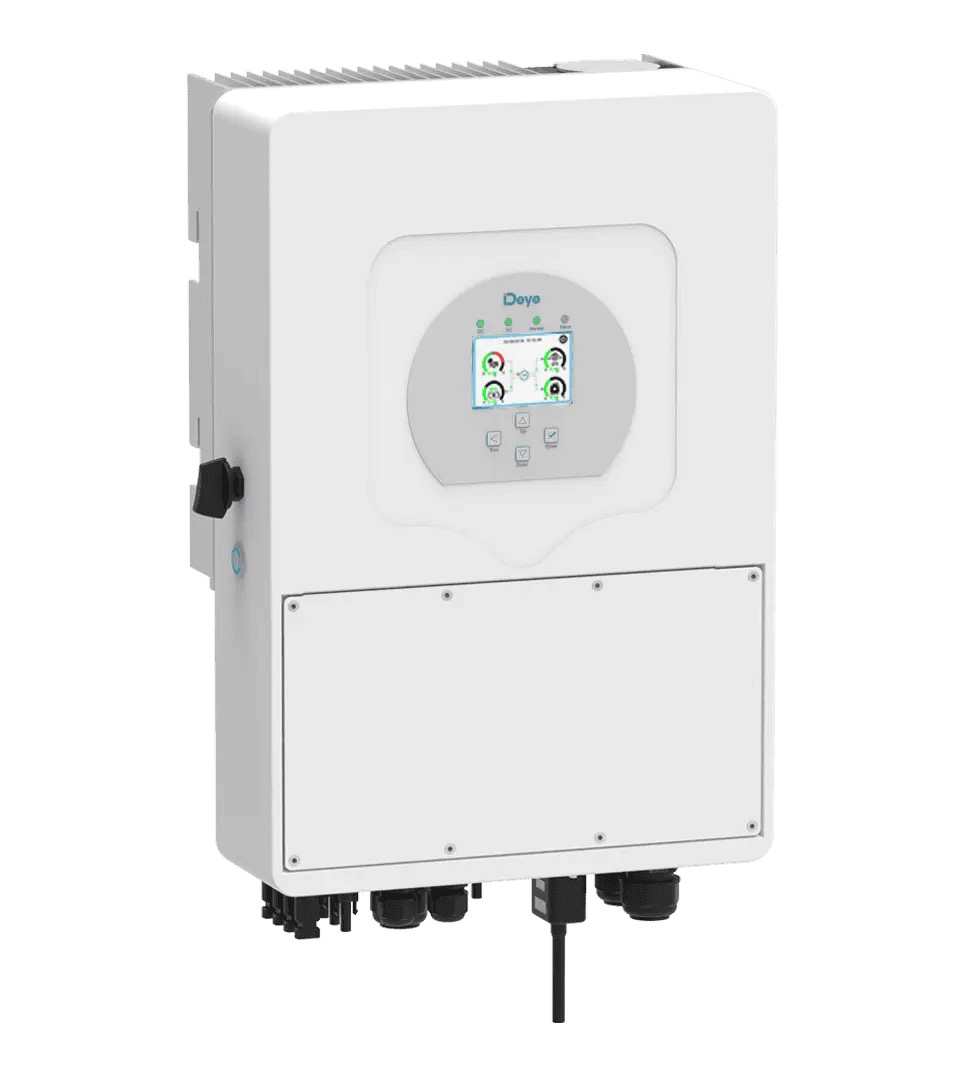

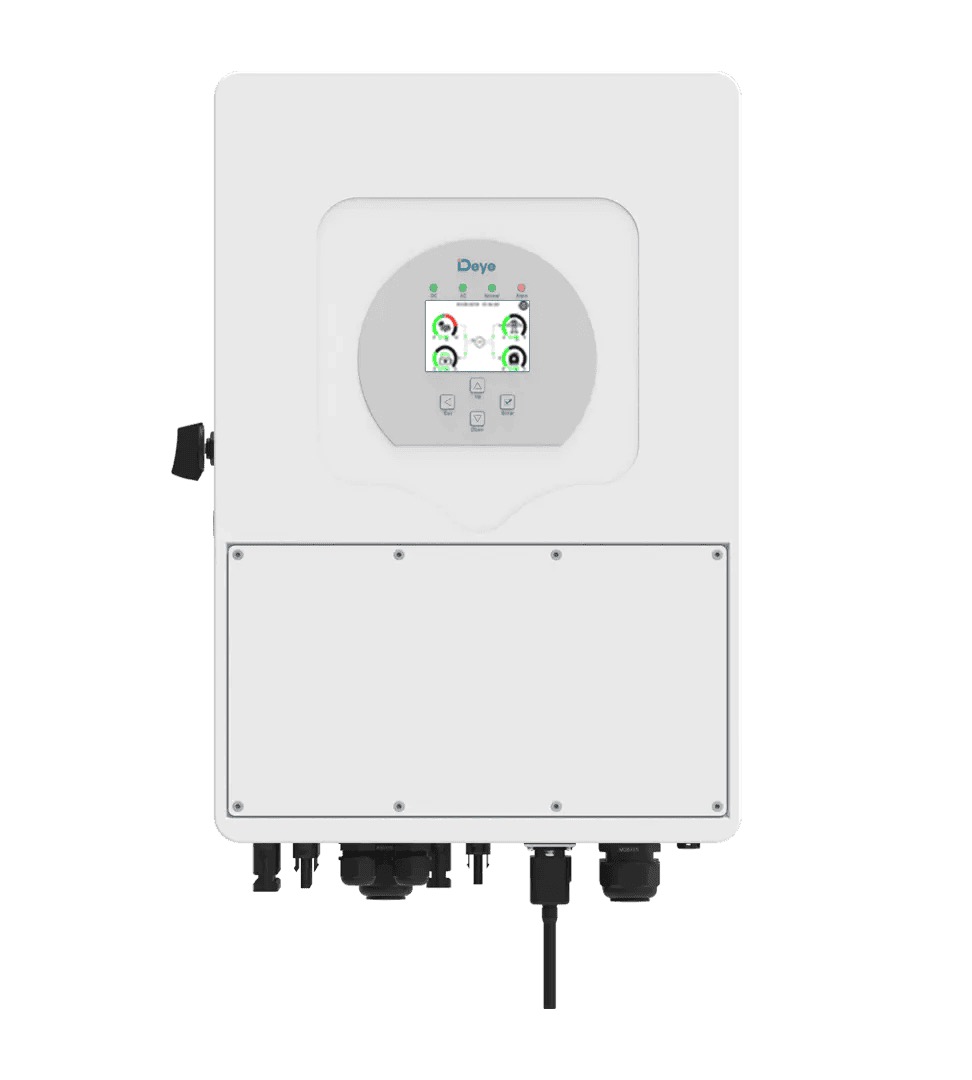

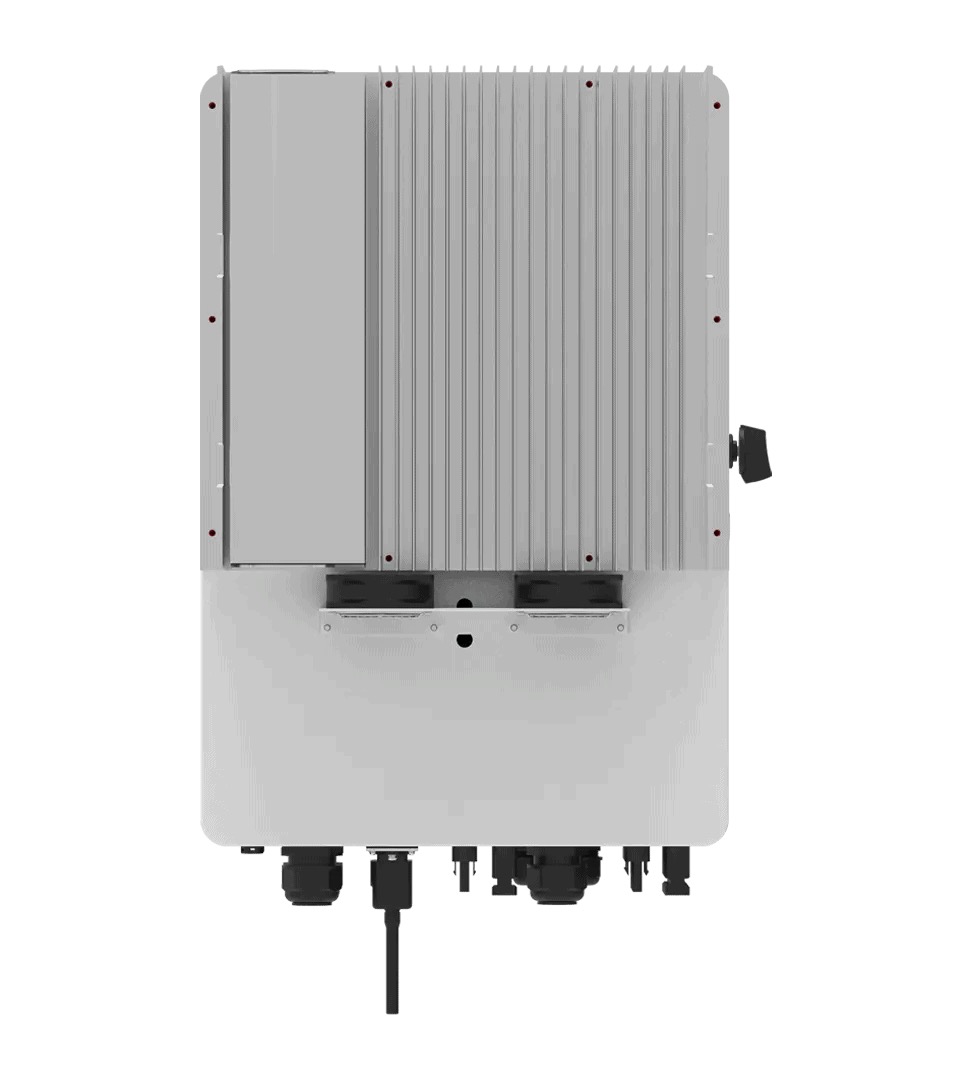

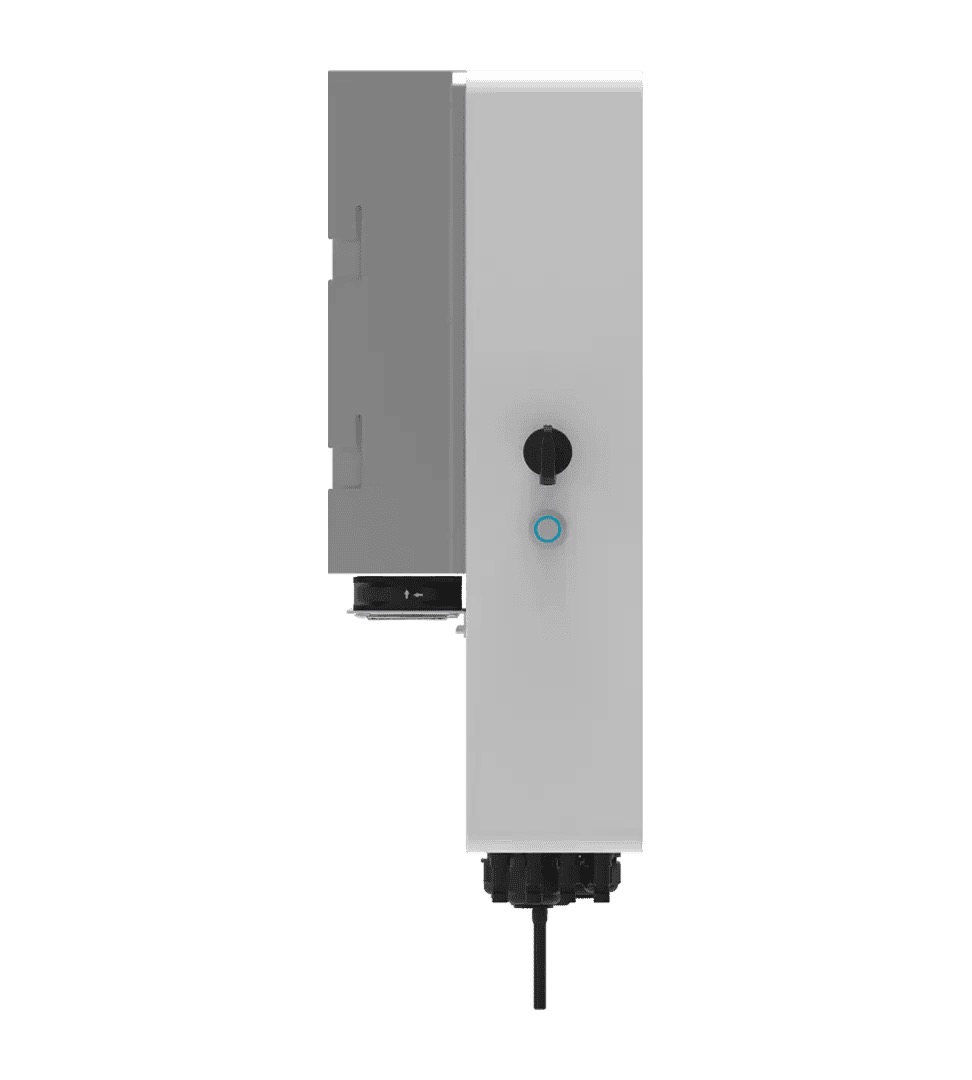

SUN 6/8/10/12/15/20K-SG01HP3-EU-AM2 is brand new three phase hybrid inverter with high voltage battery, ensuring the system safe and reliable. With compact design and high-power density, this series supports 1.3 DC/AC ratio, saving device investment. It supports three phase unbalanced output, extending the application scenarios. Equipped with CAN port (x2) BMS and parallel, x1 RS485 port for BMS, x1 RS232 port for remote control, and x1 DRM port, which makes the system smart and flexible.
Remotely shutdown function
Smart Monitoring Platform
Thanks to the smart monitoring platform, Deye full series inverter products support remotely shut down immediately when the accident occurs. Setting parameters and FW update remotely, which makes PV plant O&M easier.
- 100% unbalanced output, each phase; Max. output up to 50% rated power
- DC couple and AC couple to retrofit existing solar system
- Max. 10 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel
- Max. charging/discharging current of 37A
- High voltage battery, higher efficiency
- 6 time periods for battery charging/discharging
- Support storing energy from diesel generator
Technical Specifications
| Model | SUN-6K-SG01HP3-EU-AM2 | SUN-8K-SG01HP3-EU-AM2 | SUN-10K-SG01HP3-EU-AM2 | SUN-12K-SG01HP3-EU-AM2 | SUN-15K-SG01HP3-EU-AM2 |
SUN-20K-SG01HP3-EU-AM2 |
| Battery Input Data | ||||||
| Battery Type | Lead-acid or Lithium-ion | |||||
| Battery Voltage Range (V) | 150~800V | |||||
| Max. Charging Current (A) | 37 | |||||
| Max. Discharging Current (A) | 37 | |||||
|
Number of battery input
|
1 | |||||
| Charging Curve | 3 Stages / Equalization | |||||
| Charging Strategy for Li-Ion Battery | Self-adaption to BMS | |||||
| PV String Input Data | ||||||
| Max. DC Input Power (W) | 7800W | 10400W | 13000W | 15600W | 19500W | 26000W |
| Max. DC Input Voltage (V) | 1000 | |||||
| Start-up Voltage (V) | 150V | |||||
| MPPT Range (V) | 200V-850V | |||||
| Full Load DC Voltage Range (V) | 195-850 | 260-850 |
325-850
|
340-850
|
423-850
|
500-850
|
| PV Input Current (A) | 20A+20A | 26A+20A | 26A+26A | |||
| Max. PV ISC (A) | 23A+23A | 32A+23A | 32A+32A | |||
| Number of MPPT / Strings per MPPT | 2/1 | 2/2+1 | 2/2 | |||
| AC Output Data | ||||||
| Rated AC Output and UPS Power (W) | 6000W | 8000W | 10000W | 12000W | 15000W | 20000W |
| Max. AC Output Power (W) | 6600W | 8800W | 11000W | 13200W | 16500W | 22000W |
| Peak Power (off grid) | 1.5 times of rated power, 10 S | |||||
| AC Output Rated Current (A) | 9.1 | 12.2 | 15.2 | 18.2 | 22.8 | 30.3 |
| Max. AC Current (A) | 13 | 18 | 22 | 25 | 30 | 35 |
| Max. Continuous AC Passthrough (A) | 80A | |||||
| Output Frequency and Voltage | 50/60Hz;3L/N/PE 220/380Vac，230/400Vac | |||||
| Grid Type | Three Phase | |||||
| DC injection current (mA) | <0.5%1n | |||||
| Efficiency | |
| Max. Efficiency | 97.60% |
| Euro Efficiency | 97.00% |
| MPPT Efficiency | 99.90% |
| Protection | |
| PV Input Lightning Protection | Integrated |
| Anti-islanding Protection | Integrated |
| PV String Input Reverse Polarity Protection | Integrated |
| Insulation Resistor Detection | Integrated |
| Residual Current Monitoring Unit | Integrated |
| Output Over Current Protection | Integrated |
| Output Shorted Protection | Integrated |
| Surge protection | Integrated |
| Output Over Voltage Protection | DC Type II / AC Type II |
| Certifications and Standards | |
| Grid Regulation | CEI 0-21, VDE-AR-N 4105, NRS 097, IEC 62116, IEC 61727, G99, G98, VDE 0126-1-1, RD 1699, C10-11 |
| Safety EMC / Standard | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 |
| General Data | |
| Operating Temperature Range (℃) | -40~60℃, >45℃ Derating |
| Cooling | Smart cooling |
| Noise (dB) | <45 dB |
| Communication with BMS | RS485; CAN |
| Weight (kg) | 26 |
| Size (mm) | 434W×645H×245D |
| Protection Degree | IP65 |
| Installation Style | Wall-mounted |
| Warranty | 5 years |
