Description
Higher yields / Safe & Reliable / Smart / User-friendly

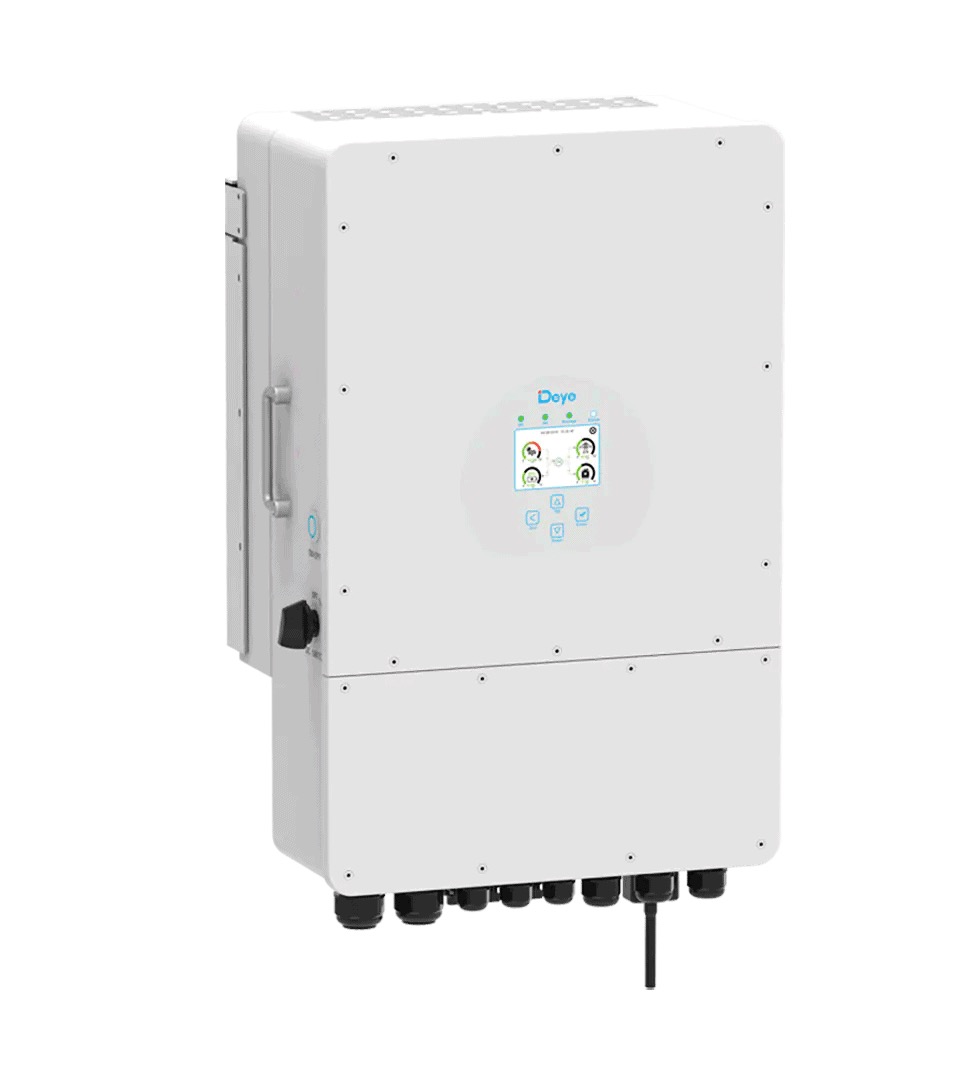

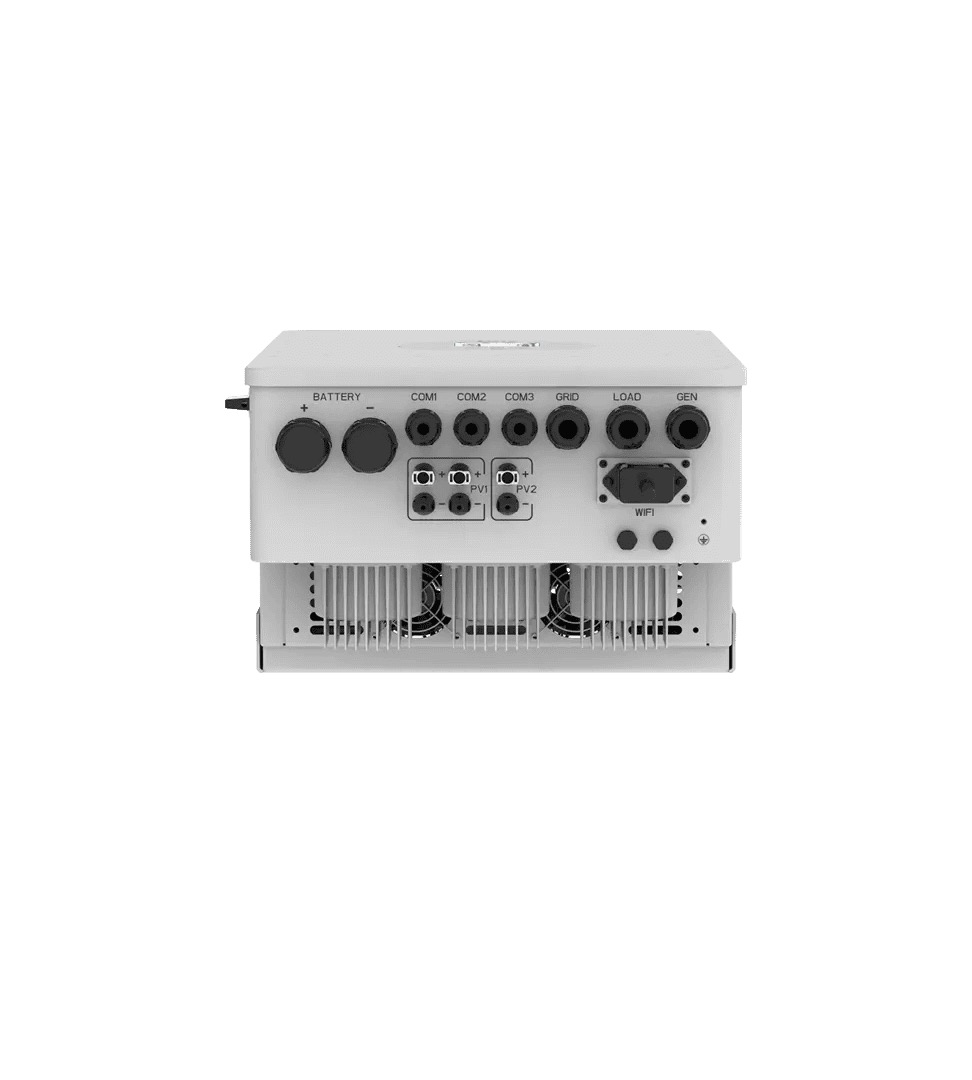

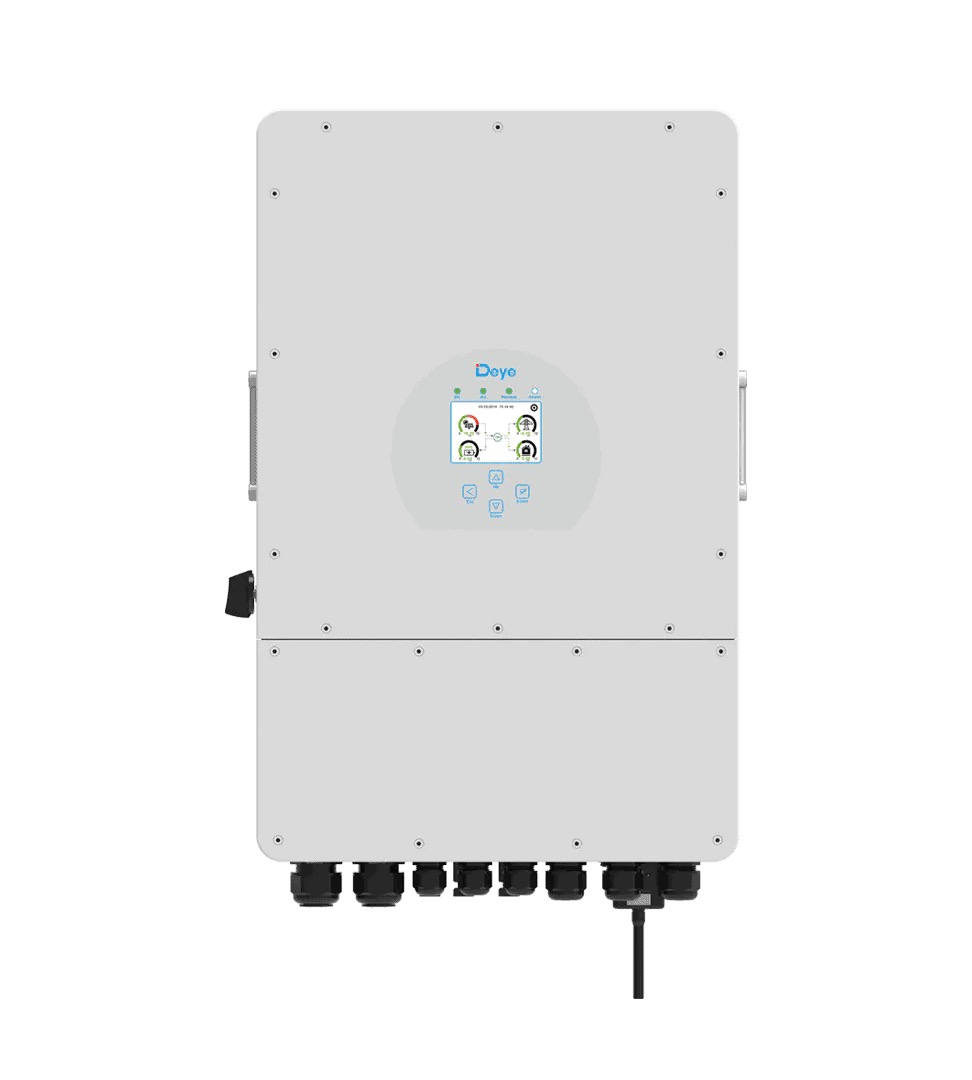

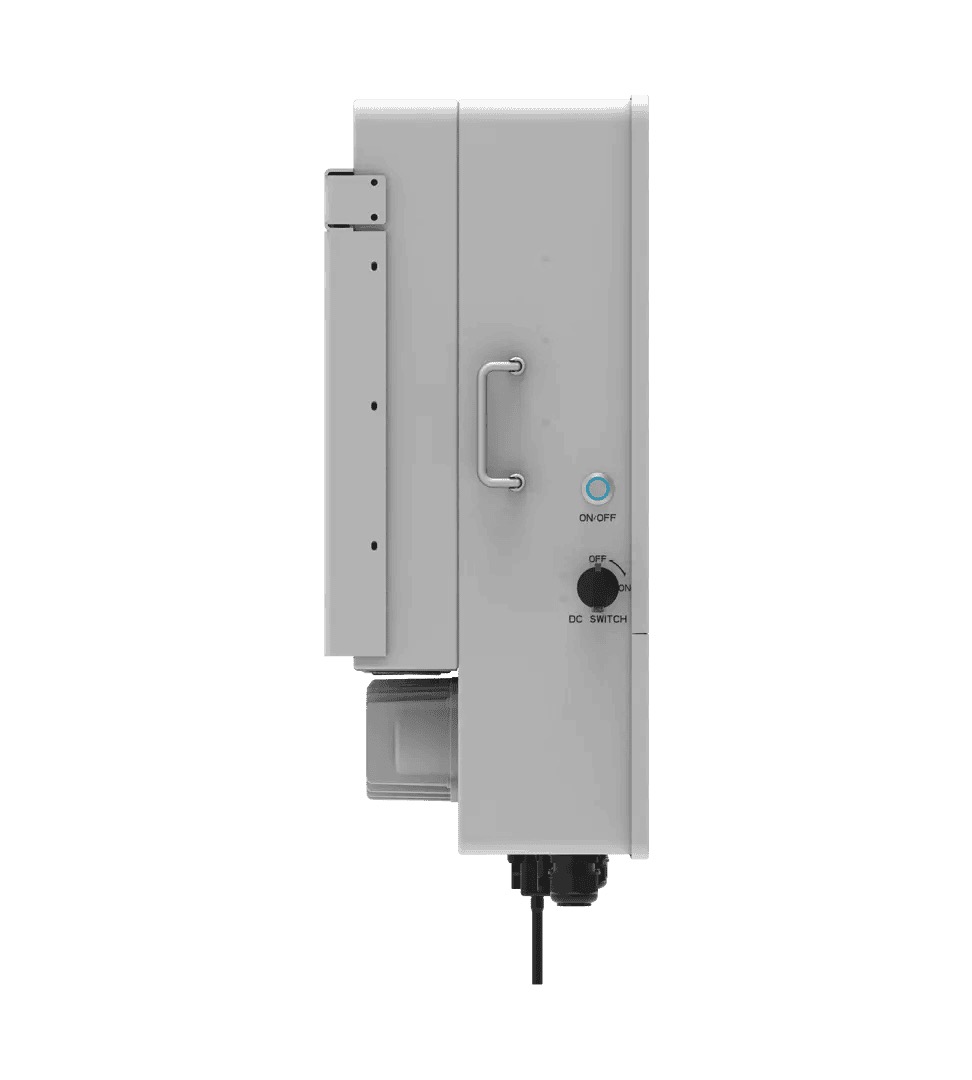

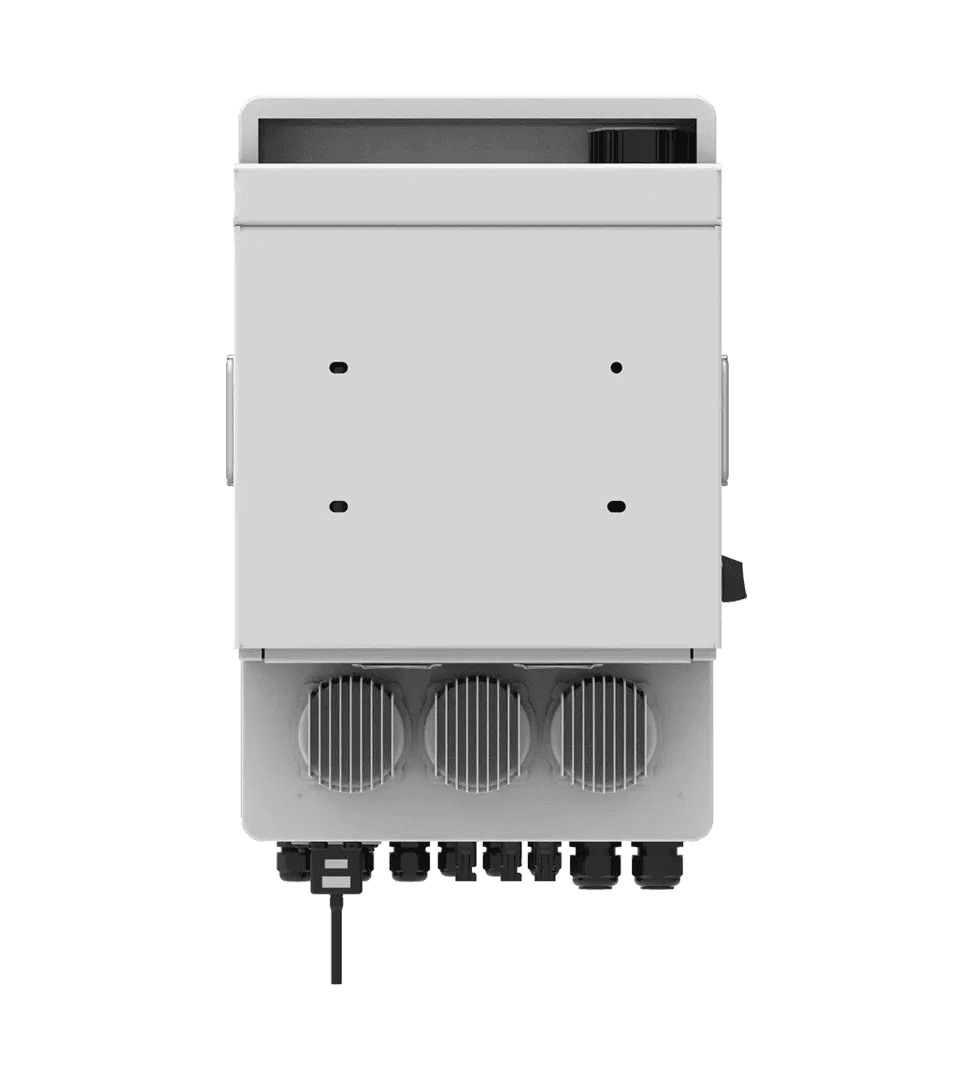

SUN 5/6/8/10/12K-SG is brand new three phase hybrid inverter with low battery voltage of 48V, ensuring the system safe and reliable. With compact design and high-power density, this series supports 1.3 DC/AC ratio, saving device investment. It supports three phase unbalanced output, extending the application scenarios. Equipped with CAN port (x2) BMS and parallel, x1 RS485 port for BMS, x1 RS232 port for remotely control, x1 DRM port, which makes the system smart and flexible.
It is equipped with RS485 / CAN port for battery communication
Remotely shutdown function
Smart Monitoring Platform
Thanks to the smart monitoring platform, Deye full series inverter products support remotely shut down immediately when the accident occurs. Setting parameters and FW update remotely, which makes PV plant O&M easier.
-
48V low voltage battery, transformer isolation design
-
6 time periods for battery charging/discharging
-
Max. charging/discharging current of 240A
-
Max.10pcs parallel
-
DC couple and AC couple to retrofit existing solar system
-
Support storing energy from diesel generator
-
Supports three phase unbalanced output
-
Unique Smart Load application and Grid peak shaving function
Technical Specifications
|
Model
|
SUN-5K-SG04LP3-EU
|
SUN-6K-SG04LP3-EU
|
SUN-8K-SG04LP3-EU
|
SUN-10K-SG04LP3-EU
|
SUN-12K-SG04LP3-EU
|
|
Battery Input Data
|
|
Battery Type
|
Lead-acid or Lithium-ion
|
|
Battery Voltage Range (V)
|
40~60V
|
|
Max. Charging Current (A)
|
120A
|
150A
|
190A
|
210A
|
240A
|
|
Max. Discharging Current (A)
|
120A
|
150A
|
190A
|
210A
|
240A
|
|
Charging Curve
|
3 Stages / Equalization
|
|
External Temperature Sensor
|
Yes
|
|
Charging Strategy for Li-Ion Battery
|
Self-adaption to BMS
|
|
PV String Input Data
|
|
Max. DC Input Power (W)
|
6500W
|
7800W
|
10400W
|
13000W
|
15600W
|
|
Rated PV Input Voltage (V)
|
550V(160V～800V）
|
|
Start-up Voltage (V)
|
160V
|
|
MPPT Range (V)
|
200V-650V
|
|
Full Load DC Voltage Range (V)
|
350V-650V
|
|
PV Input Current (A)
|
13A+13A
|
26A+13A
|
|
Max. PV ISC (A)
|
17A+17A
|
34A+17A
|
|
Number of MPPT / Strings per MPPT
|
2/1+1
|
2/2+1
|
|
AC Output Data
|
|
Rated AC Output and UPS Power (W)
|
5000W
|
6000W
|
8000W
|
10000W
|
12000W
|
|
Max. AC Output Power (W)
|
5500W
|
6600W
|
8800W
|
11000W
|
13200W
|
|
Peak Power (off grid)
|
2 times of rated power, 10 S
|
|
AC Output Rated Current (A)
|
7.6
|
9.1
|
12.1
|
15.2
|
18.2
|
|
Max. AC Current (A)
|
11.4
|
13.6
|
18.2
|
22.7
|
27.3
|
|
Max. Continuous AC Passthrough (A)
|
45A
|
|
Output Frequency and Voltage
|
50/60Hz;3L/N/PE 220/380Vac，230/400Vac
|
|
Grid Type
|
Three Phase
|
|
Current Harmonic Distortion
|
THD<3% (Linear load<1.5%)
|
|
Efficiency
|
|
Max. Efficiency
|
97.60%
|
|
Euro Efficiency
|
97.00%
|
|
MPPT Efficiency
|
99.90%
|
|
Protection
|
|
PV Input Lightning Protection
|
Integrated
|
|
Anti-islanding Protection
|
Integrated
|
|
PV String Input Reverse Polarity Protection
|
Integrated
|
|
Insulation Resistor Detection
|
Integrated
|
|
Residual Current Monitoring Unit
|
Integrated
|
|
Output Over Current Protection
|
Integrated
|
|
Output Shorted Protection
|
Integrated
|
|
Output Over Voltage Protection
|
Integrated
|
|
Surge protection
|
DC Type II / AC Type II
|
|
Certifications and Standards
|
|
Grid Regulation
|
CEI 0-21, VDE-AR-N 4105, NRS 097, IEC 62116, IEC 61727, G99, G98, VDE 0126-1-1, RD 1699, C10-11
|
|
Safety EMC / Standard
|
IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
|
|
General Data
|
|
Operating Temperature Range (℃)
|
-45~60℃, >45℃ Derating
|
|
Cooling
|
Smart cooling
|
|
Noise (dB)
|
<45 dB
|
|
Communication with BMS
|
RS485; CAN
|
|
Weight (kg)
|
33.6
|
|
Size (mm)
|
422W×699.3H×279D
|
|
Protection Degree
|
IP65
|
|
Installation Style
|
Wall-mounted
|
|
Warranty
|
5 years
|
