Deye High Voltage 60KWH ESS GE-F60(New)

  • Category: Deye
  • Parameter
    •

Product Description

GE-F60(New)

  • Rated power operation: the maximum temperature of the battery is less than 40°C.
  • Suitable for high-rate cyclic charging and discharging scenarios.
  • Combustible gas, smoke, and temperature detection; system active exhaust; and fire alarm.
  • EMS, hybrid inverter, and BMS integrated technology; power supply redundancy design; supports black start function, off-grid operation, etc.
  • Lithium Iron Phosphate (LFP) Battery: The battery pack and system adopt an aerosol fire extinguishing solution.
  • Supports battery expansion, with a maximum capacity of 360 kWh.
SKU: GE-F60(New)Category


Description

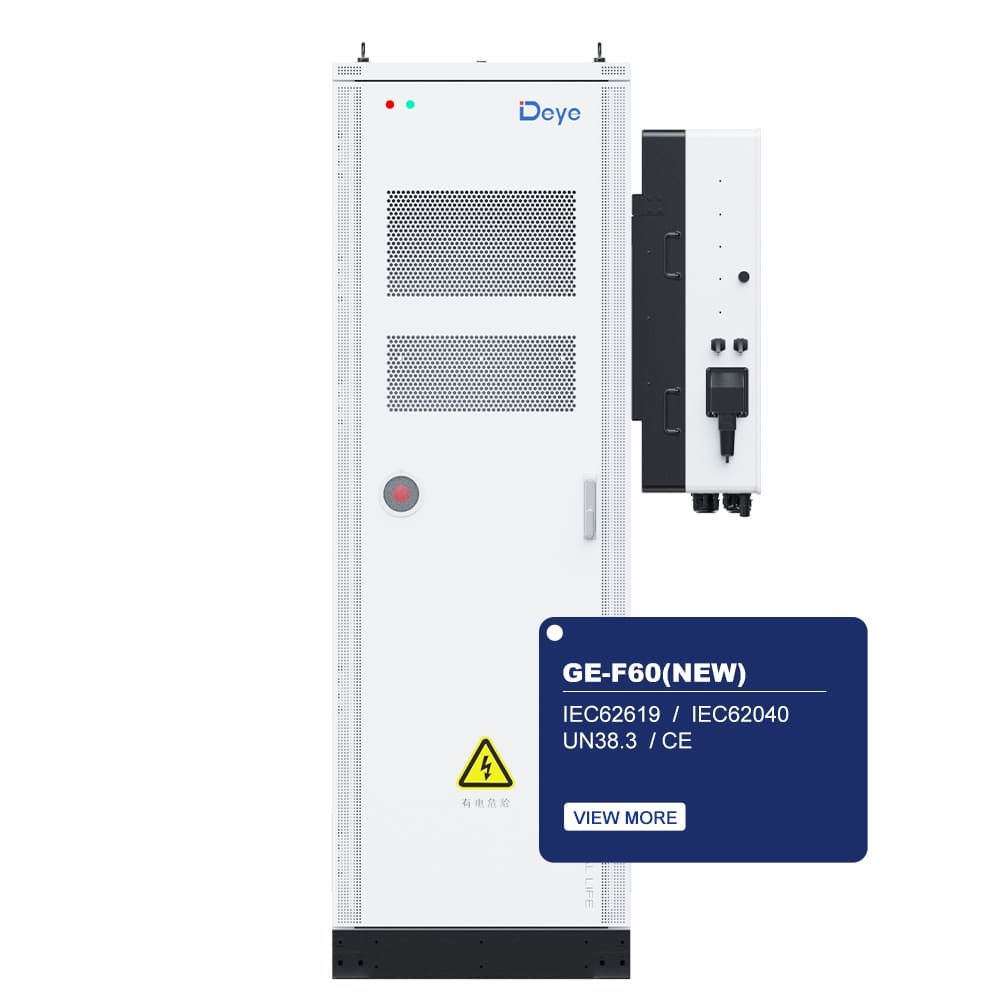

Introducing the Deye GE-F60(New), a state-of-the-art Energy Storage System (ESS) battery designed for high-performance and reliability. This advanced lithium iron phosphate (LiFePO4) battery pack offers a robust solution for various energy storage applications.

Key Features:

  • High-capacity 61.44 kWh system energy with 55.29 kWh usable energy
  • Modular design with 12 battery modules in series, each providing 5.12 kWh and 100 Ah capacity
  • Wide operating voltage range of 480-700 V with a nominal voltage of 614.4 V
  • Supports high charge/discharge rates: 50 A recommended, 100 A nominal, and 125 A peak discharge current
  • Integrated EMS, hybrid inverter, and BMS technology for enhanced performance and safety
  • Expandable up to 360 kWh for larger energy storage needs

Safety and Protection:

  • Advanced aerosol fire suppression system for enhanced safety
  • Combustible gas, smoke, and temperature detection with active exhaust and fire alarm
  • IP55-rated enclosure for protection against dust and water ingress
  • CE, IEC62619, IEC62040, and UN38.3 certified for quality and safety

Performance and Durability:

  • Wide operating temperature range: 0-55°C for charging and -20-55°C for discharging
  • Long cycle life: ≥6000 cycles at 90% DOD, 0.5C charge/discharge, and 25±2°C
  • 10-year warranty for peace of mind
  • Suitable for high-rate cyclic charging and discharging scenarios

Applications and Scalability:

  • Ideal for various applications, including off-grid operation, power supply redundancy, and black start function
  • Expandable up to 50 kW / 360 kWh for single systems and 500 kW / 600 kWh for parallel systems
  • AC side of the inverter can be paralleled with up to ten machines for larger installations

The Deye GE-F60(New) ESS battery is a reliable, high-performance, and safe energy storage solution suitable for a wide range of applications. With its advanced features, modular design, and expandability, this battery pack is an excellent choice for those seeking a robust and future-proof energy storage system.
