Product Description

Higher yields / Safe & Reliable / Smart / User-friendly

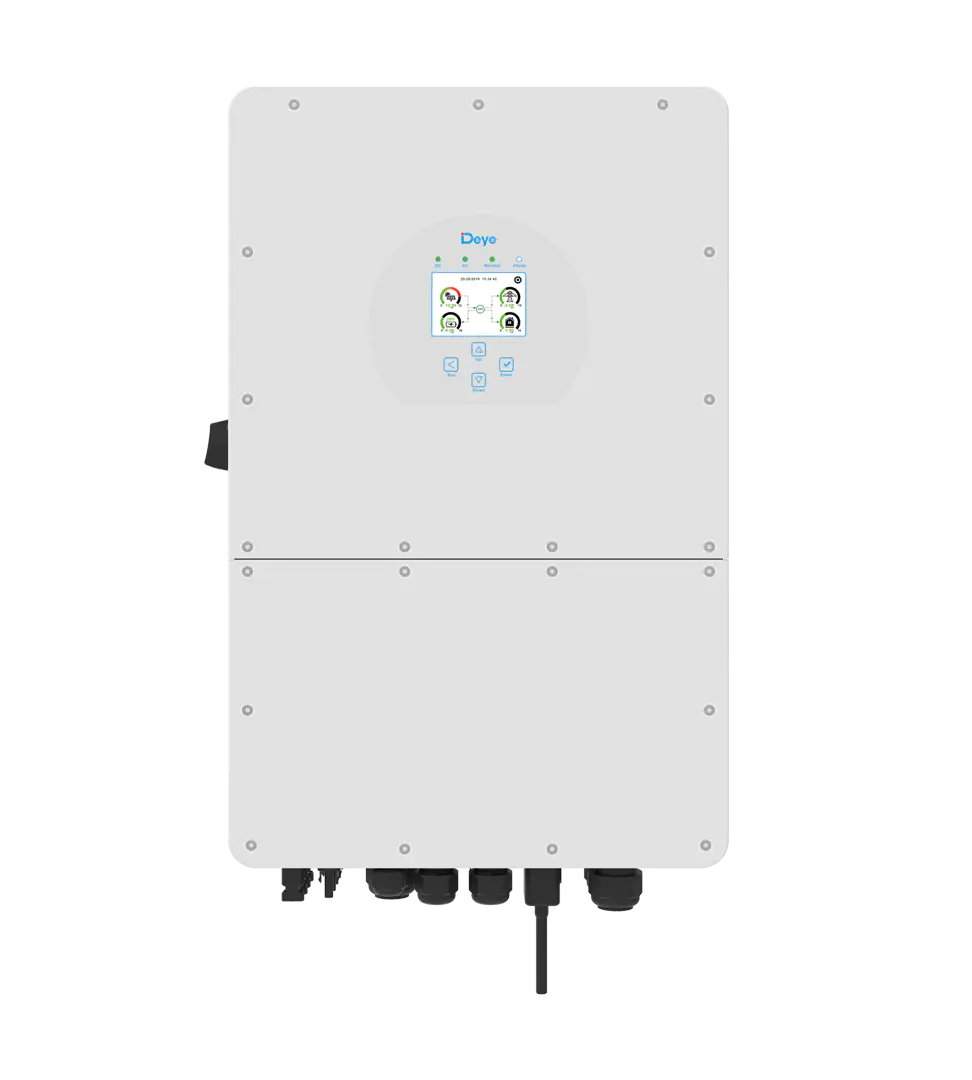

SUN 5/6/8/10/12/15/20/25K-SG01HP3-EU-AM2 is a brand new series of three phase hybrid inveter supporting 160-700V HV Battery, ensuring system efficiency and less heat dissipation. With compact design and high-power density, this series supports 1.3 DC/AC ratio, saving device investment. It supports three phase unbalanced output, extending the application scenarios.

• 100% unbalanced output, each phase

• AC couple to retrofifit existing solar system

• *Max. 10 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel

• Max. charging/discharging current of 50A

• High voltage battery, higher effificiency

• 6 time periods for battery charging/discharging

• Support storing energy from diesel generator

  ---
