Dyness A48100 48V 100Ah Rack/Wall-Mounted LiFePO4 Battery

  • Category: Dyness
  • Parameter
    •

Product Description

Home Energy Storage Systems - Low voltage

A48100

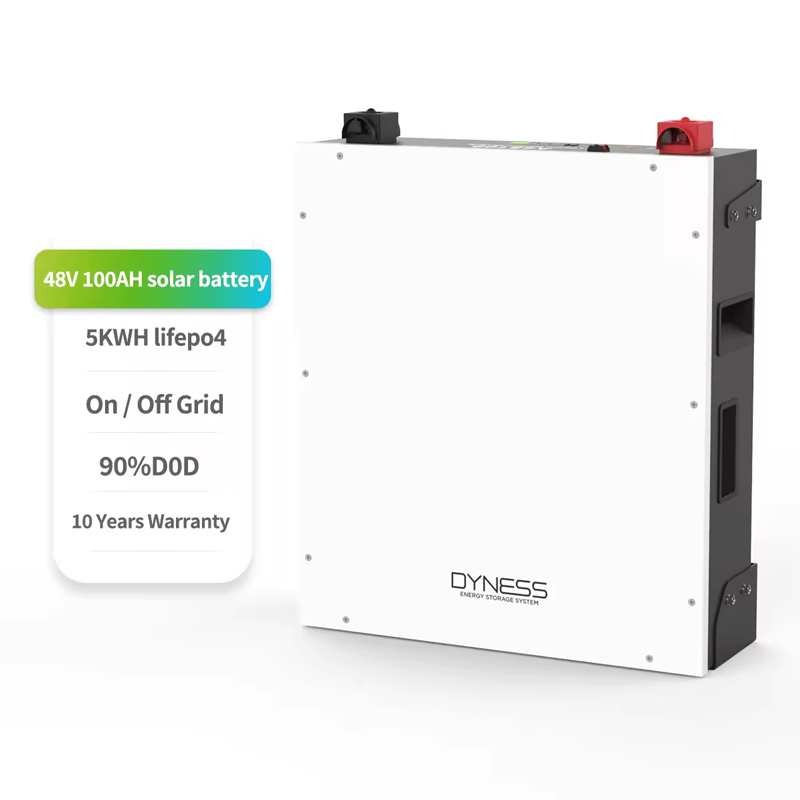

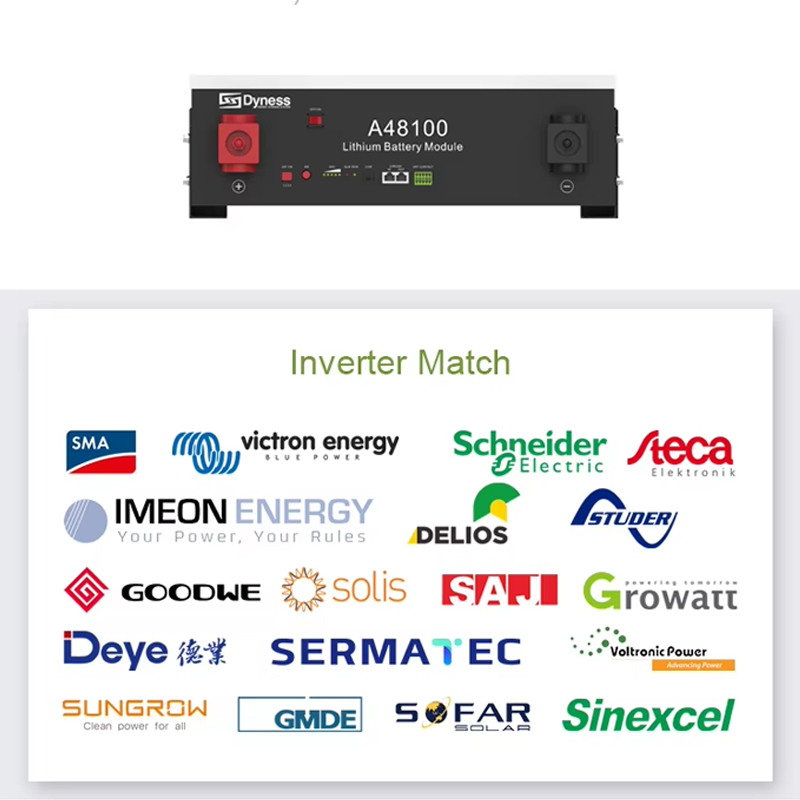

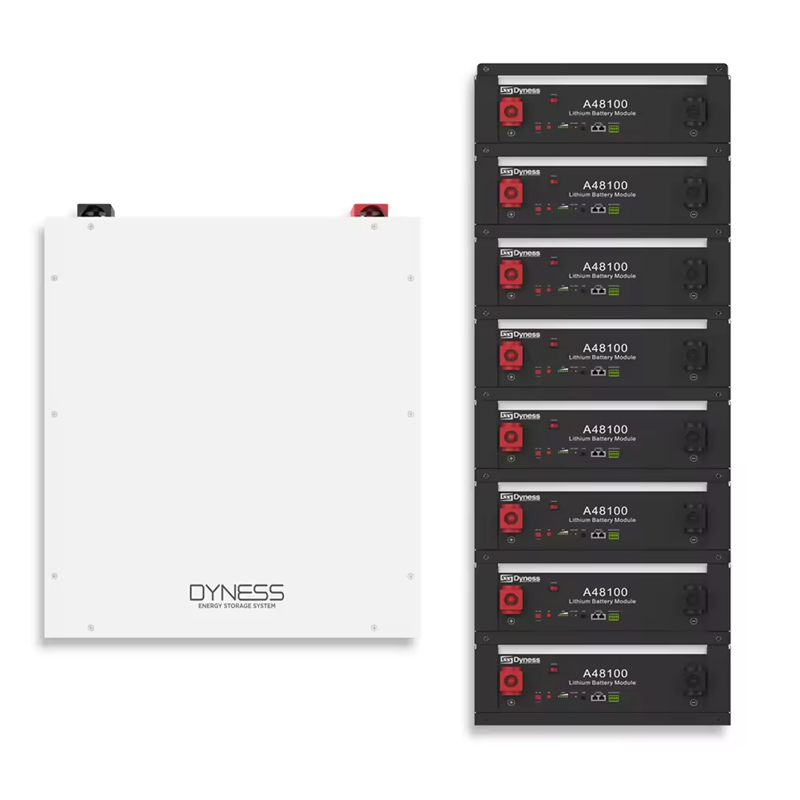

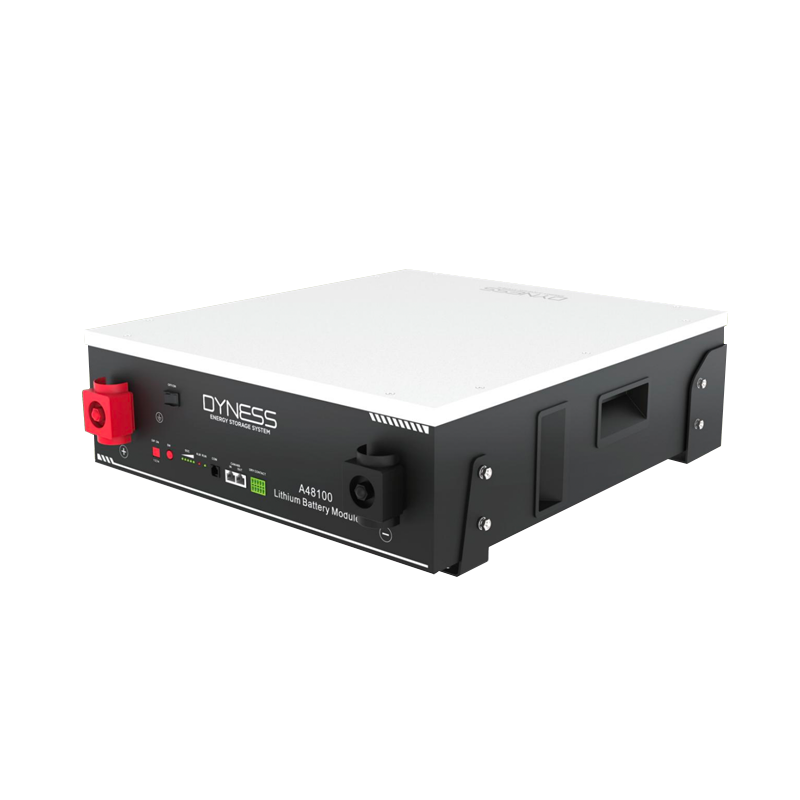

This 4,8kWh LFP module supports both floor- and wall-mounted installations. It is designed with OTA function for remote update and monitoring. Up to 30 modules can be connected in parallel, meeting the needs of more users and enabling flexible expansion.

A48100
Battery TypeLiFePO4
Nominal Battery Energy4.8 kWh
Nominal Capacity100Ah
Nominal Voltage48V
Operating Voltage42 ~ 54V
Recommended C Rate0.5C
Recommended Charge/Discharge Current50A
Max. Power Charge/Discharge Current75A
Peak Power Charge/Discharge Current100A (15s)
Depth of Discharge (DOD)90%
Net Weight45kg
Dimension[W*D*H]504*597*155 mm
Charging Temp. Range0~55℃
Discharging Temp. Range-20~55℃
CommunicationCAN/RS485/RS232
Cycle Life[1]≥6000 Cycles
Protection LevellP20
Expansionup to 30 units in parallel
ProsCan be used in both off-grid and hybrid setups, compact design
Certification & Safety StandardUN38.3/CE-EMC/IEC62619/IEC60730/CEI-021/GOST-R/UKCA

[1]Test conditions: 0.2C Charging/Discharging, @25℃,95% DOD
