Dyness B4850 48V 50Ah Rack/Wall-Mounted LiFePO4 Battery

  1. Home
  2. Energy Storage System
  3. Dyness

Dyness B4850 48V 50Ah Rack/Wall-Mounted LiFePO4 Battery

  • Category: Dyness
  • Parameter
    •

Product Description

Home Energy Storage Systems - Low voltage

Popular items

B4850

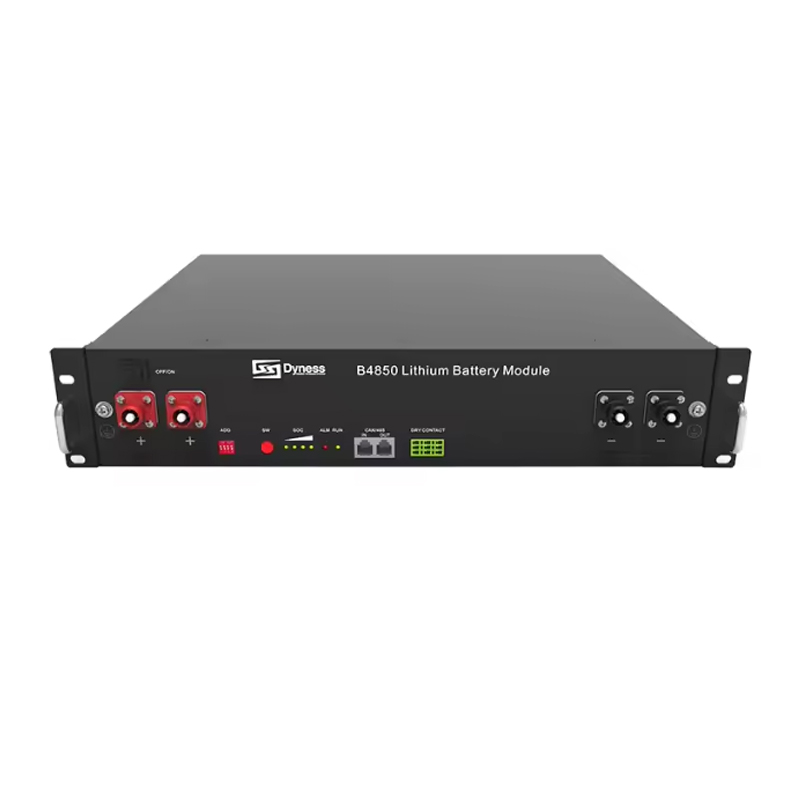

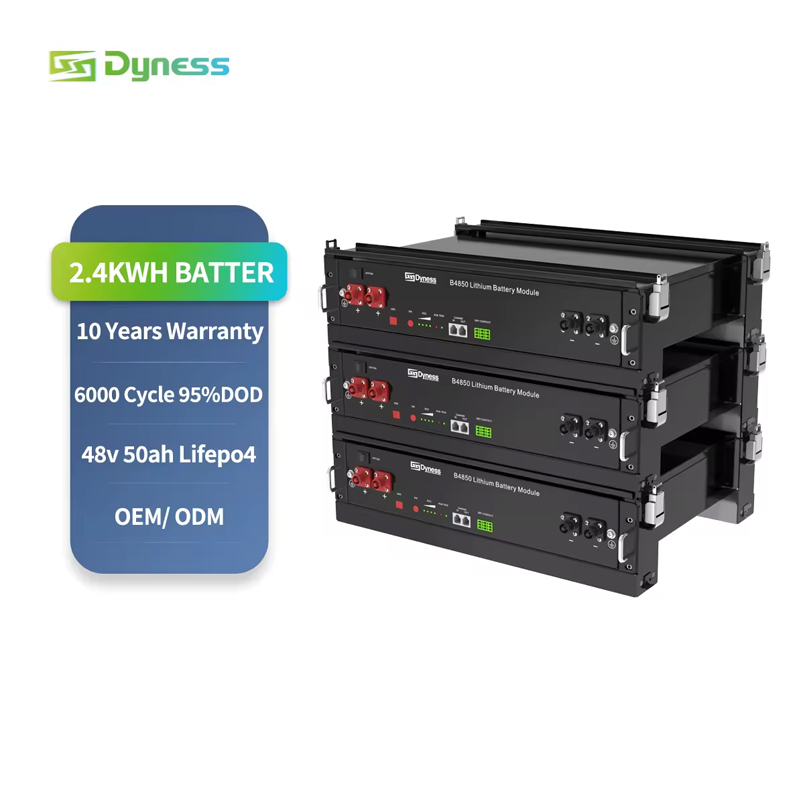

The DYNESS battery B4850 module is widely used in energy storage sector. It adopts modular design and can be used for residential applications. The reliable LiFePO4 technology ensures maximum safety and a longer life cycle.

ModelB4850
Battery TypeLiFePO4
Nominal Battery Energy2.4 kWh
Nominal Capacity50Ah
Nominal Voltage48V
Operating Voltage42 ~ 54.75V
Recommended C Rate0.5C
Recommended Charge/Discharge Current25A
Max. Power Charge/Discharge Current50A
Peak Power Charge/Discharge Current55A (Protect)
Depth of Discharge (DOD)90%
Net Weight22 kg
Dimension[W*D*H]480*405*90 mm
Charging Temp. Range0~55℃
Discharging Temp. Range-20~55℃
CommunicationCAN/RS485
Cycle Life[1]≥6000 Cycles
Protection LevellP20

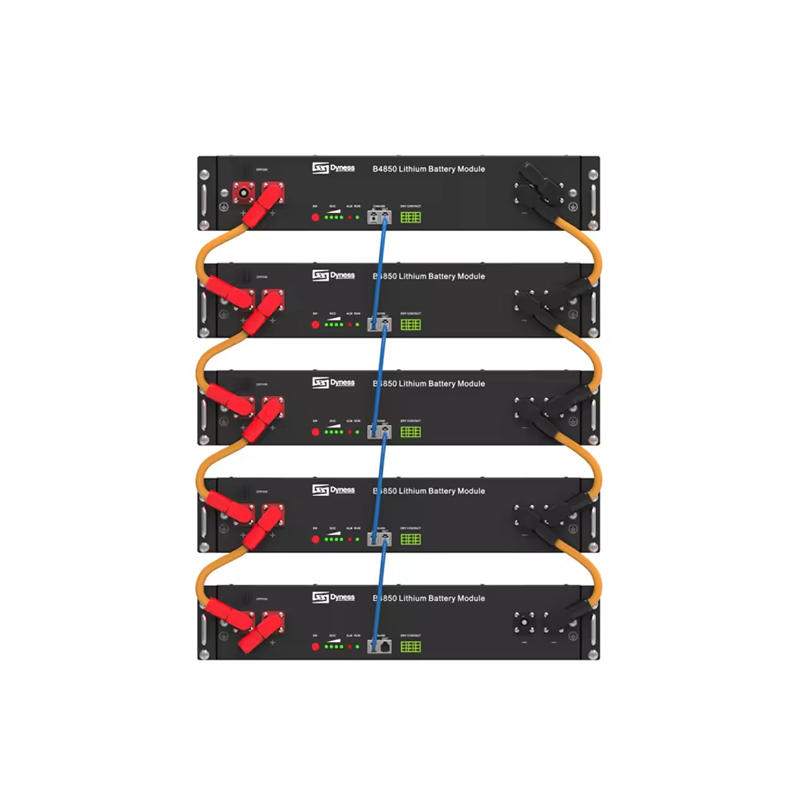

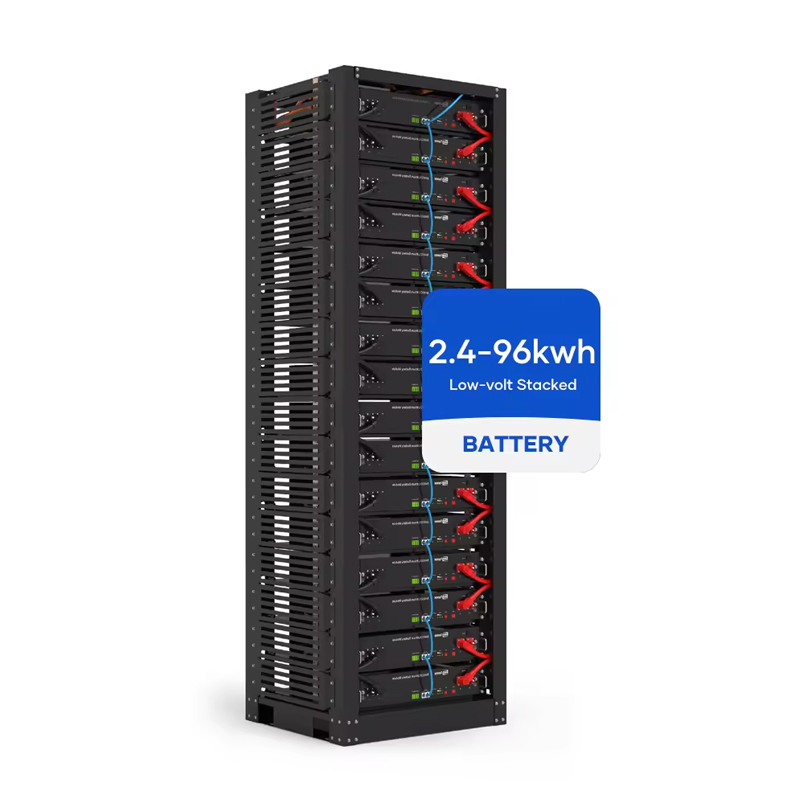

ExpansionUp to 40 units in parallel
ProsCan be used in both off-grid and hybrid setups, compact design
Certification & Safety StandardUN38.3/CE-EMC/IEC62619/IEC62040/CEC Accredited/CEI-021/UL1973/REACH/ROHS/UKCA/GOST-R

[1]Test conditions: 0.2C Charging/Discharging, @25℃, 95% DOD
