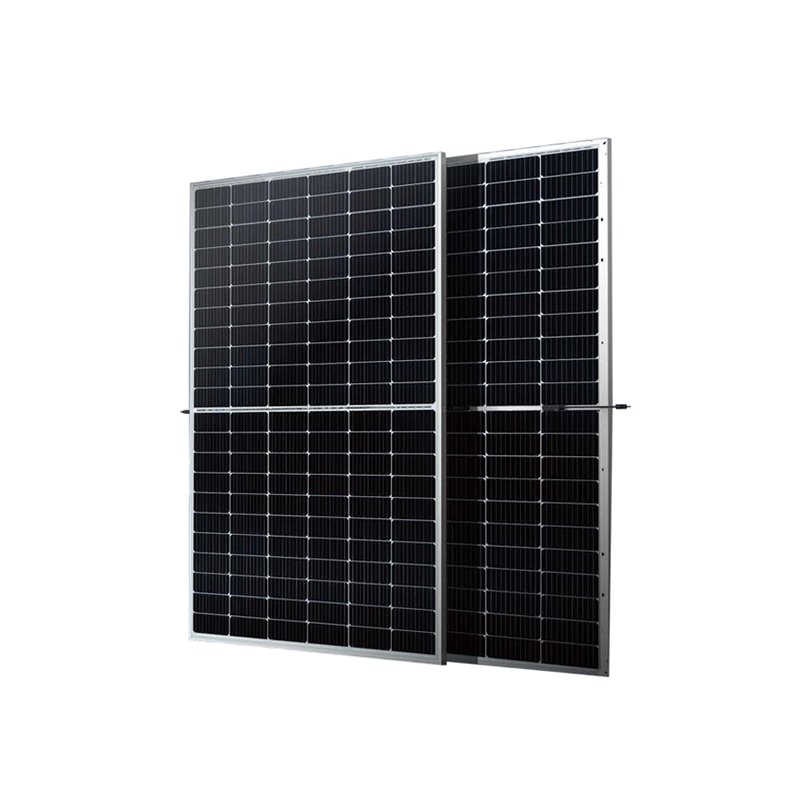

650 - 670W Bifacial Dual Glass 12BB Half-cut Mono Perc 132-cell

  1. Home
  2. OEM Solar Panels

650 - 670W Bifacial Dual Glass 12BB Half-cut Mono Perc 132-cell

  • Category: OEM Solar Panels
  • Parameter
    •

Product Description

POWER RANGE: 650 - 670W

MAXIMUM EFFICIENCY:  21.6%

ELECTRICAL CHARACTERISTICS

Testing Condition

STC

NMOT

STC

NMOT

STC

NMOT

STC

NMOT

STC

NMOT

Maximum Power (Pmax/W)

650

492

655

495

660

499

665

503

670

507

Operating Voltage (Vmpp/V)

37.8

35.4

38.0

35.6

38.2

35.8

38.4

36.0

38.6

36.1

Operating Current (Impp/A)

17.20

13.88

17.24

13.91

17.28

13.95

17.32

13.99

17.36

14.02

Open-Circuit Voltage (Voc/V)

45.4

42.9

45.6

43.1

45.8

43.3

46.0

43.5

46.2

43.7

Short-Circuit Current (Isc/A)

18.29

14.74

18.33

14.77

18.37

14.81

18.41

14.84

18.45

14.87

Module Efficiency (%)

20.90

20.90

21.10

21.10

21.30

21.30

21.40

21.40

21.60

21.60

STC: Irradiance 1000W/m², Spectra at AM1.5, Module Temperature 25℃. Power output tolerance: 0~+5W, Test uncertainty for Pmax：±3%

NMOT：Irradiance 800W/m², Spectra at AM1.5, Ambient Temperature 20℃, Wind speed 1m/s

REAR SIDE POWER GAIN(REFERENCE TO 655W FRONTI）

Pmax gain

5%
10%
15%
20%
25%

Pmax/W

688
721
753
786
819

Vmpp/V

38.00
38.0038.0038.0038.00

Impp/A

18.10
18.96
19.83
20.69
21.55

Voc/V

45.40

45.40

45.40

45.40

45.40

Isc/A

19.22
20.13
21.05
21.96
22.88



MECHANICAL CHARACTERISTICS

Cell Type

Monocrystalline210*210mm

No. of Cells

132 (6*22)

Module Dimensions

2384*1303*35mm (93.86*51.30*1.38inches)

Weight

38.5kg (84.88lbs.)

Front Glass

2.0mm AR Coating Semi-tempered Glass

Back Glass

2.0mm Glazed Semi-tempered Glass

Frame

Anodized Aluminium Alloy

Junction Box

IP68, 3 Bypass Diodes

Output Cables

4mm² (IEC), 12AWG(UL)

300mm in Length or Customized Length

Connectors

T01/LJQ-3-CSY/MC4/MC4-EVO2

APPLICATION CONDITIONS

Maximun System Voltage

1500V/DC

Operating Temperature

-40°C~+85°C

Maximun Series Fuse

35A

Safety Protection Class

ClassⅡ

Mechanical Load

Front side 5400Pa,Back side 2400Pa

Refer. Bifaciality Factor

70%±5%

TEMPERATURE CHARACTERISTICS

Temperature Coefficient of Pmax

-0.34%/°C

Temperature Coefficient of Voc

-0.25%/°C

Temperature Coefficient of Isc

+0.046%/°C

Nominal Module Operating

Temperature(NMOT)

43±2°C

PACKING CONFIGURATION

Pieces Per Pallet

31

31(USA)

Pieces Per Container(40'HQ)

527

465
