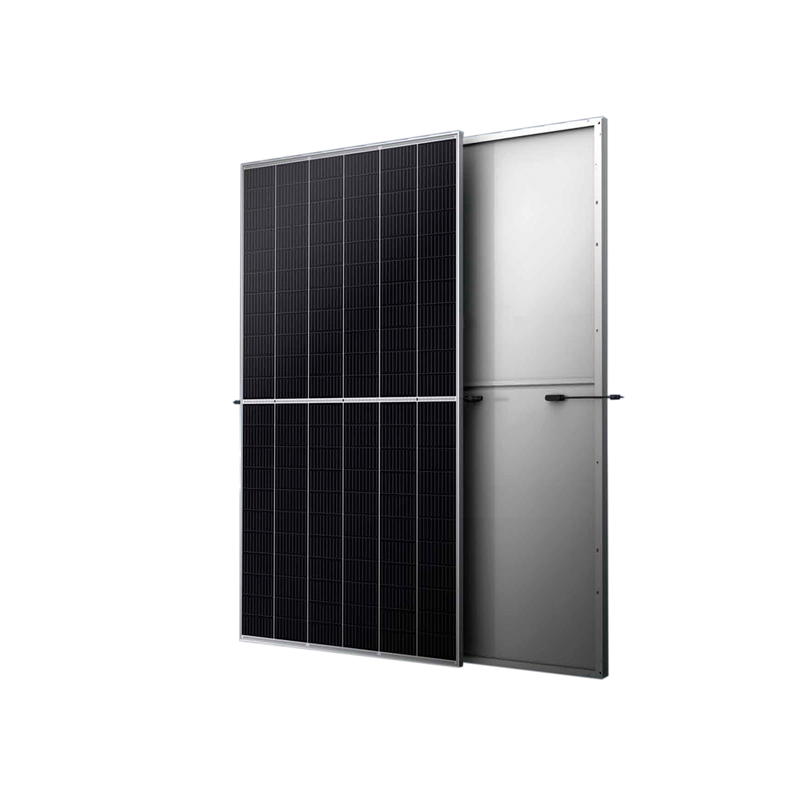

650 - 670W 12BB Half-cut Mono Perc 132-cell
- Category: OEM Solar Panels
- Parameter
Product Description
POWER RANGE: 650 - 670W
MAXIMUM EFFICIENCY: 21.6%
ELECTRICAL CHARACTERISTICS
Testing Condition | STC | NMOT | STC | NMOT | STC | NMOT | STC | NMOT | STC | NMOT |
|---|---|---|---|---|---|---|---|---|---|---|
Maximum Power (Pmax/W) | 650 | 492 | 655 | 495 | 660 | 499 | 665 | 503 | 670 | 507 |
Operating Voltage (Vmpp/V) | 37.8 | 35.4 | 38.0 | 35.6 | 38.2 | 35.8 | 38.4 | 36.0 | 38.6 | 36.1 |
Operating Current (Impp/A) | 17.20 | 13.88 | 17.24 | 13.91 | 17.28 | 13.95 | 17.32 | 13.99 | 17.36 | 14.02 |
Open-Circuit Voltage (Voc/V) | 45.4 | 42.9 | 45.6 | 43.1 | 45.8 | 43.3 | 46.0 | 43.5 | 46.2 | 43.7 |
Short-Circuit Current (Isc/A) | 18.29 | 14.74 | 18.33 | 14.77 | 18.37 | 14.81 | 18.41 | 14.84 | 18.45 | 14.87 |
Module Efficiency (%) | 20.90 | 20.90 | 21.10 | 21.10 | 21.30 | 21.30 | 21.40 | 21.40 | 21.60 | 21.60 |
STC: Irradiance 1000W/m², Spectra at AM1.5, Module Temperature 25℃. Power output tolerance: 0~+5W, Test uncertainty for Pmax：±3%
NMOT：Irradiance 800W/m², Spectra at AM1.5, Ambient Temperature 20℃, Wind speed 1m/s
MECHANICAL CHARACTERISTICS
Cell Type | Monocrystalline 210*210mm |
|---|---|
No. of Cells | 132 (6*22) |
Module Dimensions | 2384*1303*35mm (93.86*51.30*1.38inches) |
Weight | 34.5kg (76.06lbs.) |
Front Glass | 3.2mm AR Coating Tempered Glass |
Frame | Anodized Aluminium Alloy |
Junction Box | IP68, 3 Bypass Diodes |
Output Cables | 4mm² (IEC), 12AWG(UL) 300mm in Length or Customized Length |
Connectors | T01/LJQ-3-CSY/MC4/MC4-EVO2 |
APPLICATION CONDITIONS
Maximun System Voltage | 1000V/1500V/DC |
|---|---|
Operating Temperature | -40°C~+85°C |
Maximun Series Fuse | 30A |
Safety Protection Class | ClassⅡ |
Mechanical Load (Front side） | 5400Pa |
Mechanical Load(Back side) | 2400Pa |
TEMPERATURE CHARACTERISTICS
Temperature Coefficient of Pmax | -0.34%/°C |
|---|---|
Temperature Coefficient of Voc | -0.25%/°C |
Temperature Coefficient of Isc | +0.046%/°C |
Nominal Module Operating Temperature(NMOT) | 43±2°C |
PACKING CONFIGURATION
Pieces Per Pallet | 31 | 31(USA) |
|---|---|---|
Pieces Per Container(40'HQ) | 527 | 527 |
