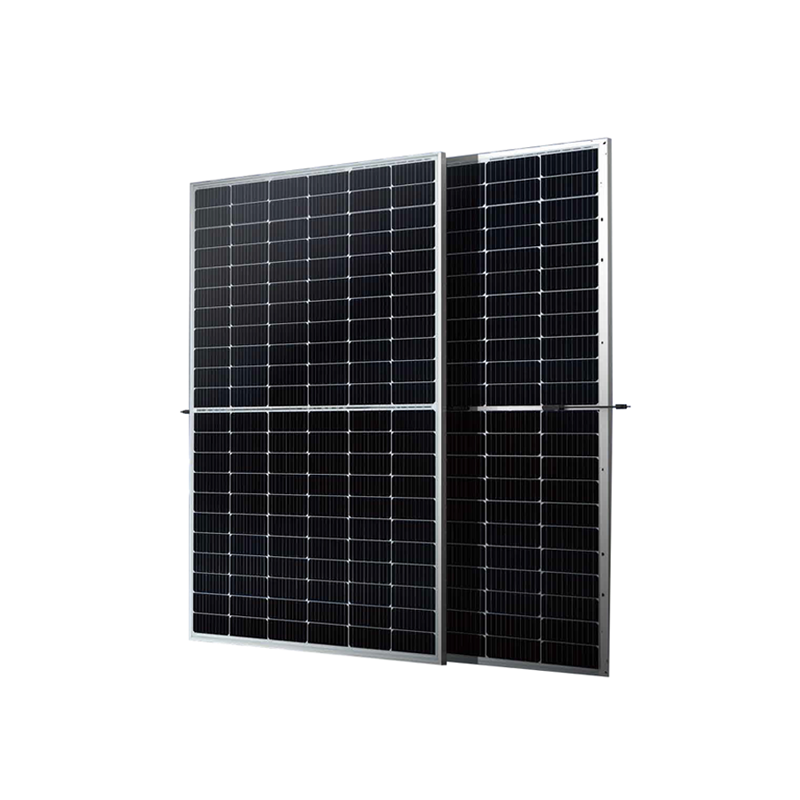

585 - 605W Bifacial Dual Glass12BB Half-cut Mono Perc 120-cell

  1. Home
  2. OEM Solar Panels

585 - 605W Bifacial Dual Glass12BB Half-cut Mono Perc 120-cell

  • Category: OEM Solar Panels
  • Parameter
    •

Product Description

POWER RANGE: 585 - 605W

MAXIMUM EFFICIENCY:  21.4%

ELECTRICAL CHARACTERISTICS

Testing Condition

STC

NMOT

STC

NMOT

STC

NMOT

STC

NMOT

STC

NMOT

Maximum Power (Pmax/W)

585

437

590

441
595
444
600
448
605
452

Operating Voltage (Vmpp/V)

34.1

32.0

34.3

32.2
34.5
32.4
34.7
32.6
34.9
32.7

Operating Current (Impp/A)

17.16

13.65

17.21

13.69
17.25
13.72
17.30
13.77
17.34
13.80

Open-Circuit Voltage (Voc/V)

41.0

38.7

41.2

38.9
41.4
39.1
41.6
39.3
41.8
39.4

Short-Circuit Current (Isc/A)

18.25

14.72

18.30

14.75
18.34
14.78
18.39
14.82
18.43
14.85

Module Efficiency (%)

20.70

20.70

20.80

20.80
21.00
21.00
21.20
21.20
21.40
21.40

STC: Irradiance 1000W/m², Spectra at AM1.5, Module Temperature 25℃. Power output tolerance: 0~+5W, Test uncertainty for Pmax：±3%

NMOT：Irradiance 800W/m², Spectra at AM1.5, Ambient Temperature 20℃, Wind speed 1m/s

REAR SIDE POWER GAIN(REFERENCE TO 595W FRONTI

Pmax gain

5%
10%
15%
20%
25%

Pmax/W

625
655
684
714
744

Vmpp/V

34.50
34.5034.5034.5034.50

Impp/A

18.11
18.98
19.84
20.70
21.56

Voc/V

41.30
41.30
41.3041.3041.30

Isc/A

19.23
20.14
21.06
21.97
22.89



MECHANICAL CHARACTERISTICS

Cell Type

Monocrystalline 210*210mm

No. of Cells

120(6*20)

Module Dimensions

2172*1303*35mm(85.51*51.30*1.38inches

Weight

34.8kg(76.72lbs.)

Front Glass

2.0mm AR Coating Semi-tempered Glass

Back Glass

2.0mm Glazed Semi-tempered Glass

Frame

Anodized Aluminium Alloy

Junction Box

IP68, 3 Bypass Diodes

Output Cables

4mm² (IEC), 12AWG(UL)

300mm in Length or Customized Length

Connectors

T01/LJQ-3-CSY/MC4/MC4-EVO2

APPLICATION CONDITIONS

Maximun System Voltage

1500V/DC

Operating Temperature

-40°C~+85°C

Maximun Series Fuse

35A

Safety Protection Class

ClassⅡ

Mechanical Load

Front side 5400Pa,Back side 2400Pa

Refer. Bifaciality Factor

70%±5%

TEMPERATURE CHARACTERISTICS

Temperature Coefficient of Pmax

-0.34%/°C

Temperature Coefficient of Voc

-0.25%/°C

Temperature Coefficient of Isc

+0.046%/°C

Nominal Module Operating

Temperature(NMOT)

43±2°C

PACKING CONFIGURATION

Pieces Per Pallet

31

31(USA)

Pieces Per Container(40'HQ)

527

527
