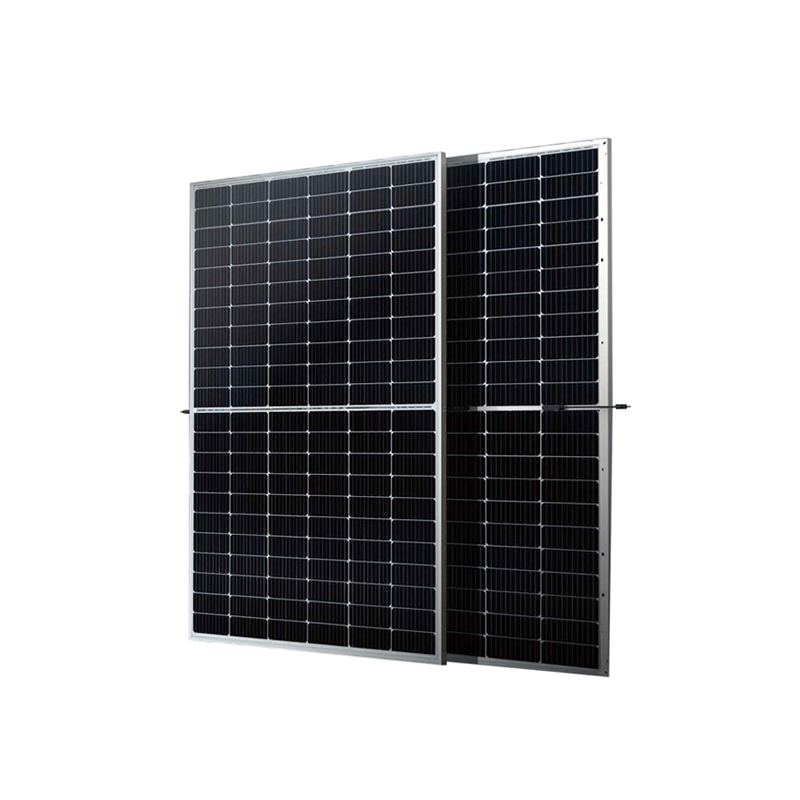

580 - 600W Bifacial Dual Glass 10BB Half-cut Mono Perc 156-cell

  1. Home
  2. OEM Solar Panels

580 - 600W Bifacial Dual Glass 10BB Half-cut Mono Perc 156-cell

  • Category: OEM Solar Panels
  • Parameter
    •

Product Description

POWER RANGE: 580 - 600W

MAXIMUM EFFICIENCY:  21.5%

ELECTRICAL CHARACTERISTICS

Testing Condition

STC

NMOT

STC

NMOT

STC

NMOT

STC

NMOT

STC

NMOT

Maximum Power (Pmax/W)

580

432

585

436

590

439

595

443

600

447

Operating Voltage (Vmpp/V)

44.97

41.9

45.11

42.1

45.25

42.2

45.39

42.3

45.53

42.5

Operating Current (Impp/A)

12.90

10.30

12.97

10.35

13.04

10.41

13.11

10.46

13.18

10.52

Open-Circuit Voltage (Voc/V)

53.59

50.4

53.73

50.6

53.87

50.7

54.01

50.8

54.15

51.0

Short-Circuit Current (Isc/A)

13.79

11.12

13.86

11.17

13.93

11.23

14.00

11.28

14.07

11.34

Module Efficiency (%)

20.70

20.70

20.90

20.90

21.10

21.10

21.30

21.30

21.50

21.50

STC: Irradiance 1000W/m², Spectra at AM1.5, Module Temperature 25℃. Power output tolerance: 0~+5W, Test uncertainty for Pmax：±3%

NMOT：Irradiance 800W/m², Spectra at AM1.5, Ambient Temperature 20℃, Wind speed 1m/s

REAR SIDE POWER GAIN(REFERENCE TO 590W FRONTI

Pmax gain

5%
10%
15%
20%
25%

Pmax/W

620

649

679

708

725

Vmpp/V

45.25

45.25

45.25

45.25

45.25

Impp/A

13.69

14.34

15.00

15.65

16.30

Voc/V

53.87

53.87

53.87

53.87

53.87

Isc/A

14.63

16.02

16.02

16.72

17.41



MECHANICAL CHARACTERISTICS

Cell Type

Monocrystalline Silicon (10Busbar)

No. of Cells

156pcs in series (6*26)

Module Dimensions

2465*1134*35mm (97.05*44.65*1.38inches)

Weight

35kg (77.2lbs.)

Front Glass

2.0mm AR Coating Semi-tempered Glass

Back Glass

2.0mm Glazed Semi-tempered Glass

Frame

Anodized Aluminium Alloy

Junction Box

IP68, 3 Bypass Diodes

Output Cables

4mm² (IEC), 12AWG(UL)

300mm in Length or Customized Length

Connectors

T01/LJQ-3-CSY/MC4/MC4-EVO2

APPLICATION CONDITIONS

Maximun System Voltage

1500V/DC

Operating Temperature

-40°C~+85°C

Maximun Series Fuse

30A

Safety Protection Class

ClassⅡ

Mechanical Load

Front side 5400Pa,Back side 2400Pa

Refer. Bifaciality Factor

70%±5%

TEMPERATURE CHARACTERISTICS

Temperature Coefficient of Pmax

-0.35%/°C

Temperature Coefficient of Voc

-0.26%/°C

Temperature Coefficient of Isc

+0.048%/°C

Nominal Module Operating

Temperature(NMOT)

43±2°C

PACKING CONFIGURATION

Pieces Per Pallet

31

31(USA)

Pieces Per Container(40'HQ)

496

496
