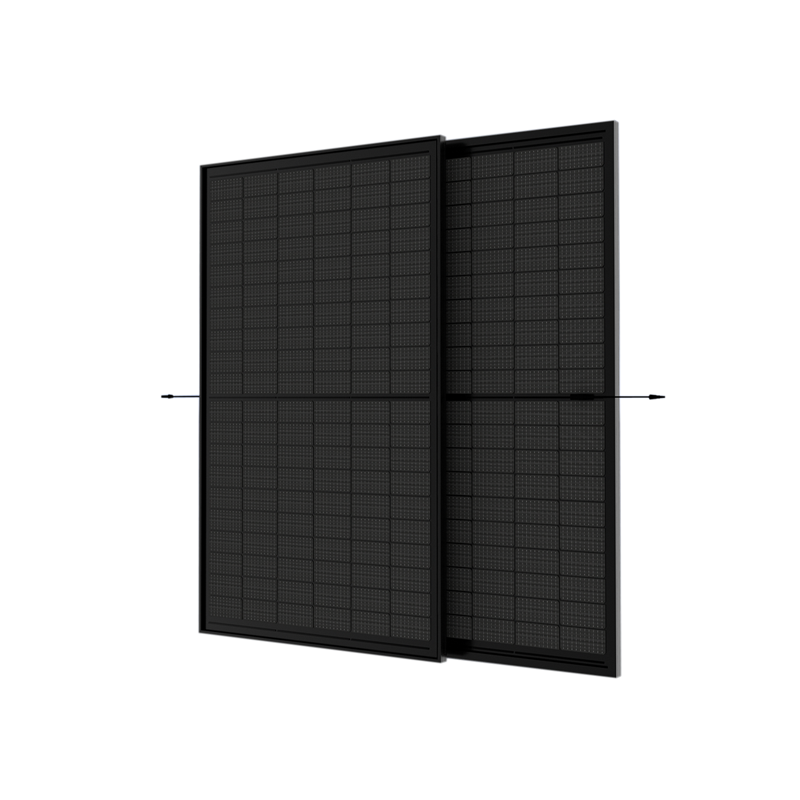

535 - 555W Bifacial Module With TransparentBacksheet 10BB Half-cut Mono Perc 144-cell

  1. Home
  2. OEM Solar Panels

535 - 555W Bifacial Module With TransparentBacksheet 10BB Half-cut Mono Perc 144-cell

  • Category: OEM Solar Panels
  • Parameter
    •

Product Description

POWER RANGE: 535 - 555W

MAXIMUM EFFICIENCY:  21.5%

ELECTRICAL CHARACTERISTICS

Testing Condition

STC

NMOT

STC

NMOT

STC

NMOT

STC

NMOT

STC

NMOT

Maximum Power (Pmax/W)

535

398

540

402

545

406

550

410

555

413

Operating Voltage (Vmpp/V)

41.48

38.70

41.64

38.80

41.80

39.00

41.96

39.10

42.12

39.30

Operating Current (Impp/A)

12.90

10.30

12.97

10.36

13.04

10.41

13.11

10.47

13.18

10.52

Open-Circuit Voltage (Voc/V)

49.46

46.50

49.60

46.70

49.76

46.80

49.92

47.00

50.08

47.10

Short-Circuit Current (Isc/A)

13.79

11.12

13.86

11.17

13.93

11.23

14.00

11.28

14.07

11.34

Module Efficiency (%)

20.70

20.70

20.90

20.90

21.1

21.1

21.30

21.30

21.50

21.50

STC: Irradiance 1000W/m², Spectra at AM1.5, Module Temperature 25℃. Power output tolerance: 0~+5W, Test uncertainty for Pmax：±3%

NMOT：Irradiance 800W/m², Spectra at AM1.5, Ambient Temperature 20℃, Wind speed 1m/s

REAR SIDE POWER GAINIREFERENCE TO 540W FRONTI

Pmax gain

5%

10%

15%
20%
25%

Pmax/W

567

594

621

648

675

Vmpp/V

41.64

41.64

41.64

41.64

41.64

Impp/A

13.62

14.27

14.92

15.56

16.21

Voc/V

49.60

49.60

49.60

49.60

49.60

Isc/A

14.55

15.25

15.94

16.63

17.33

MECHANICAL CHARACTERISTICS

Solar Cell

Monocrystalline 182*182mm

No. of Cells

144pcs in series (6*24)

Module Dimensions

2278*1134*35mm

(89.69*44.65*1.38inches)

Weight

29kg (61.9lbs.)

Front Glass

3.2mm AR Coating Tempered Glass

Frame

Anodized Aluminium Alloy

Junction Box

IP68, 3 Bypass Diodes

Output Cables

4mm² (IEC), 12AWG(UL)

300mm in Length or Customized Length

Connectors

T01/LJQ-3-CSY/MC4/MC4-EVO2

APPLICATION CONDITIONS

Maximun System Voltage

1000V/1500V/DC

Operating Temperature

-40°C~+85°C

Maximun Series Fuse

30A

Safety Protection Class

ClassⅡ

Mechanical Load (Front side)

5400Pa

Mechanical Load (Back side)

2400Pa

Refer. Bifaciality Factor

70%+5%/-10%

TEMPERATURE CHARACTERISTICS

Temperature Coefficient of Pmax

-0.35%/°C

Temperature Coefficient of Voc

-0.26%/°C

Temperature Coefficient of Isc

+0.048%/°C

Nominal Module Operating

Temperature(NMOT)

43±2°C

PACKING CONFIGURATION

Pieces Per Pallet

31

31(USA)

Pieces Per Container(40'HQ)

620

620
