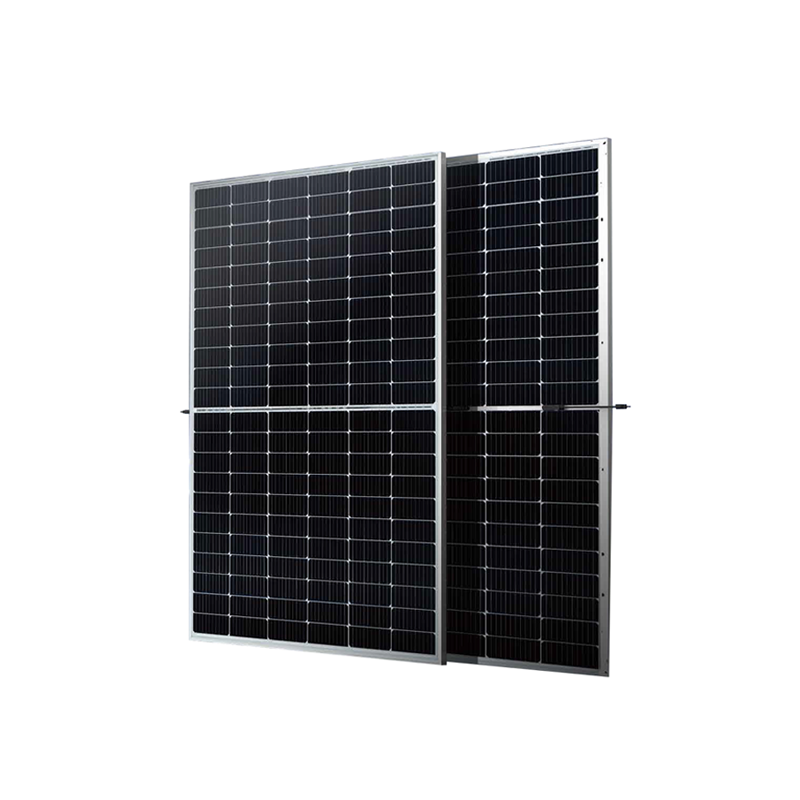

530 - 550W Bifacial Dual Glass 10BB Half-cut Mono Perc 144-cell

  1. Home
  2. OEM Solar Panels

530 - 550W Bifacial Dual Glass 10BB Half-cut Mono Perc 144-cell

  • Category: OEM Solar Panels
  • Parameter
    •

Product Description

POWER RANGE:  530 - 550W

MAXIMUM EFFICIENCY:  21.3%

ELECTRICAL CHARACTERISTICS

Testing Condition

STC

NMOT

STC

NMOT

STC

NMOT

STC

NMOT

STC

NMOT

Maximum Power (Pmax/W)

530

395

535

398

540

402

545

406

550

410

Operating Voltage (Vmpp/V)

41.32

38.6

41.48

38.7

41.64

38.8

41.80

39.0

41.96

39.1

Operating Current (Impp/A)

12.83

10.24

12.90

10.30

12.97

10.36

13.04

10.41

13.11

10.47

Open-Circuit Voltage (Voc/V)

49.32

46.4

49.46

46.5

49.60

46.7

49.76

46.8

49.92

47.0

Short-Circuit Current (Isc/A)

13.72

11.06

13.79

11.12

13.86

11.17

13.93

11.23

14.00

11.28

Module Efficiency (%)

20.50

20.50

20.70

20.70

20.90

20.90

21.10

21.10

21.30

21.30

REAR SIDE POWER GAIN(REFERENCE TO 530W FRONT)

Pmax gain

5%
10%
15%
20%
25%

Pmax/W

557

583

610

636

663

Vmpp/V

41.32

41.3241.3241.3241.32

Impp/A

13.47

14.11

14.75

15.40

16.04

Voc/V

49.32

49.32

49.32

49.32

49.32

Isc/A

14.41

15.09

15.78

16.46

17.15

MECHANICAL CHARACTERISTICS

Cell Type

Monocrystalline Silicon(10Busbar)

No. of Cells

144pcs in series (6*24)

Module Dimensions

2278*1134*30mm (89.69*44.65*1.18inches)

Weight

31.8kg (70.11lbs.)

Front Glass

2.0mm AR Coating Semi-tempered Glass

Back Glass

2.0mmGlazed Semi-tempered Glass

Frame

Anodized Aluminium Alloy

Junction Box

IP68, 3 Bypass Diodes

Output Cables

4mm²(IEC),12AWG(UL)

300mm in Length or Customized Length

Connectors

T01/LJQ-3-CSY/MC4/MC4-EVO2

APPLICATION CONDITIONS

Maximun System Voltage

1500V/DC

Operating Temperature

-40°C~+85°C

Maximun Series Fuse

30A

Safety Protection Class

ClassⅡ

Mechanical Load (Front side)

Front side 5400Pa,

Back side 2400Pa

Refer. Bifaciality Factor

70%+5%

TEMPERATURE CHARACTERISTICS

Temperature Coefficient of Pmax

-0.35%/°C

Temperature Coefficient of Voc

-0.26%/°C

Temperature Coefficient of Isc

+0.048%/°C

Nominal Module Operating

Temperature(NMOT)

43±2°C

PACKING CONFIGURATION

Pieces Per Pallet

36

36(USA)

Pieces Per Container(40'HQ)

720

576
