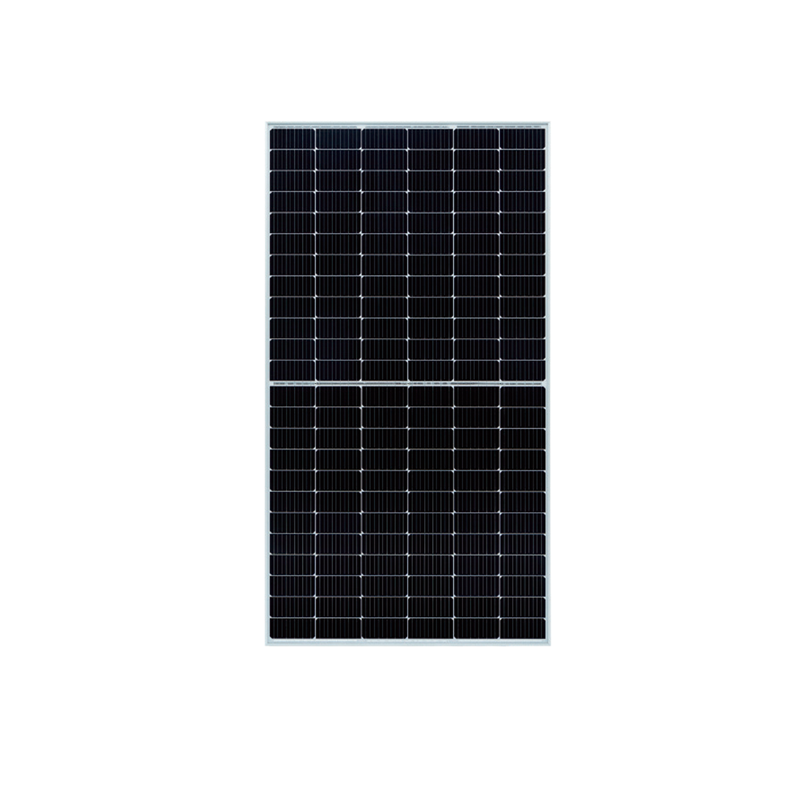

525 - 550W bifacial dual glass 10BB half-cut mono perc 144 half-cell

  1. Home
  2. OEM Solar Panels

525 - 550W bifacial dual glass 10BB half-cut mono perc 144 half-cell

  • Category: OEM Solar Panels
  • Parameter
    •

Product Description

POWER RANGE: 525 - 550W

MAXIMUM EFFICIENCY:  21.1%

Performance at STC (Power Tolerance 0 ~ +3%)

Maximum Power (Pmax/W)

525
530
535
540
545
550

Operating Voltage (Vmpp/V)

40.6

40.8

41.0

41.2

41.4

41.6

Operating Current (Impp/A)

12.94

13.00

13.05

13.11

13.17

13.23

Open-Circuit Voltage (Voc/V)

48.8

49.0

49.2

49.4

49.6

49.8

Short-Circuit Current (Isc/A)

13.71

13.76

13.81

13.87

13.93

13.99

Module Efficiency ηm(%)

20.1

20.3

20.5

20.7

20.9

21.1

Performance at NMOT

Maximum Power (Pmax/W)

391.6

395.4

398.9

402.8

406.6

410.5

Operating Voltage (Vmpp/V)

37.8

38.0

38.2

38.4

38.6

38.8

Operating Current (Impp/A)

10.35

10.40

10.44

10.49

10.54

10.59

Open-Circuit Voltage (Voc/V)

45.7

45.9

46.1

46.3

46.4

46.6

Short-Circuit Current (Isc/A)

11.05

11.09

11.13

11.18

11.23

11.28

Electrical characteristics with different rear side power gain (refer to 445W front)

Maximum Power (Pmax/W)

391.6

395.4

398.9

402.8

406.6

410.5

Operating Voltage (Vmpp/V)

37.8

38.0

38.2

38.4

38.6

38.8

Operating Current (Impp/A)

10.35

10.40

10.44

10.49

10.54

10.59

Open-Circuit Voltage (Voc/V)

45.7

45.9

46.1

46.3

46.4

46.6

Short-Circuit Current (Isc/A)

11.05

11.09

11.13

11.18

11.23

11.28

Electrical characteristics with different rear side power gain (refer to 540W front)

Pmax gain

Pmax/W

Vmpp/V

Impp/A

Voc/V

Isc/A

5%

567

41.2

13.77

49.4

14.56

10%

594

41.2

14.42

49.4

15.26

15%

621

41.2

15.08

49.4

15.95

20%

648

41.2

15.73

49.4

16.64

25%

675

41.2

16.39

49.4

17.34


MECHANICAL SPECIFICATION

Cell Type

Mono-Crystalline Silicon(10Busbar)

Cell Dimensions

182*182mm (7inches)

Cell Arrangement

144 (6*24)

Weight

32kg (70.5lbs.)

Module Dimensions

2300*1135*35mm (90.55*44.68*1.38inches)

Cable Length

(Portrait)

(+)300mm (11.81inches) / (-)300mm (11.81inches)

Cable Length

(Landscape)

(+)1200mm (47.24inches) / (-)1200mm (47.24inches)

Cable Cross Section Size

4mm2(0.006inches2)

Front Glass

2.0mm (0.08inches) AR Coated Strengthened Glass

Back Glass

2.0mm (0.08inches) Heat Strengthened Glass (White Grid Glass)

No. of Bypass Diodes

3/6

Packing Configuration

31pcs/carton, 620pcs/40hq

Frame

Anodized Aluminium Alloy

Junction Box

IP68

OPERATING CONDITIONS

Maximun System Voltage

1500V/DC(IEC)

Operating Temperature

-40°C ~ +85°C

Maximun Series Fuse

25A

Static Loading

5400pa

Conductivity at Ground

≤0.1Ω

Safety Class

II

Resistance

≥100MΩ

Connector

MC4 Compatible

Backside Output Ratio*

70% ± 5%

TEMPERATURE COEFFICIENT

Temperature Coefficient Pmax

-0.36%/°C

Temperature Coefficient Voc

-0.26%/°C

Temperature Coefficient Isc

+0.043%/°C

NMOT

43±2°C
