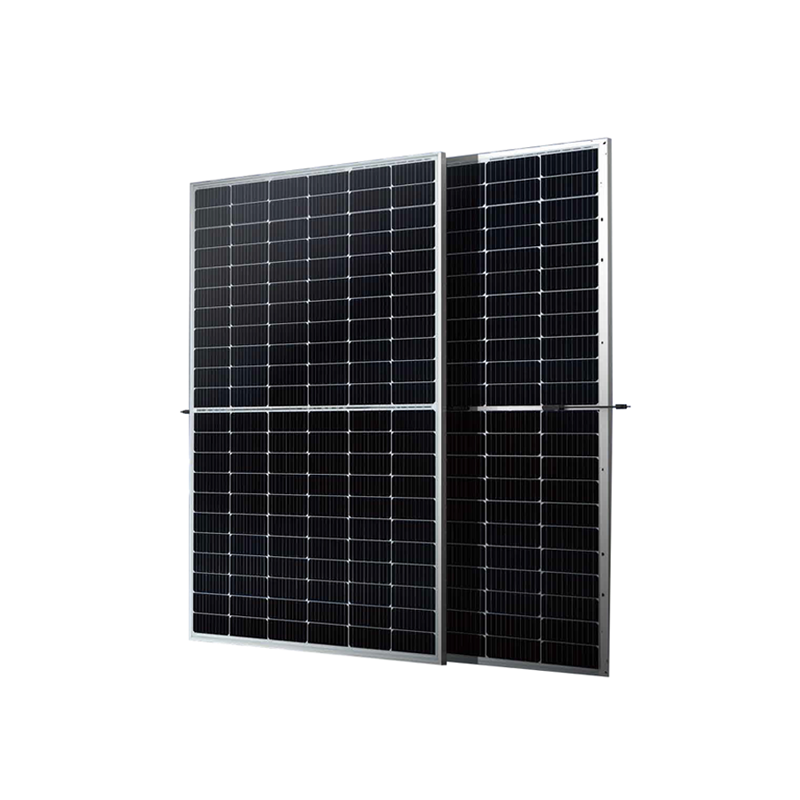

485 - 505W Bifacial Dual Glass 10BB Half-cut Mono Perc 132-cell

  1. Home
  2. OEM Solar Panels

485 - 505W Bifacial Dual Glass 10BB Half-cut Mono Perc 132-cell

  • Category: OEM Solar Panels
  • Parameter
    •

Product Description

POWER RANGE: 485 - 505W

MAXIMUM EFFICIENCY:  21.2%

ELECTRICAL CHARACTERISTICS

Testing Condition

STC

NMOT

STC

NMOT

STC

NMOT

STC

NMOT

STC

NMOT

Maximum Power (Pmax/W)

485

362

490

365

495

369

500

372

505

376

Operating Voltage (Vmpp/V)

37.87

35.3

38.02

35.5

38.17

35.6

38.32

35.7

38.47

35.9

Operating Current (Impp/A)

12.81

10.23

12.89

10.29

12.97

10.36

13.05

10.42

13.13

10.49

Open-Circuit Voltage (Voc/V)

45.16

42.5

45.31

42.6

45.46

42.8

45.61

42.9

45.76

43.1

Short-Circuit Current (Isc/A)

13.70

11.04

13.78

11.11

13.86

11.17

13.94

11.24

14.02

11.30

Module Efficiency (%)

20.40

20.40

20.60

20.60

20.80

20.80

21.00

21.00

21.20

21.20

REAR SIDE POWER GAIN(REFERENCE TO 410W FRONT)

Pmax gain

5%
10%
15%
20%
25%

Pmax/W

515

539

564

588

613

Vmpp/V

38.02

38.02

38.02

38.02

38.02

Impp/A

13.53

14.18

14.82

15.47

16.11

Voc/V

45.31

45.31

45.31

45.31

45.31

Isc/A

14.47

15.16

15.85

16.54

17.23

MECHANICAL CHARACTERISTICS

Cell Type

Monocrystalline Silicon (10Busbar)

No. of Cells

132pcs in series (6*22)

Module Dimensions

2100*1134*30mm (82.68*44.65*1.18inches)

Weight

29.4kg (64.8lbs.)

Front Glass

2.0mm AR Coating Semi-tempered Glass

Back Glass

2.0mmGlazedSemi-tempered

Glass

Frame

Anodized Aluminium Alloy

Junction Box

IP68, 3 Bypass Diodes

Output Cables

4mm²(IEC),12AWG(UL)

300mm in Length or Customized Length

Connectors

T01/LJQ-3-CSY/MC4/MC4-EVO2

APPLICATION CONDITIONS

Maximun System Voltage

1500V/DC

Operating Temperature

-40°C~+85°C

Maximun Series Fuse

30A

Safety Protection Class

ClassⅡ

Mechanical Load (Front side)

Front side 5400Pa,

Back side 2400Pa

Refer. Bifaciality Factor

70%+5%

TEMPERATURE CHARACTERISTICS

Temperature Coefficient of Pmax

-0.35%/°C

Temperature Coefficient of Voc

-0.26%/°C

Temperature Coefficient of Isc

+0.048%/°C

Nominal Module Operating

Temperature(NMOT)

43±2°C

PACKING CONFIGURATION

Pieces Per Pallet

36

36(USA)

Pieces Per Container(40'HQ)

612
