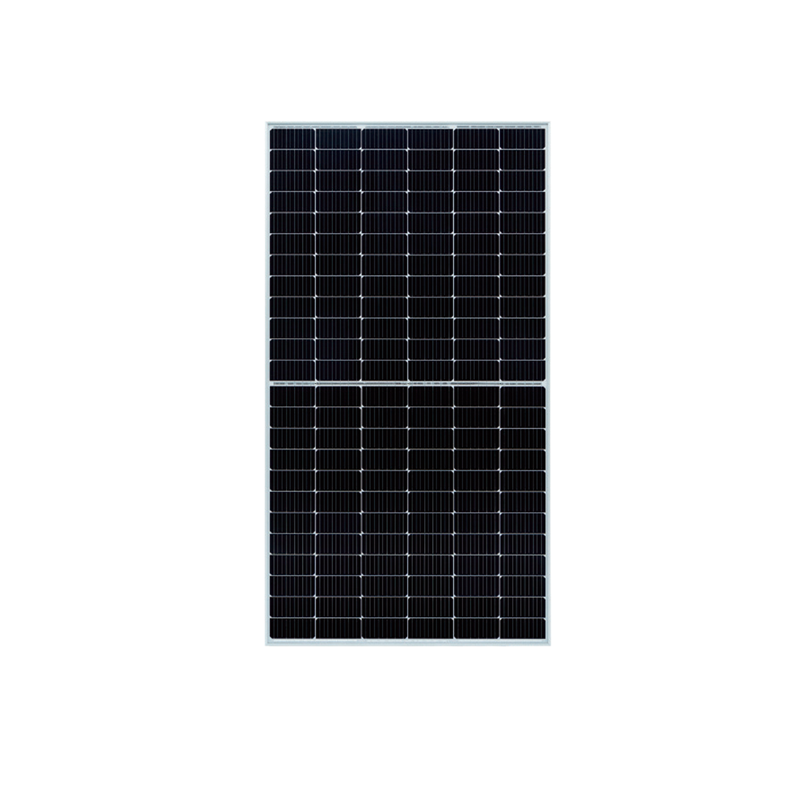

440 - 460W bifacial dual glass 10BB half-cut mono perc 120 half-cell
- Category: OEM Solar Panels
- Parameter
Product Description
POWER RANGE: 440 - 460W
MAXIMUM EFFICIENCY: 21.2%
POSITIVE POWER TOLERANCE: 0~+3%
Performance at STC (Power Tolerance 0 ~ +3%)
Maximum Power (Pmax/W) | 440 | 445 | 450 | 455 | 460 |
|---|---|---|---|---|---|
Operating Voltage (Vmpp/V) | 34.35 | 34.53 | 34.70 | 34.87 | 35.04 |
Operating Current (Impp/A) | 12.81 | 12.89 | 12.97 | 13.05 | 13.13 |
Open-Circuit Voltage (Voc/V) | 40.99 | 41.16 | 41.33 | 41.50 | 41.67 |
Short-Circuit Current (Isc/A) | 13.69 | 13.78 | 13.86 | 13.94 | 14.02 |
Module Efficiency ηm(%) | 20.3 | 20.5 | 20.7 | 21.0 | 21.2 |
Performance at NMOT
Maximum Power (Pmax/W) | 328 | 332 | 336 | 339 | 343 |
|---|---|---|---|---|---|
Operating Voltage (Vmpp/V) | 32.1 | 32.2 | 32.4 | 32.6 | 32.7 |
Operating Current (Impp/A) | 10.23 | 10.30 | 10.36 | 10.42 | 10.49 |
Open-Circuit Voltage (Voc/V) | 38.6 | 38.7 | 38.9 | 39.1 | 39.2 |
Short-Circuit Current (Isc/A) | 11.04 | 11.11 | 11.17 | 11.24 | 11.30 |
Electrical characteristics with different rear side power gain (refer to 445W front)
Pmax gain | Pmax/W | Pmax/W | Impp/A | Voc/V | Isc/A |
|---|---|---|---|---|---|
5% | 467 | 34.53 | 13.53 | 41.16 | 14.47 |
10% | 490 | 34.53 | 14.18 | 41.16 | 15.16 |
15% | 512 | 34.53 | 14.82 | 41.16 | 15.85 |
20% | 534 | 34.53 | 15.47 | 41.16 | 16.54 |
25% | 556 | 34.53 | 16.11 | 41.16 | 17.23 |
MECHANICAL SPECIFICATION
Cell Type | Monocrystalline |
|---|---|
Cell Dimensions | 182*182mm |
Cell Arrangement | 120 (6*20) |
Weight | 27kg (59.5lbs.) |
Module Dimensions | 1914*1134*35mm (75.35*44.65*1.38inches) |
Cable Length | Portrait 300mm/Landscape 1200mm/Customized |
Cable Cross Section Size | TUV: 4mm2 (0.006inches2 )/UL: 12AWG |
Front Glass | 2.0mm (0.08 inches) AR Coating Semi-tempered Glass |
Back Glass | 2.0mm (0.08 inches) Glazed Semi-tempered Glass |
No. of Bypass Diodes | 3 |
Packing Configuration (1) | 31pcs/carton, 744pcs/40hq |
Packing Configuration (2) | 31pcs/carton, 682pcs/40hq |
Frame | Anodized Aluminium Alloy |
Junction Box | IP68 |
OPERATING CONDITIONS
Maximun System Voltage | 1500V/DC(IEC) |
|---|---|
Operating Temperature | -40°C ~ +85°C |
Maximun Series Fuse | 30A |
Static Loading | Snow Loading: 5400Pa/ Wind Loading: 2400Pa |
Conductivity at Ground | ≤0.1Ω |
Safety Class | II |
Resistance | ≥100MΩ |
Connector | T01/LJQ-3-CSY/MC4/MC4-EVO2 |
TEMPERATURE COEFFICIENT
Temperature Coefficient Pmax | -0.35%/°C |
|---|---|
Temperature Coefficient Voc | -0.26%/°C |
Temperature Coefficient Isc | +0.048%/°C |
NMOT | 43±2°C |
