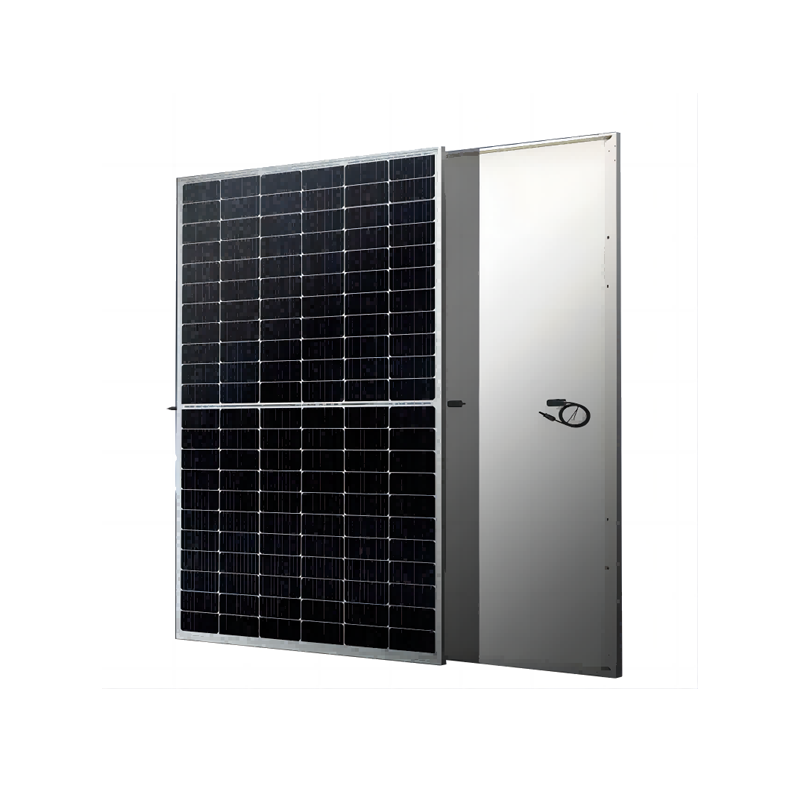

395 - 415W 10BB Half-cut Mono Perc Anti-glare 108-cell
- Category: OEM Solar Panels
- Parameter
Product Description
POWER RANGE: 395 - 415W
MAXIMUM EFFICIENCY: 21.3%
ELECTRICAL CHARACTERISTICS
Testing Condition | STC | NMOT | STC | NMOT | STC | NMOT | STC | NMOT | STC | NMOT |
|---|---|---|---|---|---|---|---|---|---|---|
Maximum Power (Pmax/W) | 395 | 294 | 400 | 298 | 405 | 302 | 410 | 306 | 415 | 310 |
Operating Voltage (Vmpp/V) | 30.85 | 28.8 | 31.05 | 29.0 | 31.24 | 29.2 | 31.43 | 29.3 | 31.64 | 29.6 |
Operating Current (Impp/A) | 12.81 | 10.23 | 12.89 | 10.30 | 12.97 | 10.36 | 13.05 | 10.42 | 13.13 | 10.48 |
Open-Circuit Voltage (Voc/V) | 36.75 | 34.6 | 37.00 | 34.8 | 37.25 | 35.1 | 37.50 | 35.3 | 37.75 | 35.5 |
Short-Circuit Current (Isc/A) | 13.69 | 11.04 | 13.78 | 11.11 | 13.86 | 11.17 | 13.94 | 11.24 | 14.02 | 11.30 |
Module Efficiency (%) | 20.20 | 20.20 | 20.50 | 20.50 | 20.70 | 20.70 | 21.00 | 21.00 | 21.30 | 21.30 |
STC: Irradiance 1000W/m², Spectra at AM1.5, Module Temperature 25℃. Power output tolerance: 0~+5W, Test uncertainty for Pmax：±3%
NMOT：Irradiance 800W/m², Spectra at AM1.5, Ambient Temperature 20℃, Wind speed 1m/s
MECHANICAL CHARACTERISTICS
Solar Cell | Monocrystalline 182*182mm |
|---|---|
No. of Cells | 108 (6*18) |
Module Dimensions | 1722*1134*30mm (67.80*44.65*1.18inches) |
Weight | 21.5kg (47.4lbs.) |
Front Glass | 3.2mm AR Coating Tempered Glass |
Frame | Anodized Aluminium Alloy |
Junction Box | IP68, 3 Bypass Diodes |
Output Cables | 4mm² (IEC), 12AWG(UL) 300mm in Length or Customized Length |
Connectors | T01/LJQ-3-CSY/MC4/MC4-EVO2 |
APPLICATION CONDITIONS
Maximun System Voltage | 1000V/1500V/DC |
|---|---|
Operating Temperature | -40°C~+85°C |
Maximun Series Fuse | 25A |
Safety Protection Class | ClassⅡ |
Mechanical Load (Front side) | 5400Pa |
Mechanical Load (Back side) | 2400Pa |
TEMPERATURE CHARACTERISTICS
Temperature Coefficient of Pmax | -0.35%/°C |
|---|---|
Temperature Coefficient of Voc | -0.26%/°C |
Temperature Coefficient of Isc | +0.048%/°C |
Nominal Module Operating Temperature(NMOT) | 43±2°C |
PACKING CONFIGURATION
Pieces Per Pallet | 36 | 36(USA) |
|---|---|---|
Pieces Per Container(40'HQ) | 936 | 936 |
