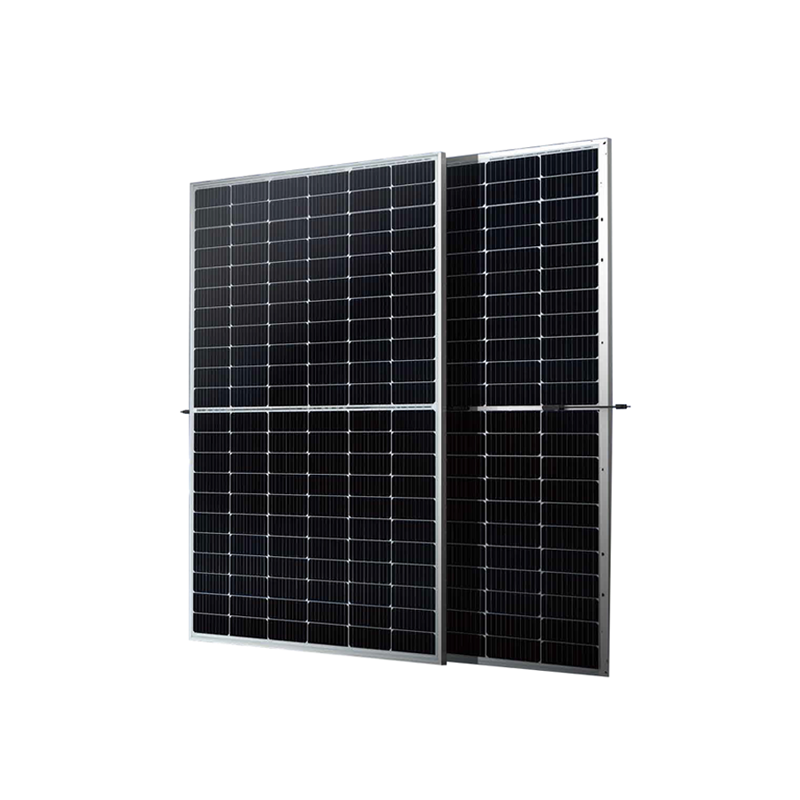

435 - 455W Bifacial Dual Glass 9BB Half-cut Mono Perc 144-cell

  1. Home
  2. OEM Solar Panels

435 - 455W Bifacial Dual Glass 9BB Half-cut Mono Perc 144-cell

  • Category: OEM Solar Panels
  • Parameter
    •

Product Description

POWER RANGE: 435 - 455W

MAXIMUM EFFICIENCY:  20.9%

ELECTRICAL CHARACTERISTICS

Testing Condition

STC

NMOT

STC

NMOT

STC

NMOT

STC

NMOT

STC

NMOT

Maximum Power (Pmax/W)

435

323

440

327

445

330

450

334

455

338

Operating Voltage (Vmpp/V)

41.4

38.7

41.6

38.9

41.8

39.1

42.0

39.3

42.2

39.4

Operating Current (Impp/A)

10.51

8.36

10.58

8.41

10.65

8.47

10.72

8.52

10.79

8.57

Open-Circuit Voltage (Voc/V)

49.8

46.6

50.0

46.8

50.2

46.9

50.4

47.1

50.6

47.3

Short-Circuit Current (Isc/A)

11.16

9.00

11.22

9.04

11.29

9.10

11.36

9.16

11.43

9.21

Module Efficiency (%)

20.00

20.00

20.20

20.20

20.50

20.50

20.70

20.70

20.90

20.90

STC: Irradiance 1000W/m², Spectra at AM1.5, Module Temperature 25℃. Power output tolerance: 0~+5W, Test uncertainty for Pmax：±3%

NMOT：Irradiance 800W/m², Spectra at AM1.5, Ambient Temperature 20℃, Wind speed 1m/s

REAR SIDE POWER GAIN(REFERENCE TO 375W FRONT)

Pmax gain

5%
10%
15%
20%
25%

Pmax/W

462

484

506

528

550

Pmax/W

41.6

41.641.641.641.6

Impp/A

11.11

11.64

12.17

12.70

13.23

Voc/V

50.0

50.0

50.0

50.0

50.0

Isc/A

11.78

12.34

12.90

13.46

14.03

MECHANICAL CHARACTERISTICS

Cell Type

Monocrystalline Silicon(9Busbar)

No. of Cells

144pcs in series (6*24)

Module Dimensions

2094*1038*30mm (82.44*40.87*1.18inches)

Weight

28.0kg (61.73lbs)

Front Glass

2.0mm AR Coating Semi-tempered Glass

Back Glass

2.0mm Glazed Semi-tempered Glass

Frame

Anodized Aluminium Alloy

Junction Box

IP68, 3 Bypass Diodes

Output Cables

4mm² (IEC), 12AWG(UL)

300mm in Length or Customized Length

Connectors

T01/LJQ-3-CSY/MC4/MC4-EVO2

APPLICATION CONDITIONS

Maximun System Voltage

1500V/DC

Operating Temperature

-40°C~+85°C

Maximun Series Fuse

25A

Safety Protection Class

ClassⅡ

Mechanical Load (Front side)

Front side 5400Pa, Back side 2400Pa

Refer. Bifaciality Factor

70%±5%

TEMPERATURE CHARACTERISTICS

Temperature Coefficient of Pmax

-0.36%/°C

Temperature Coefficient of Voc

-0.26%/°C

Temperature Coefficient of Isc

+0.043%/°C

Nominal Module Operating

Temperature(NMOT)

43±2°C

PACKING CONFIGURATION

Pieces Per Pallet

36

36(USA)

Pieces Per Container(40'HQ)

792

648
