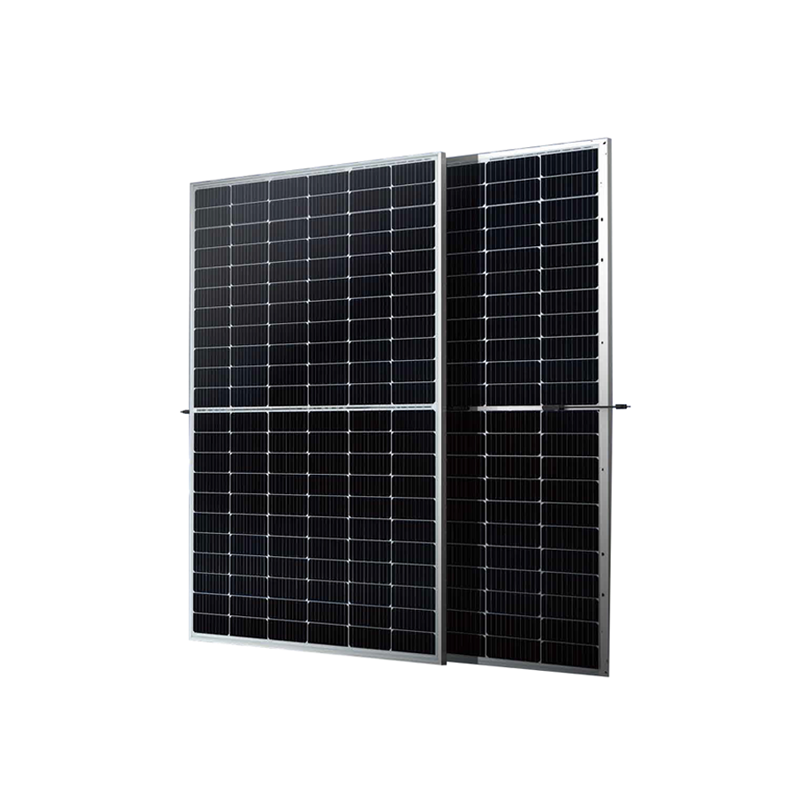

395 - 415W Bifacial Dual Glass 10BB Half-cut Mono Perc 108-cell

  1. Home
  2. OEM Solar Panels

395 - 415W Bifacial Dual Glass 10BB Half-cut Mono Perc 108-cell

  • Category: OEM Solar Panels
  • Parameter
    •

Product Description

POWER RANGE: 395 - 415W

MAXIMUM EFFICIENCY:  21.25%


ELECTRICAL CHARACTERISTICS

Testing Condition

STC

NMOT

STC

NMOT

STC

NMOT

STC

NMOT

STC

NMOT

Maximum Power (Pmax/W)

395
294
400
298
405
302
410
306
415
310

Operating Voltage (Vmpp/V)

30.85

28.8

31.05

29.0

31.24

29.2

31.43

29.3

31.64

29.6

Operating Current (Impp/A)

12.81

10.23

12.89

10.30

12.97

10.36

13.05

10.42

13.13

10.48

Open-Circuit Voltage (Voc/V)

36.75

34.6

37.00

34.8

37.25

35.1

37.50

35.3

37.75

35.5

Short-Circuit Current (Isc/A)

13.69

11.04

13.78

11.11

13.86

11.17

13.94

11.24

14.02

11.30

Module Efficiency (%)

20.22

20.22

20.48

20.48

20.73

20.73

21.00

21.00

21.25

21.25


REAR SIDE POWER GAIN(REFERENCE TO 410W FRONT)

Pmax gain

5%
10%
15%
20%
25%

Pmax/W

431
451
472
492
513

Vmpp/V

31.43
31.4331.4331.4331.43

Impp/A

13.70
14.36
15.01
15.66
16.31

Voc/V

37.50
37.50
37.5037.5037.50

Isc/A

14.65
15.35
16.04
16.74
17.44

MECHANICAL CHARACTERISTICS

Cell Type

Monocrystalline Silicon (10Busbar)

No. of Cells

108pcs in series (6*18)

Module Dimensions

1722*1134*30mm (67.80*44.65*1.18inches)

Weight

25.5kg (56.22lbs)

Front Glass

2.0mm AR Coating Semi-tempered Glass

Back Glass

2.0mm Glazed Semi-tempered

Glass

Frame

Anodized Aluminium Alloy

Junction Box

IP68, 3 Bypass Diodes

Output Cables

4mm²(IEC),12AWG(UL)

300mm in Length or Customized Length

Connectors

T01/LJQ-3-CSY/MC4/MC4-EVO2

APPLICATION CONDITIONS

Maximun System Voltage

1500V/DC

Operating Temperature

-40°C~+85°C

Maximun Series Fuse

30A

Safety Protection Class

ClassⅡ

Mechanical Load (Front side)

Front side 5400Pa,

Back side 2400Pa

Refer. Bifaciality Factor

70%±5%

TEMPERATURE CHARACTERISTICS

Temperature Coefficient of Pmax

-0.35%/°C

Temperature Coefficient of Voc

-0.26%/°C

Temperature Coefficient of Isc

+0.048%/°C

Nominal Module Operating

Temperature(NMOT)

43±2°C

PACKING CONFIGURATION

Pieces Per Pallet

36

36(USA)

Pieces Per Container(40'HQ)

936

720
