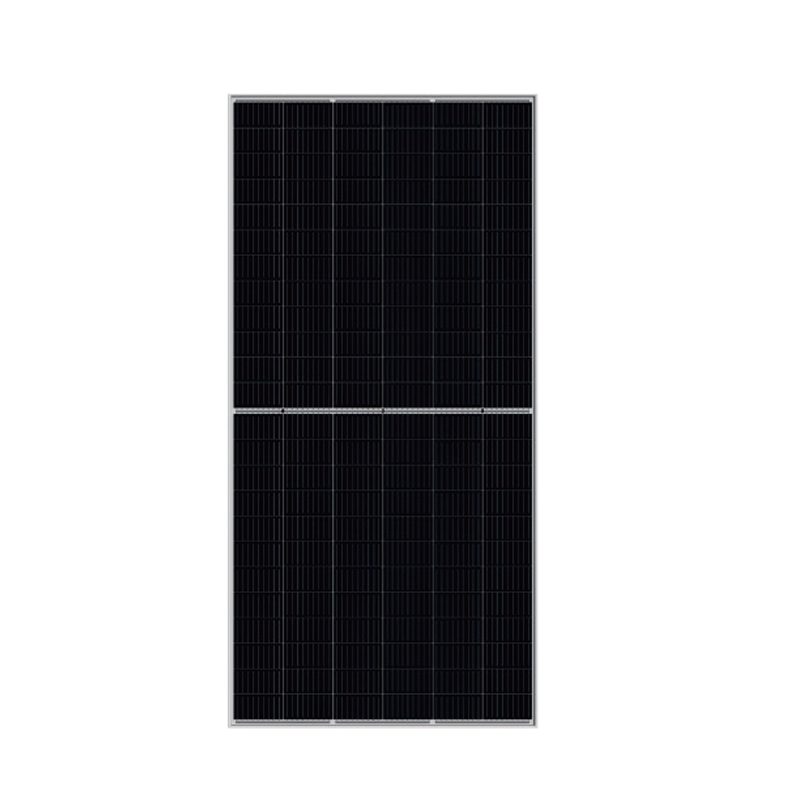

395 - 415W 9BB half-cut mono perc 144 half-cell

  1. Home
  2. OEM Solar Panels

395 - 415W 9BB half-cut mono perc 144 half-cell

  • Category: OEM Solar Panels
  • Parameter
    •

Product Description

POWER RANGE: 395 - 415W

MAXIMUM EFFICIENCY:  20.6%

POSITIVE POWER TOLERANCE: 0~+3%

Performance at STC (Power Tolerance 0 ~ +3%)

Maximum Power (Pmax/W)

395
400
405
410
415

Operating Voltage (Vmpp/V)

40.3
40.5
40.7
40.9
41.1

Operating Current (Impp/A)

9.81
9.89
9.96
10.04
10.11

Open-Circuit Voltage (Voc/V)

48.9
49.1
49.3
49.5
49.8

Short-Circuit Current (Isc/A)

10.35
10.43
10.50
10.58
10.66

Module Efficiency ηm(%)

19.6
19.9
20.1
20.4
20.6

Performance at NMOT

Maximum Power (Pmax/W)

294.6
298.5
302.1
305.9
309.5

Operating Voltage (Vmpp/V)

37.5
37.7
37.9
38.0
38.3

Operating Current (Impp/A)

7.85
7.93
7.98
8.04
8.09

Open-Circuit Voltage (Voc/V)

45.5
45.7
45.9
46.1
46.4

Short-Circuit Current (Isc/A)

8.35
8.42
8.48
8.54
8.60

MECHANICAL SPECIFICATION

Cell Type

Mono-Crystalline Silion (9Busbar)

Cell Dimensions

158.75*158.75mm

Cell Arrangement

144 (6*24)

Weight

22.5kg (49.6Ibs)

Module Dimensions

2008*1002*35mm (79.06*39.45*1.38inches)

Cable Length (Portrait)

(+)300mm (11.81inches) / (-)300mm (11.81inches)

Cable Length (Landscape)

(+)1200mm (47.24inches) / (-)1200mm (47.24inches)

Cable Cross Section Size

4mm2 (0.006inches2 )

Front Glass

3.2mm High Transmission, Tempered Glass

No. of Bypass Diodes

3/6

Packing Configuration (1)

31pcs/carton, 682pcs/40hq

Packing Configuration (2)

31+4pcs/carton, 726pcs/40hq

Frame

Anodized Aluminium Alloy

Junction Box

IP68

OPERATING CONDITIONS

Maximun System Voltage

1000V/1500V/DC(IEC)

Operating Temperature

-40°C ~ +85°C

Maximun Series Fuse

20A

Static Loading

5400pa

Conductivity at Ground

≤0.1Ω

Safety Class

II

Resistance

≥100MΩ

Connector

MC4 Compatible

TEMPERATURE COEFFICIENT

Temperature Coefficient Pmax

-0.36%/°C

Temperature Coefficient Voc

-0.26%/°C

Temperature Coefficient Isc

+0.043%/°C

NMOT

43±2°C
