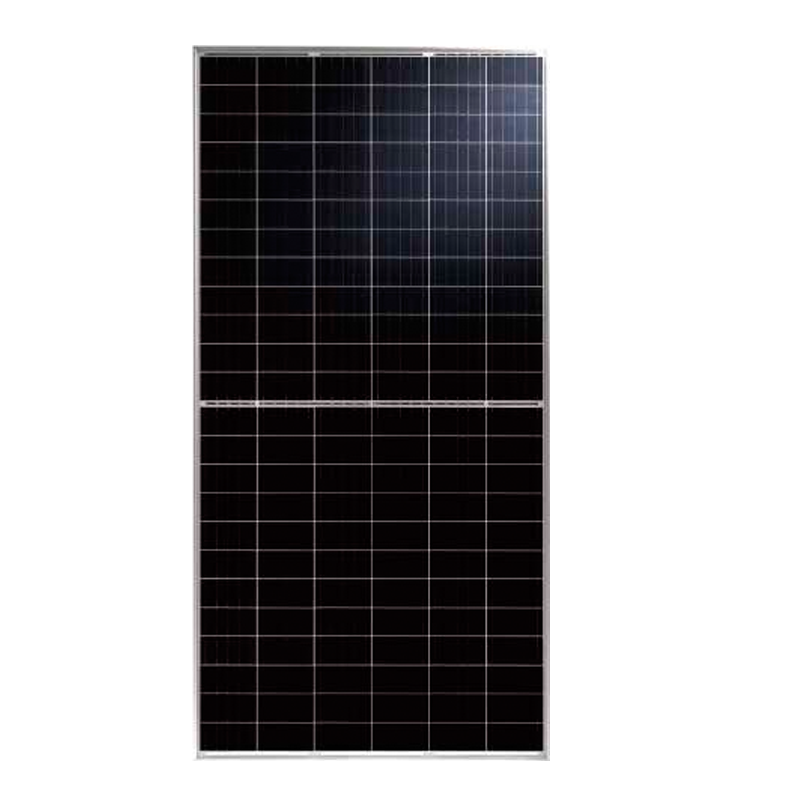

390 - 410W half-cut mono perc 144 half-cell

  1. Home
  2. OEM Solar Panels

390 - 410W half-cut mono perc 144 half-cell

  • Category: OEM Solar Panels
  • Parameter
    •

Product Description

POWER RANGE: 390 - 410W

MAXIMUM EFFICIENCY:  20.4%

POSITIVE POWER TOLERANCE: 0~+3%

Performance at STC (Power Tolerance 0 ~ +3%)

Maximum Power (Pmax/W)

390
395
400
405
410

Operating Voltage (Vmpp/V)

40.0
40.3
40.5
40.7
40.9

Operating Current (Impp/A)

9.70
9.81
9.88
9.96
10.03

Open-Circuit Voltage (Voc/V)

48.7
49.0
49.2
49.3
49.5

Short-Circuit Current (Isc/A)

10.35
10.41
10.48
10.56
10.63

Module Efficiency ηm(%)

19.4
19.6
19.9
20.1
20.4

Performance at NMOT

Maximum Power (Pmax/W)

290
294
298
302
305

Operating Voltage (Vmpp/V)

37.1
37.4
37.6
37.7
37.9

Operating Current (Impp/A)

7.93
7.88
7.94
8.01
8.07

Open-Circuit Voltage (Voc/V)

45.4
45.6
45.8
45.9
46.1

Short-Circuit Current (Isc/A)

8.35
8.40
8.46
8.52
8.58

MECHANICAL SPECIFICATION

Cell Type

Monocrystalline

Cell Dimensions

158.75*158.75mm

Cell Arrangement

144 (6*24)

Weight

22.5kg (49.06Ibs)

Module Dimensions

2008*1002*35mm (79.06*39.45*1.38inches)

Cable Length

Portrait 300mm/Landscape 1200mm/Customized

Cable Cross Section Size

TUV: 4mm2 (0.006inches2 )/UL: 12AWG

Front Glass

3.2mm (0.13inches) AR Coating Tempered Glass

No. of Bypass Diodes

3/6

Packing Configuration (1)

31pcs/carton, 682pcs/40hq

Packing Configuration (2)

31+4pcs/carton, 726pcs/40hq

Frame

Anodized Aluminium Alloy

Junction Box

IP68

OPERATING CONDITIONS

Maximun System Voltage

1000V/1500V/DC(IEC)

Operating Temperature

-40°C ~ +85°C

Maximun Series Fuse

20A

Static Loading

Snow Loading: 5400Pa/ Wind Loading: 2400Pa

Conductivity at Ground

≤0.1Ω

Safety Class

II

Resistance

≥100MΩ

Connector

T01/LJQ-3-CSY/MC4/EV02

TEMPERATURE COEFFICIENT

Temperature Coefficient Pmax

-0.36%/°C

Temperature Coefficient Voc

-0.26%/°C

Temperature Coefficient Isc

+0.043%/°C

NMOT

43±2°C
