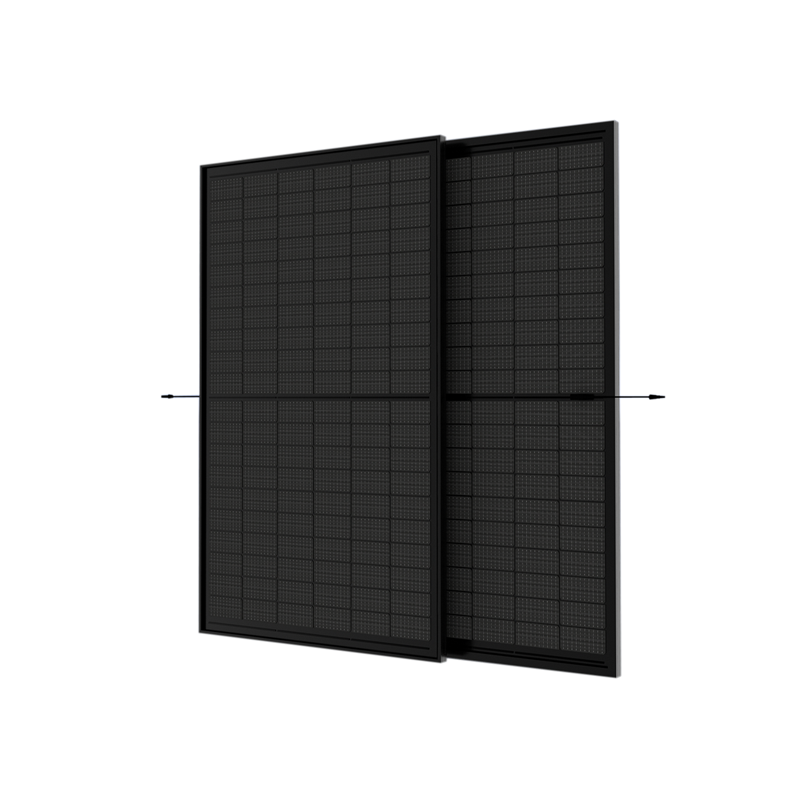

390 - 410W Bifacial Module With TransparentBacksheet 10BB Half-cut Mono Perc 108-cell

  1. Home
  2. OEM Solar Panels

390 - 410W Bifacial Module With TransparentBacksheet 10BB Half-cut Mono Perc 108-cell

  • Category: OEM Solar Panels
  • Parameter
    •

Product Description

POWER RANGE: 390 - 410W

MAXIMUM EFFICIENCY:  21.0%

POSITIVE POWER TOLERANCE: 0~+3%

ELECTRICAL CHARACTERISTICS

Testing Condition

STC

NMOT

STC

NMOT

STC

NMOT

STC

NMOT

STC

NMOT

Maximum Power (Pmax/W)

390
291
395
294
400
298
405
302
410
306

Operating Voltage (Vmpp/V)

30.56
28.6
30.85
28.8
31.05
29.0
31.24
29.2
31.43
29.3

Operating Current (Impp/A)

12.73
10.18
12.81
10.23
12.89
10.30

12.97

10.36
13.05
10.42

Open-Circuit Voltage (Voc/V)

36.50
34.4
36.75
34.6
37.00
34.8

37.25

35.1
37.50
35.3

Short-Circuit Current (Isc/A)

13.61
10.97
13.69
11.04
13.78
11.11

13.86

11.17
13.94
11.24

Module Efficiency (%)

20.00
20.00
20.20
20.20
20.50
20.50
20.70
20.70
21.00
21.00

REAR SIDE POWER GAIN(REFERENCE TO 410W FRONT)

Pmax gain

5%
10%
15%
20%
25%

Pmax/W

431
451
472
492
513

Vmpp/V

31.43
31.4331.4331.4331.43

Impp/A

13.70
14.36
15.01
15.636
16.31

Voc/V

37.50
37.5
37.537.537.5

Isc/A

14.65
15.35
16.04
16.74
17.44
MECHANICAL CHARACTERISTICS

Cell Type

Monocrystalline182*182mm

No. of Cells

108 (6*18)

Module Dimensions

1722*1134*30mm

(67.80*44.65*1.18inches）

Weight

21.5kg (47.4lbs.)

Front Glass

3.2mm AR Coating Tempered Glass

Frame

Anodized Aluminium Alloy

Junction Box

IP68, 3 Bypass Diodes

Output Cables

4mm²(IEC),12AWG(UL)

300mm in Length or Customized Length

Connectors

T01/LJQ-3-CSY/MC4/MC4-EVO2

APPLICATION CONDITIONS

APPLICATION CONDITIONS

1000V/1500V/DC

Operating Temperature

-40°C~+85°C

Maximun Series Fuse

30A

Safety Protection Class

ClassⅡ

Mechanical Load (Front side)

Front side 5400Pa,

Back side 2400Pa

Refer. Bifaciality Factor

70%+5%/-10%

TEMPERATURE CHARACTERISTICS

Temperature Coefficient of Pmax

-0.35%/°C

Temperature Coefficient of Voc

-0.26%/°C

Temperature Coefficient of Isc

+0.048%/°C

Nominal Module Operating

Temperature(NMOT)

43±2°C

PACKING CONFIGURATION

Pieces Per Pallet

36

36(USA)

Pieces Per Container(40'HQ)

936

828
