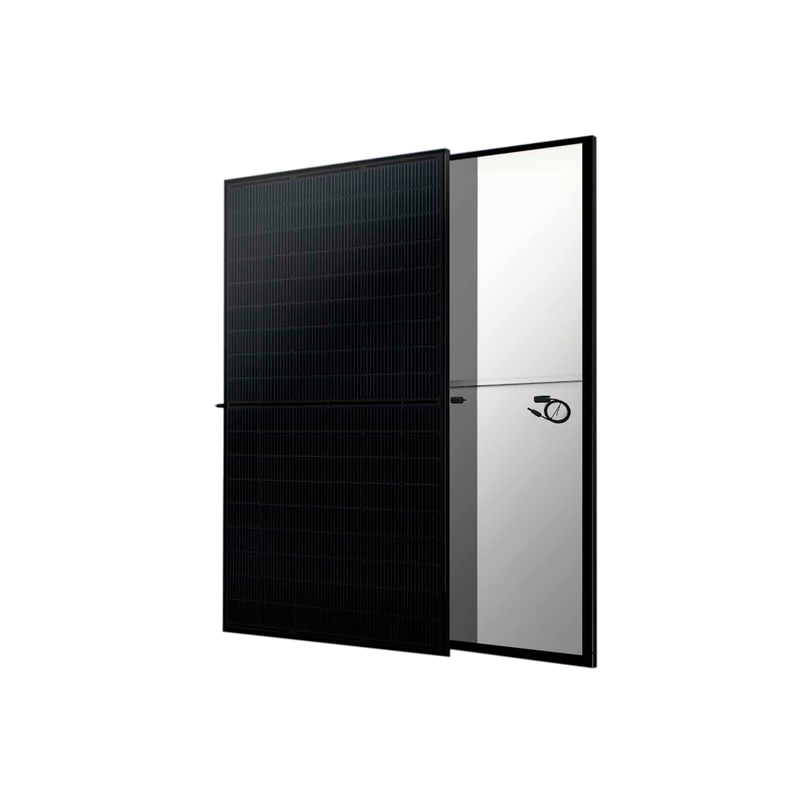

390 - 410W 10BB Half-cut Mono Perc Full Black 108-cell

  1. Home
  2. OEM Solar Panels

390 - 410W 10BB Half-cut Mono Perc Full Black 108-cell

  • Category: OEM Solar Panels
  • Parameter
    •

Product Description

POWER RANGE: 390 - 410W

MAXIMUM EFFICIENCY:  21.0%

POSITIVE POWER TOLERANCE: 0~+3%

ELECTRICAL CHARACTERISTICS

Testing Condition

STC

NMOT

STC

NMOT

STC

NMOT

STC

NMOT

STC

NMOT

Maximum Power (Pmax/W)

390
291
395
294
400
298
405
302
410
306

Operating Voltage (Vmpp/V)

30.65
28.6
30.85
28.8
31.05
29.0
31.24
29.2
31.43
29.3

Operating Current (Impp/A)

12.73
10.18
12.81
10.23
12.89
10.30
12.97
10.36
13.05
10.42

Open-Circuit Voltage (Voc/V)

36.50
34.4
36.75
34.6
37.00
34.8
37.25
35.1
37.50
35.3

Short-Circuit Current (Isc/A)

13.61
10.97
13.69
11.04
13.78
11.11
13.86
11.17
13.94
11.24

Module Efficiency (%)

20.00
20.00
20.20
20.20
20.50
20.50
20.70
20.70
21.00
21.00

STC: Irradiance 1000W/m², Spectra at AM1.5, Module Temperature 25℃. Power output tolerance: 0~+5W, Test uncertainty for Pmax：±3%

NMOT：Irradiance 800W/m², Spectra at AM1.5, Ambient Temperature 20℃, Wind speed 1m/s

MECHANICAL CHARACTERISTICS

Solar Cell

Monocrystalline 182*182mm

No. of Cells

108 (6*18)

Module Dimensions

1722*1134*30mm

(67.80*44.65*1.18inches)

Weight

21.5kg (47.4lbs.)

Front Glass

3.2mm AR Coating Tempered Glass

Frame

Anodized Aluminium Alloy

Junction Box

IP68, 3 Bypass Diodes

Output Cables

4mm²(IEC),12AWG(UL)

300mm in Length or Customized Length

Connectors

T01/LJQ-3-CSY/MC4/MC4-EVO2

APPLICATION CONDITIONS

Maximun System Voltage

1000V/1500V/DC

Operating Temperature

-40°C~+85°C

Maximun Series Fuse

25A

Safety Protection Class

ClassⅡ

Mechanical Load (Front side)

5400Pa

Mechanical Load (Back side)

2400Pa

TEMPERATURE CHARACTERISTICS

Temperature Coefficient of Pmax

-0.35%/°C

Temperature Coefficient of Voc

-0.26%/°C

Temperature Coefficient of Isc

+0.048%/°C

Nominal Module Operating

Temperature(NMOT)

43±2°C

PACKING CONFIGURATION

Pieces Per Pallet

36

36(USA)

Pieces Per Container(40'HQ)

936

936
