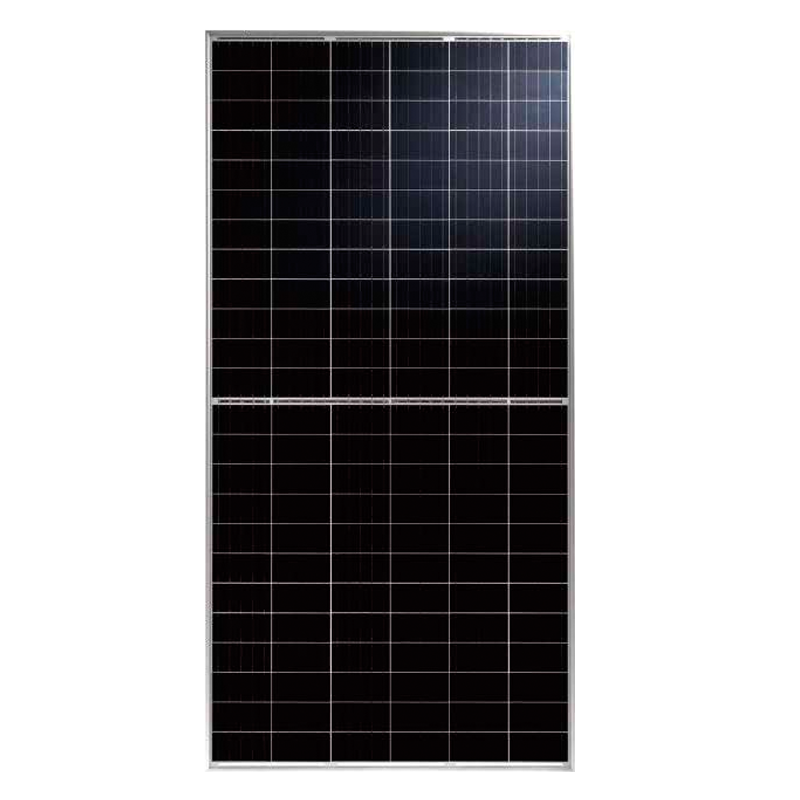

380 - 400W half-cut cast mono 144 half-cell

  1. Home
  2. OEM Solar Panels

380 - 400W half-cut cast mono 144 half-cell

  • Category: OEM Solar Panels
  • Parameter
    •

Product Description

POWER RANGE:  380 - 400W

MAXIMUM EFFICIENCY:  19.9%

POSITIVE POWER TOLERANCE: 0~+3%

Performance at STC (Power Tolerance 0 ~ +3%)

Maximum Power (Pmax/W)

380
385
390
395
400

Operating Voltage (Vmpp/V)

39.6
39.8
40.0
40.3
40.5

Operating Current (Impp/A)

9.60
9.68
9.75
9.81
9.88

Open-Circuit Voltage (Voc/V)

48.3
48.5
48.7
49.0
49.2

Short-Circuit Current (Isc/A)

10.20
10.28
10.35
10.41
10.48

Module Efficiency ηm(%)

18.9
19.1
19.4
19.6
19.9

Performance at NMOT

Maximum Power (Pmax/W)

283
287
290
294
298

Operating Voltage (Vmpp/V)

36.8
36.9
37.1
37.4
37.6

Operating Current (Impp/A)

7.71
7.78
7.83
7.88
7.94

Open-Circuit Voltage (Voc/V)

45.0
45.2
45.4
45.6
45.8

Short-Circuit Current (Isc/A)

8.23
8.30
8.35
8.40
8.46

MECHANICAL SPECIFICATION

Cell Type

Cast Monocrystalline

Cell Dimensions

158.75*158.75mm

Cell Arrangement

144 (6*24)

Weight

22.5kg (49.06Ibs)

Module Dimensions

2008*1002*35mm (79.06*39.45*1.38inches)

Cable Length

Portrait 300mm/Landscape 1200mm/Customized

Cable Cross Section Size

TUV: 4mm2 (0.006inches2 )/UL: 12AWG

Front Glass

3.2mm (0.13inches) AR Coating Tempered Glass

No. of Bypass Diodes

3/6

Packing Configuration (1)

31pcs/carton, 682pcs/40hq

Packing Configuration (2)

31+4pcs/carton, 726pcs/40hq

Frame

Anodized Aluminium Alloy

Junction Box

IP68

OPERATING CONDITIONS

Maximun System Voltage

1000V/1500V/DC(IEC)

Operating Temperature

-40°C ~ +85°C

Maximun Series Fuse

20A

Static Loading

Snow Loading: 5400Pa/ Wind Loading: 2400Pa

Conductivity at Ground

≤0.1Ω

Safety Class

II

Resistance

≥100MΩ

Connector

T01/LJQ-3-CSY/MC4/EV02

TEMPERATURE COEFFICIENT

Temperature Coefficient Pmax

-0.36%/°C

Temperature Coefficient Voc

-0.26%/°C

Temperature Coefficient Isc

+0.043%/°C

NMOT

43±2°C
