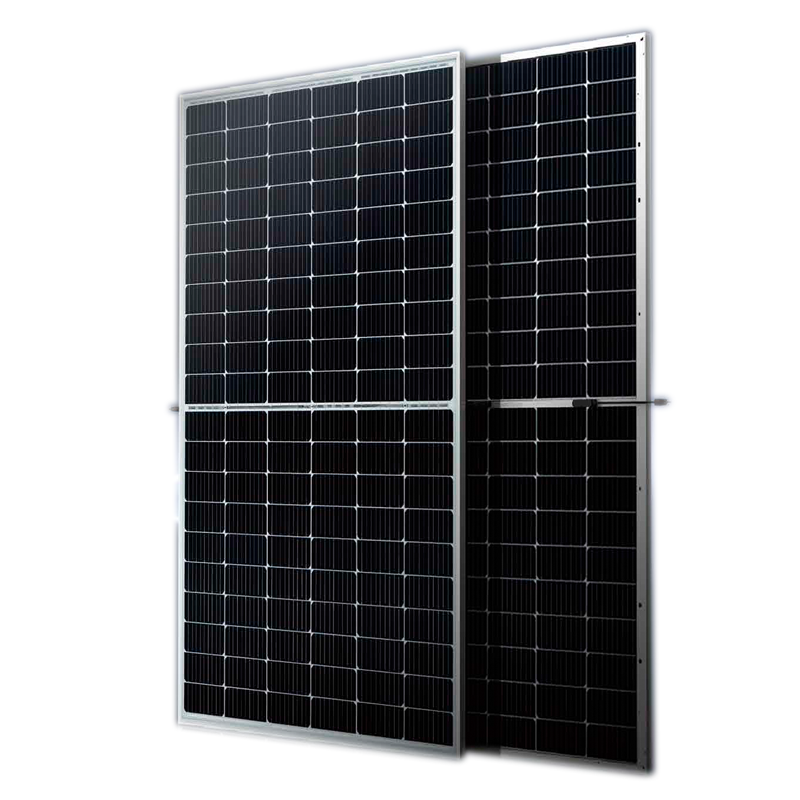

360 - 380W Bifacial Dual Glass 9BB Half-cut Mono Perc

  1. Home
  2. OEM Solar Panels

360 - 380W Bifacial Dual Glass 9BB Half-cut Mono Perc

  • Category: OEM Solar Panels
  • Parameter
    •

Product Description

POWER RANGE: 360 - 380W

MAXIMUM EFFICIENCY:  20.9%

POSITIVE POWER TOLERANCE: 0~+3%

ELECTRICAL CHARACTERISTICS

Testing Condition

STC

NMOT

STC

NMOT

STC

NMOT

STC

NMOT

STC

NMOT

Maximum Power (Pmax/W)

360
268
365
271
370
275
375
278
380
282

Operating Voltage (Vmpp/V)

34.3
31.6
34.6
31.9
34.9
32.1
35.2
32.3
35.5
32.6

Operating Current (Impp/A)

10.50
8.46
10.56
8.50
10.61
8.55
10.66
8.60
10.71
8.64

Open-Circuit Voltage (Voc/V)

40.7
37.9
40.9
38.0
41.1
38.2
41.3
38.4
41.5
38.6

Short-Circuit Current (Isc/A)

11.15
9.00
11.20
9.04
11.26
9.09
11.31
9.13
11.37
9.17

Module Efficiency (%)

19.80
19.80
20.00
20.00
20.30
20.30
20.60
20.60
20.90
20.90

STC: Irradiance 1000W/m², Spectra at AM1.5, Module Temperature 25℃. Power output tolerance: 0~+5W, Test uncertainty for Pmax：±3%

NMOT：Irradiance 800W/m², Spectra at AM1.5, Ambient Temperature 20℃, Wind speed 1m/s

REAR SIDE POWER GAIN(REFERENCE TO 375W FRONT)

Pmax gain

5%
10%
15%
20%
25%

Pmax/W

394
413
431
450
469

Pmax/W

35.2
35.2
35.2
35.2
35.2

Impp/A

11.1911.7312.26
12.79
13.33

Voc/V

41.3
41.3
41.3
41.3
41.3

Isc/A

11.88
12.44
13.01
13.57
14.14

MECHANICAL CHARACTERISTICS

Cell Type

Monocrystalline Silicon(9Busbar)

No. of Cells

120pcs in series (6*20)

Module Dimensions

1755*1038*30mm(69.09*40.87*1.18 inches)

Weight

23.5kg (51.8lbs)

Front Glass

2.0mm AR Coating Semi-tempered Glass

Back Glass

2.0mm Glazed Semi-tempered Glass

Frame

Anodized Aluminium Alloy

Junction Box

IP68, 3 Bypass Diodes

Output Cables

4mm² (IEC), 12AWG(UL)

300mm in Length or Customized Length

Connectors

T01/LJQ-3-CSY/MC4/MC4-EVO2

APPLICATION CONDITIONS

Maximun System Voltage

1500V/DC

Operating Temperature

-40°C~+85°C

Maximun Series Fuse

25A

Safety Protection Class

ClassⅡ

Mechanical Load (Front side)

Front side 5400Pa, Back side 2400Pa

Refer. Bifaciality Factor

70%±5%

TEMPERATURE CHARACTERISTICS

Temperature Coefficient of Pmax

-0.36%/°C

Temperature Coefficient of Voc

-0.26%/°C

Temperature Coefficient of Isc

+0.043%/°C

Nominal Module Operating

Temperature(NMOT)

43±2°C

PACKING CONFIGURATION

Pieces Per Pallet

36

36(USA)

Pieces Per Container(40'HQ)

936

792
