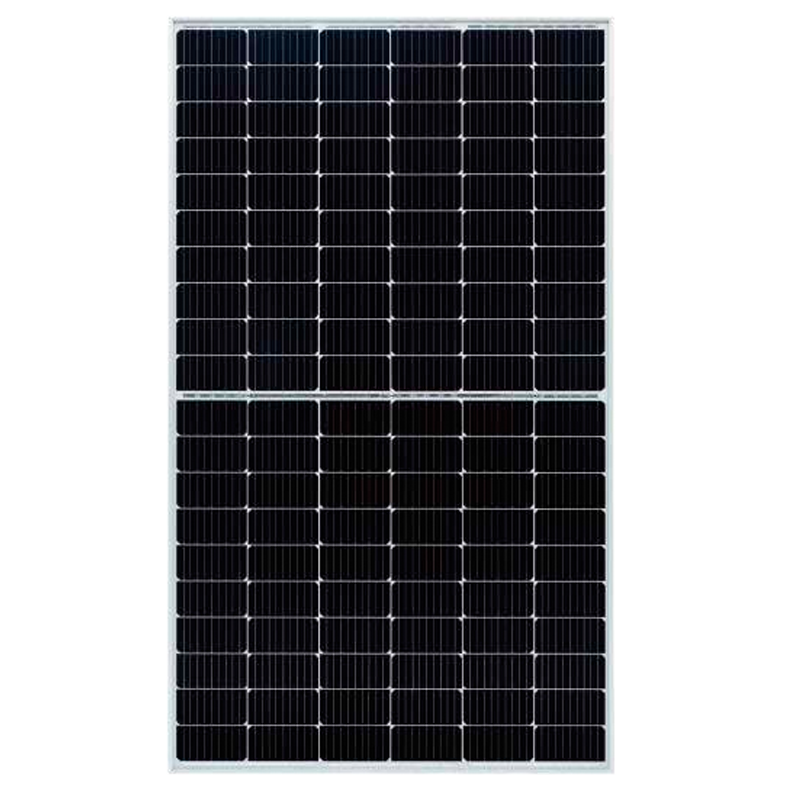

360 - 380W 9BB half-cut mono perc 120 half-cell

  1. Home
  2. OEM Solar Panels

360 - 380W 9BB half-cut mono perc 120 half-cell

  • Category: OEM Solar Panels
  • Parameter
    •

Product Description

POWER RANGE: 360 - 380W

MAXIMUM EFFICIENCY:  20.9%

POSITIVE POWER TOLERANCE: 0~+3%

Performance at STC (Power Tolerance 0 ~ +3%)

Maximum Power (Pmax/W)

360
365
370
375
380

Operating Voltage (Vmpp/V)

34.3
34.6
34.9
35.2
35.5

Operating Current (Impp/A)

10.50
10.56
10.61
10.66
10.71

Open-Circuit Voltage (Voc/V)

40.7
40.9
41.1
41.3
41.5

Short-Circuit Current (Isc/A)

11.15
11.20
11.26
11.31
11.37

Module Efficiency ηm(%)

19.7
20.0
20.3
20.5
20.9

Performance at NMOT

Maximum Power (Pmax/W)

267
271
274
278
282

Operating Voltage (Vmpp/V)

31.6
31.9
32.1
32.3
32.6

Operating Current (Impp/A)

8.46
8.50
8.55
8.60
8.64

Open-Circuit Voltage (Voc/V)

37.9
38.0
38.2
38.4
38.6

Short-Circuit Current (Isc/A)

9.00
9.04
9.09
9.13
9.17

MECHANICAL SPECIFICATION

Cell Type

Monocrystalline

Cell Dimensions

166*166mm

Cell Arrangement

120 (6*20)

Weight

21kg (46.3Ibs)

Module Dimensions

1755*1038*35mm (69.09*40.87*1.38inches)

Cable Length

Portrait 300mm/Landscape 1200mm/Customized

Cable Cross Section Size

TUV: 4mm2 (0.006inches2 )/UL: 12AWG

Front Glass

3.2mm (0.13inches) AR Coating Tempered Glass

No. of Bypass Diodes

3

Packing Configuration (1)

31pcs/carton, 806pcs/40hq

Packing Configuration (2)

31pcs/carton, 806pcs/40hq

Frame

Anodized Aluminium Alloy

Junction Box

IP68

OPERATING CONDITIONS

Maximun System Voltage

1000V/1500V/DC(IEC)

Operating Temperature

-40°C ~ +85°C

Maximun Series Fuse

20A

Static Loading

Snow Loading: 5400Pa/ Wind Loading: 2400Pa

Conductivity at Ground

≤0.1Ω

Safety Class

II

Resistance

≥100MΩ

Connector

T01/LJQ-3-CSY/MC4/MC4-EVO2

TEMPERATURE COEFFICIENT

Temperature Coefficient Pmax

-0.36%/°C

Temperature Coefficient Voc

-0.26%/°C

Temperature Coefficient Isc

+0.043%/°C

NMOT

43±2°C
