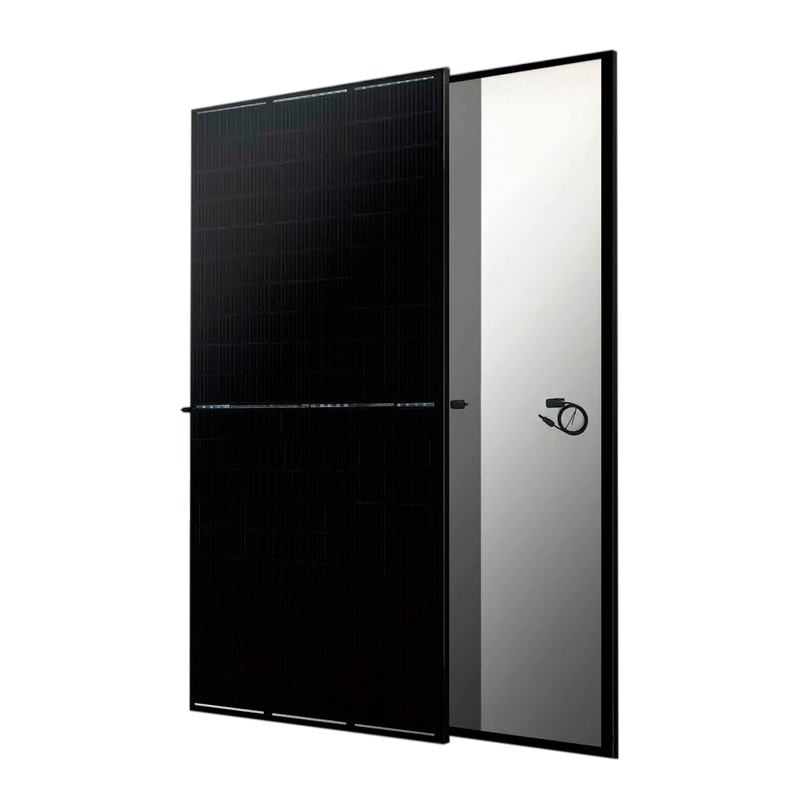

350 - 370W 9BB Half-cut Mono Perc Full Black

  1. Home
  2. OEM Solar Panels

350 - 370W 9BB Half-cut Mono Perc Full Black

  • Category: OEM Solar Panels
  • Parameter
    •

Product Description

POWER RANGE:  350 - 370W

MAXIMUM EFFICIENCY:  20.3%

ELECTRICAL CHARACTERISTICS

Testing Condition

STC

NMOT

STC

NMOT

STC

NMOT

STC

NMOT

STC

NMOT

Maximum Power (Pmax/W)

350
261
355
264
360
267
365
271
370
275

Operating Voltage (Vmpp/V)

33.7
31.1
34.0
31.4
34.3
31.6
34.6
31.9
34.9
32.1

Operating Current (Impp/A)

10.40
8.37
10.45
8.43
10.50
8.46
10.56
8.50
10.61
8.55

Open-Circuit Voltage (Voc/V)

40.3
37.5
40.5
37.7
40.7
37.9
40.9
38.0
41.1
38.2

Short-Circuit Current (Isc/A)

11.04
8.91
11.10
8.96
11.15
9.00
11.20
9.04
11.26
9.09

Module Efficiency (%)

19.2
19.2
19.50
19.50
19.7
19.7
20.00
20.00
20.30
20.30

STC: Irradiance 1000W/m², Spectra at AM1.5, Module Temperature 25℃. Power output tolerance: 0~+5W, Test uncertainty for Pmax：±3%

NMOT：Irradiance 800W/m², Spectra at AM1.5, Ambient Temperature 20℃, Wind speed 1m/s

MECHANICAL CHARACTERISTICS

Cell Type

Monocrystalline Silicon (9Busbar)

No. of Cells

120pcs in series (6*20)

Module Dimensions

1755*1038*30mm

(69.09*40.87*1.18 inches)

Weight

19.5kg (42.99lbs)

Front Glass

3.2mm AR Coating Tempered Glass

Frame

Anodized Aluminium Alloy

Junction Box

IP68, 3 Bypass Diodes

Output Cables

4mm²(IEC),12AWG(UL)

300mm in Length or Customized Length

Connectors

T01/LJQ-3-CSY/MC4/MC4-EVO2

APPLICATION CONDITIONS

Maximun System Voltage

1000V/1500V/DC

Operating Temperature

-40°C~+85°C

Maximun Series Fuse

20A

Safety Protection Class

ClassⅡ

Mechanical Load (Front side)

5400Pa

Mechanical Load (Back side)

2400Pa

TEMPERATURE CHARACTERISTICS

Temperature Coefficient of Pmax

-0.36%/°C

Temperature Coefficient of Voc

-0.26%/°C

Temperature Coefficient of Isc

+0.043%/°C

Nominal Module Operating

Temperature(NMOT)

43±2°C

PACKING CONFIGURATION

Pieces Per Pallet

36

36(USA)

Pieces Per Container(40'HQ)

988

936
