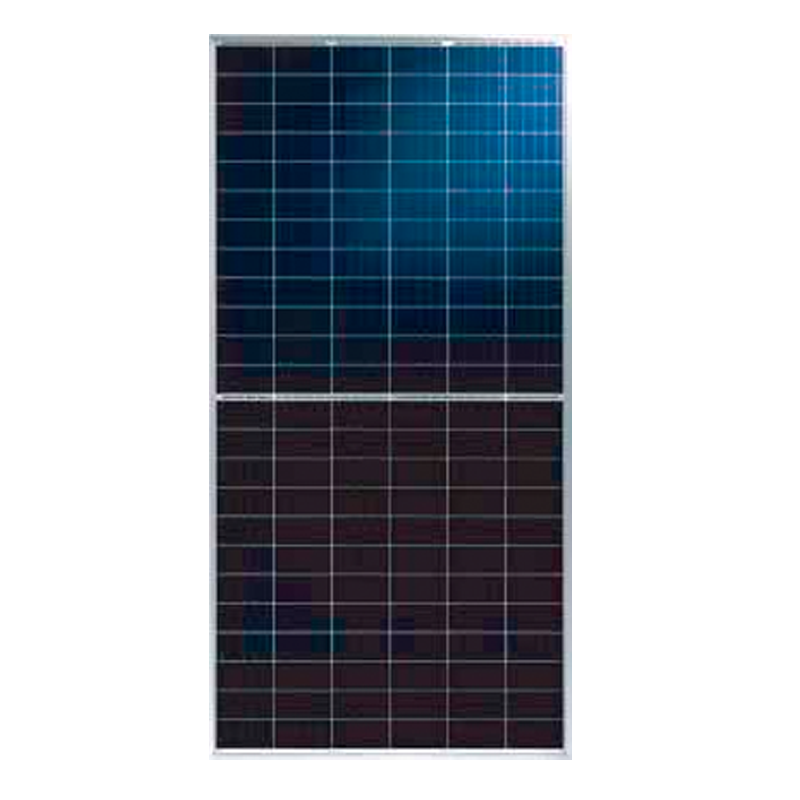

335 - 355W half-cut poly

  1. Home
  2. OEM Solar Panels

335 - 355W half-cut poly

  • Category: OEM Solar Panels
  • Parameter
    •

Product Description

POWER RANGE: 335 - 355W

MAXIMUM EFFICIENCY:  17.7%

POSITIVE POWER TOLERANCE: 0~+3%

Performance at STC (Power Tolerance 0 ~ +3%)

Maximum Power (Pmax/W)

335
340
345
350
355

Operating Voltage (Vmpp/V)

37.4
37.7
38.0
38.3
38.6

Operating Current (Impp/A)

8.96
9.02
9.08
9.14
9.20

Open-Circuit Voltage (Voc/V)

45.7
46.0
46.2
46.5
46.8

Short-Circuit Current (Isc/A)

9.46
9.51
9.58
9.64
9.70

Module Efficiency ηm(%)

16.7
16.9
17.1
17.4
17.7

Performance at NMOT

Maximum Power (Pmax/W)

249
253
256
260
264

Operating Voltage (Vmpp/V)

34.8
35.0
35.3
35.5
35.8

Operating Current (Impp/A)

7.17
7.22
7.28
7.33
7.38

Open-Circuit Voltage (Voc/V)

42.5
42.7
42.9
43.2
43.5

Short-Circuit Current (Isc/A)

7.65
7.69
7.75
7.80
7.84

MECHANICAL SPECIFICATION

Cell Type

Poly

Cell Dimensions

158.75*158.75mm

Cell Arrangement

144 (6*24)

Weight

22.5kg (49.06Ibs)

Module Dimensions

2008*1002*35mm (79.06*39.45*1.38inches)

Cable Length

Portrait 300mm/Landscape 1200mm/Customized

Cable Cross Section Size

TUV: 4mm2 (0.006inches2 )/UL: 12AWG

Front Glass

3.2mm (0.13inches) AR Coating Tempered Glass

No. of Bypass Diodes

3/6

Packing Configuration (1)

31pcs/carton, 682pcs/40hq

Packing Configuration (2)

31+4pcs/carton, 858pcs/40hq

Frame

Anodized Aluminium Alloy

Junction Box

IP68

OPERATING CONDITIONS

Maximun System Voltage

1000V/1500V/DC(IEC)

Operating Temperature

-40°C ~ +85°C

Maximun Series Fuse

20A

Static Loading

Snow Loading: 5400Pa/ Wind Loading: 2400Pa

Conductivity at Ground

≤0.1Ω

Safety Class

II

Resistance

≥100MΩ

Connector

T01/LJQ-3-CSY/MC4/EV02

TEMPERATURE COEFFICIENT

Temperature Coefficient Pmax

-0.39%/°C

Temperature Coefficient Voc

-0.31%/°C

Temperature Coefficient Isc

+0.054%/°C

NMOT

43±2°C
