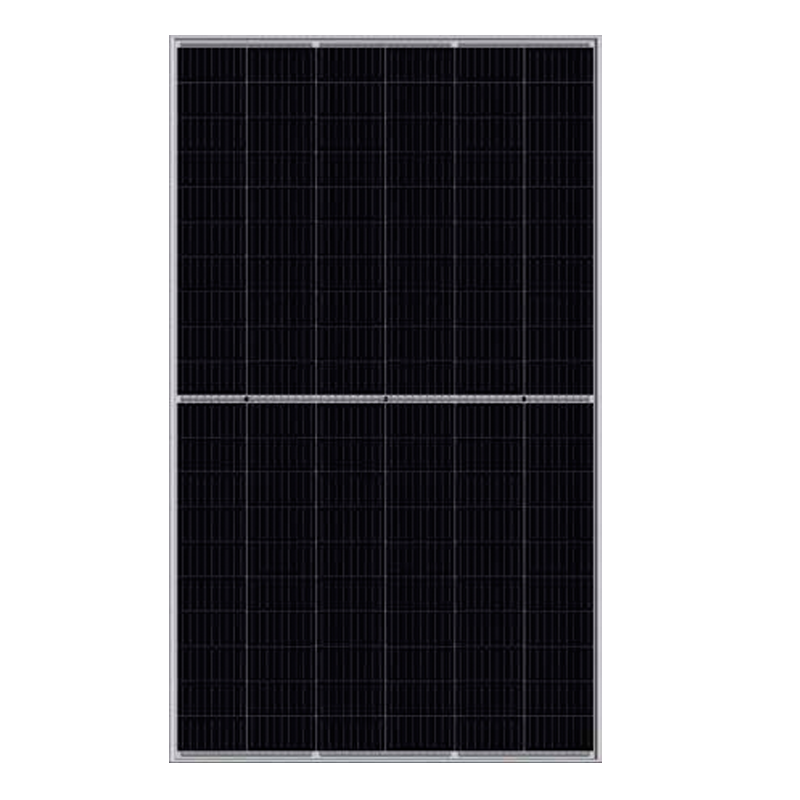

325 - 345W 9BB half-cut mono perc

  1. Home
  2. OEM Solar Panels

325 - 345W 9BB half-cut mono perc

  • Category: OEM Solar Panels
  • Parameter
    •

Product Description

POWER RANGE: 325 - 345W

MAXIMUM EFFICIENCY:  20.4%

POSITIVE POWER TOLERANCE: 0~+3%

Performance at STC (Power Tolerance 0 ~ +3%)

Maximum Power (Pmax/W)

325
330
335
340
345

Operating Voltage (Vmpp/V)

33.8
34.1
34.4
34.7
34.9

Operating Current (Impp/A)

9.61
9.66
9.74
9.80
9.89

Open-Circuit Voltage (Voc/V)

40.3
40.5
40.7
40.9
41.1

Short-Circuit Current (Isc/A)

10.06
10.12
10.18
10.24
10.34

Module Efficiency ηm(%)

19.2
19.5
19.8
20.1
20.4

Performance at NMOT

Maximum Power (Pmax/W)

241
244
248
251
255

Operating Voltage (Vmpp/V)

31.5
31.7
31.9
32.2
32.3

Operating Current (Impp/A)

7.67
7.71
7.78
7.83
7.90

Open-Circuit Voltage (Voc/V)

37.5
37.6
37.8
38.0
38.2

Short-Circuit Current (Isc/A)

8.12
8.17
8.22
8.27
8.35

MECHANICAL SPECIFICATION

Cell Type

Monocrystalline

Cell Dimensions

158.75*158.75mm

Cell Arrangement

120 (6*20)

Weight

20.7kg (45.64Ibs)

Module Dimensions

1684*1002*35mm (66.30*39.45*1.38inches)

Cable Length

Portrait 300mm/Landscape 1200mm/Customized

Cable Cross Section Size

TUV: 4mm2 (0.006inches2 )/UL: 12AWG

Front Glass

3.2mm (0.13inches) AR Coating Tempered Glass

No. of Bypass Diodes

3/6

Packing Configuration (1)

31pcs/carton, 806pcs/40hq

Packing Configuration (2)

31+4pcs/carton, 858pcs/40hq

Frame

Anodized Aluminium Alloy

Junction Box

IP68

OPERATING CONDITIONS

Maximun System Voltage

1000V/1500V/DC(IEC)

Operating Temperature

-40°C ~ +85°C

Maximun Series Fuse

20A

Static Loading

5400pa

Conductivity at Ground

≤0.1Ω

Safety Class

II

Resistance

≥100MΩ

Connector

T01/LJQ-3-CSY/MC4/EV02

TEMPERATURE COEFFICIENT

Temperature Coefficient Pmax

-0.36%/°C

Temperature Coefficient Voc

-0.26%/°C

Temperature Coefficient Isc

+0.043%/°C

NMOT

43±2°C
