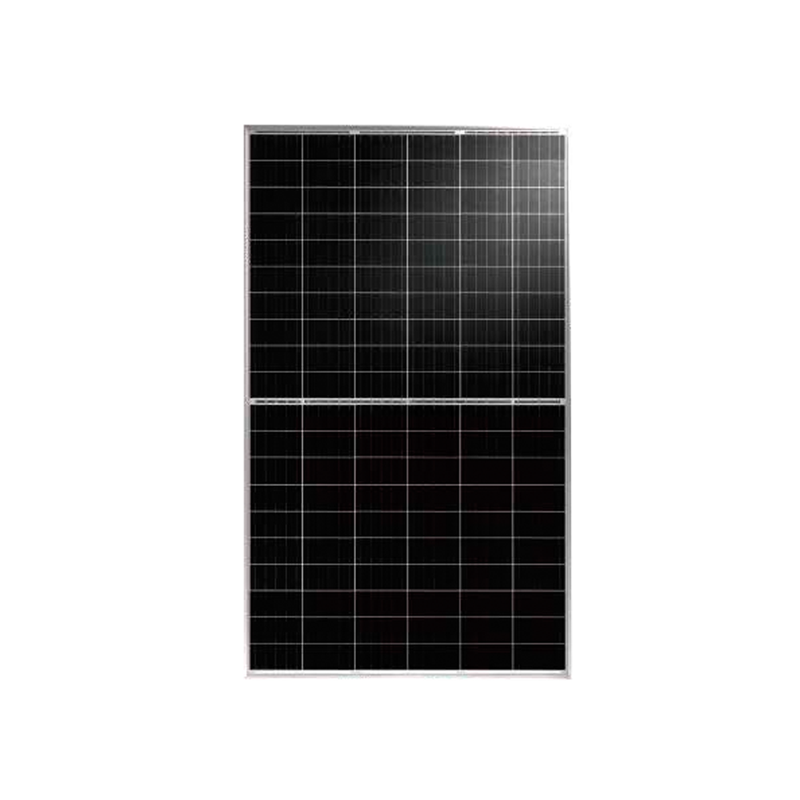

315 - 335W half-cut cast mono

  1. Home
  2. OEM Solar Panels

315 - 335W half-cut cast mono

  • Category: OEM Solar Panels
  • Parameter
    •

Product Description

POWER RANGE: 315 - 335W

MAXIMUM EFFICIENCY:  19.9%

POSITIVE POWER TOLERANCE: 0~+3%

Performance at STC (Power Tolerance 0 ~ +3%)

Maximum Power (Pmax/W)

315

320

325

330

335

Operating Voltage (Vmpp/V)

33.2
33.5
33.8
34.2
34.6

Operating Current (Impp/A)

9.49
9.56
9.62
9.66
9.69

Open-Circuit Voltage (Voc/V)

39.9
40.1
40.3
40.5
40.7

Short-Circuit Current (Isc/A)

10.09
10.16
10.22
10.26
10.29

Module Efficiency ηm(%)

18.7
19.0
19.3
19.6
19.9

Performance at NMOT

Maximum Power (Pmax/W)

234
238
241
245
248

Operating Voltage (Vmpp/V)

30.6
30.9
31.2
31.5
31.8

Operating Current (Impp/A)

7.66
7.71
7.76
7.80
7.83

Open-Circuit Voltage (Voc/V)

37.2
37.3
37.5
37.7
37.8

Short-Circuit Current (Isc/A)

8.14
8.20
8.25
8.28
8.31

MECHANICAL SPECIFICATION

Cell Type

Cast Monocrystalline

Cell Dimensions

158.75*158.75mm

Cell Arrangement

120 (6*20)

Weight

20.7kg (45.64Ibs)

Module Dimensions

1684*1002*35mm (66.30*39.45*1.38inches)

Cable Length

Portrait 300mm/Landscape 1200mm/Customized

Cable Cross Section Size

TUV: 4mm2 (0.006inches2 )/UL: 12AWG

Front Glass

3.2mm (0.13inches) AR Coating Tempered Glass

No. of Bypass Diodes

3/6

Packing Configuration (1)

31pcs/carton, 806pcs/40hq

Packing Configuration (2)

31+4pcs/carton, 858pcs/40hq

Frame

Anodized Aluminium Alloy

Junction Box

IP68

OPERATING CONDITIONS

Maximun System Voltage

1000V/1500V/DC(IEC)

Operating Temperature

-40°C ~ +85°C

Maximun Series Fuse

20A

Static Loading

Snow Loading: 5400Pa/ Wind Loading: 2400Pa

Conductivity at Ground

≤0.1Ω

Safety Class

II

Resistance

≥100MΩ

Connector

T01/LJQ-3-CSY/MC4/EV02

TEMPERATURE COEFFICIENT

Temperature Coefficient Pmax

-0.36%/°C

Temperature Coefficient Voc

-0.26%/°C

Temperature Coefficient Isc

+0.043%/°C

NMOT

43±2°C
