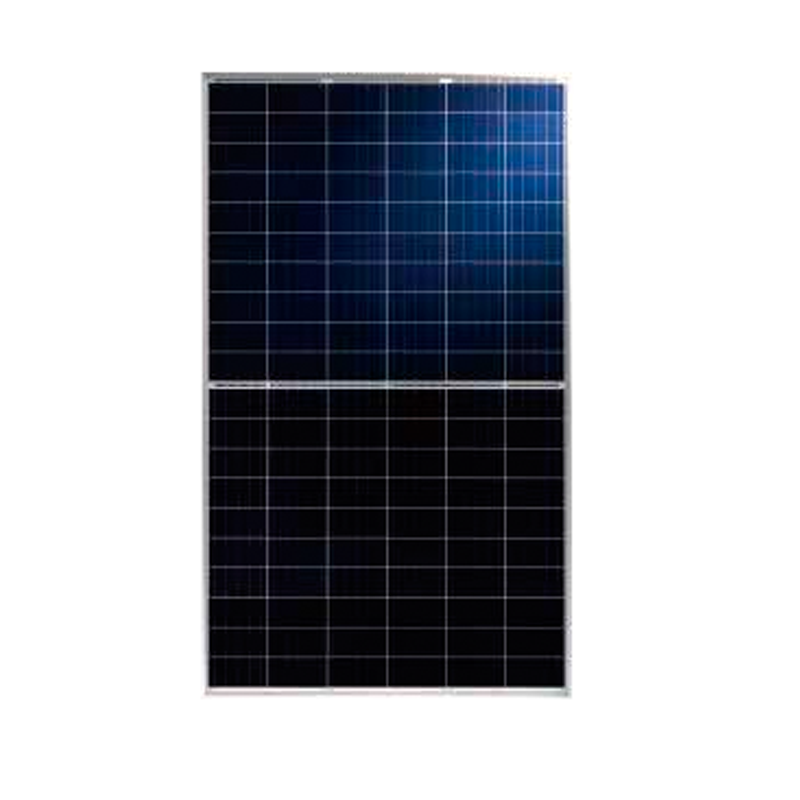

280 - 295W 120 half-cell

  1. Home
  2. OEM Solar Panels

280 - 295W 120 half-cell

  • Category: OEM Solar Panels
  • Parameter
    •

Product Description

POWER RANGE: 280 - 295W

MAXIMUM EFFICIENCY: 17.2%

POSITIVE POWER TOLERANCE: 0~+3%

Performance at STC (Power Tolerance 0 ~ +3%)

Maximum Power (Pmax/W)

280

285

290

295

Operating Voltage (Vmpp/V)

31.3

31.7

32.0

32.3

Operating Current (Impp/A)

8.95

9.00

9.07

9.14

Open-Circuit Voltage (Voc/V)

38.5

38.7

39.0

39.3

Short-Circuit Current (Isc/A)

9.57

9.65

9.73

9.81

Module Efficiency ηm(%)

16.6

16.9

17.2

17.5

Maximum Power (Pmax/W)

208
212
216.3
220

Operating Voltage (Vmpp/V)

29.0
29.2
29.5
29.7

Operating Current (Impp/A)

7.21

7.27

7.34

7.40

Open-Circuit Voltage (Voc/V)

35.8

36.0

36.2

36.5

Short-Circuit Current (Isc/A)

7.74

7.80

7.87

7.93

Cell Type

Poly

Cell Dimensions

158.75*158.75mm

Cell Arrangement

120 (6*20)

Weight

20.7kg (45. 64Ibs)

Module Dimensions

1684*1002*35mm (66.3*39.45*1.38inches)

Cable Length

Portrait 300mm/Landscape 1200mm/Customized

Cable Cross Section Size

TUV: 4mm2 (0.006inches2 )/UL: 12AWG

Front Glass

3.2mm (0.13inches) AR Coating Tempered Glass

No. of Bypass Diodes

3/6

Packing Configuration (1)

31pcs/carton, 806pcs/40hq

Packing Configuration (2)

31+4pcs/carton, 858pcs/40hq

Frame

Anodized Aluminium Alloy

Junction Box

IP68

Maximun System Voltage

1000V/1500V/DC(IEC)

Operating Temperature

-40°C ~ +85°C

Maximun Series Fuse

20A

Static Loading

Snow Loading: 5400Pa/ Wind Loading: 2400Pa

Conductivity at Ground

≤0.1Ω

Safety Class

II

Resistance

≥100MΩ

Connector

T01/LJQ-3-CSY/MC4/EV02


Temperature Coefficient Pmax

-0.39%/°C

Temperature Coefficient Voc

-0.31%/°C

Temperature Coefficient Isc

+0.054%/°C

NMOT

43±2°C
