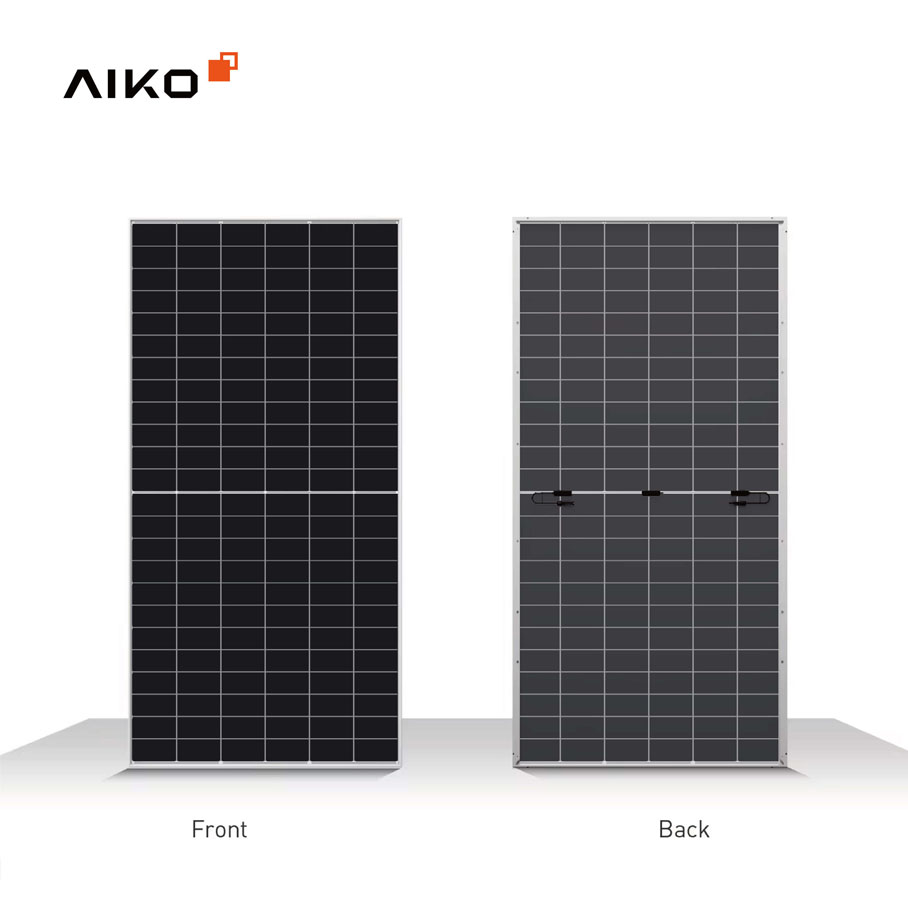

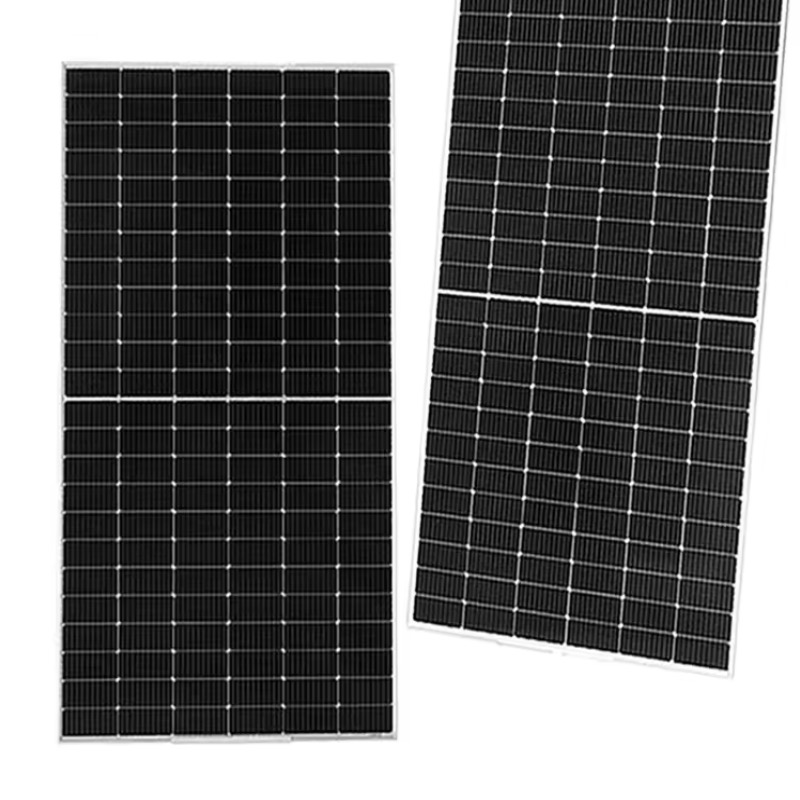

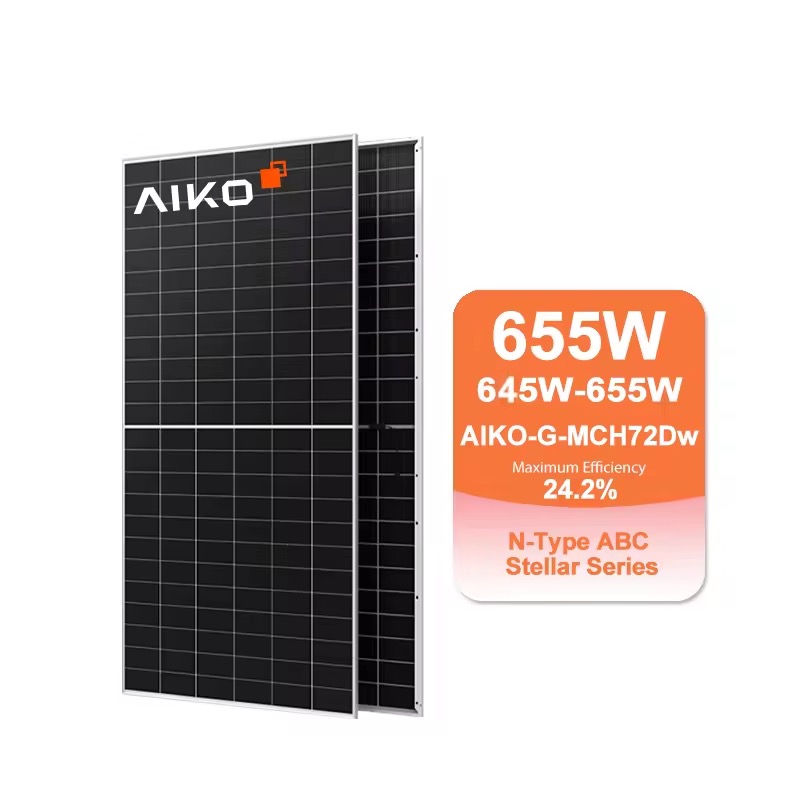

Aiko photovoltaic Solar Panel 655W 650W N-type Topcon BIPV monocrystalline Solar Panel 645W ABC for carpet

MECHANICAL DATA

Module Dimensions

2382*1134*30mm

Weight

33.5KG

Glass

2.0 mm tempered glass

Junction-Box

IP68,3 bypass diodes

Cables

4mm²(IEC) 12AWG(UL)     +350mm, -280mm/±1400mm, length can be customized

Cell Orientation

144cells(6*24)

ELECTRICAL CHARACTERISTICS

Minimum performance at standard test conditions, stc1 (power tolerance 0~+5w)

Model

AIKO-A635-MCH72Dw

AIKO-A640-MCH72Dw

AIKO-A645-MCH72Dw

AIKO-A650-MCH72Dw

AIKO-A655-MCH72Dw

Max. Power

635

640

645

650

655

Open Circuit Voltage

53.70

53.80

53.90

54.00

54.10

Short Circuit Current

14.88

14.94

15.00

15.06

15.12

Max. Power Voltage

45.00

45.10

45.20

45.30

45.40

Max. Power Current

14.12

14.20

14.27

14.35

14.43

Efficiency²

23.5%

23.7%

23.9%

24.1%

24.2%

PACKAGING

Model

AIKO-A635-660-MCH72Dw

Packaging

33 pcs per Pallet, 720pcs per 40'HQ

Note: The above packing information contained in this web is subject to change without notice. We will offer wooden box packing with extra material and labor costs if your order less than a pallet, we accept any customized packing as per your requests.
