Product Description

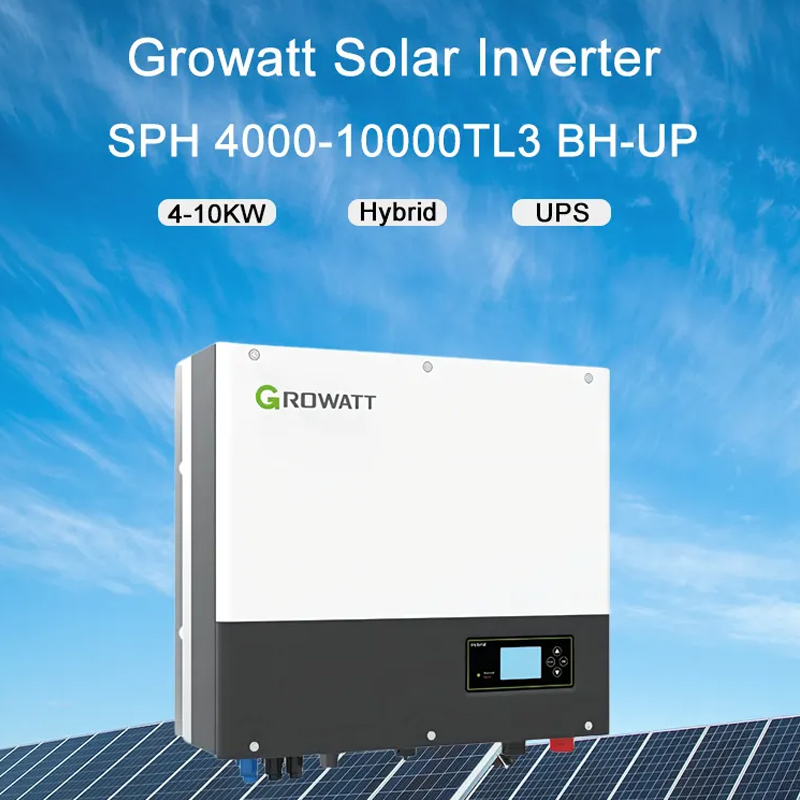

Growatt SPH 4000-10000TL3 BH-UP 3 phase Hybrid Inverter
Datasheet | SPH4000TL3 BH-UP | SPH5000TL3 BH-UP | SPH6000TL3 BH-UP | SPH7000TL3 BH-UP | SPH8000TL3 BH-UP | SPH10000TL3 BH-UP | |||||
Input data(PV) | |||||||||||
Max. recommended PV power | 6000W | 7500W | 9000W | 10500W | 12000W | 15000W | |||||
Max. DC voltage | 1000V | ||||||||||
Start voltage | 120V | ||||||||||
MPP voltage range | 120V-1000V/600V | ||||||||||
No. of MPP trackers | 2 | ||||||||||
No. of PV strings per MPP tracker | 1 | ||||||||||
Max. input current per MPP tracker | 13.5A | ||||||||||
Max. short-circuit current per MPP tracker | 16.9A | ||||||||||
Output data(AC) | |||||||||||
AC nominal power | 4000W | 5000W | 6000W | 7000W | 8000W | 10000W | |||||
Max. AC apparent power | 4000VA | 5000VA | 6000VA | 7000VA | 8000VA | 10000VA | |||||
Nominal AC voltage (range) | 230V/400V (310~476V) | ||||||||||
AC grid frequency (range) | 50Hz/60Hz (45Hz-55Hz/55Hz-65Hz) | ||||||||||
Max. output current | 6.1A | 7.6A | 9.1A | 10.6A | 12.1A | 15.2A | |||||
Adjustable power factor | 0.8leading…0.8lagging | ||||||||||
THDi | <3% | ||||||||||
AC grid connection type | 3W+N+PE | ||||||||||
Battery data (DC) | |||||||||||
Battery voltage range | 100~550V | ||||||||||
Max charging and discharging current | 25A | ||||||||||
Continuous charging and | 4000W | 5000W | 6000W | 7000W | 8000W | 10000W | |||||
Type of battery | Lithium /Lead-acid | ||||||||||
Backup power(AC) | |||||||||||
Max. AC output power | 4000W | 5000W | 6000W | 7000W | 8000W | 10000W | |||||
Max. output current | 6.1A | 7.6A | 9.1A | 10.6A | 12.1A | 15.2A | |||||
Nominal AC output voltage | 230V/400V | ||||||||||
Nominal AC output frequency | 50/60HZ | ||||||||||
THDv | <3% | ||||||||||
Switch time | <10ms | ||||||||||
Efficiency | |||||||||||
MAX. efficiency | 97.60% | 97.80% | 98% | 98.20% | 98.20% | 98.20% | |||||
European efficiency | 97% | 97.2% | 97.3% | 97.4% | 97.4% | 97.5% | |||||
Euro battery discharge efficiency | 97.4% | ||||||||||
MPPT efficiency | 99.9% | ||||||||||
Protection devices | |||||||||||
DC switch | Yes | ||||||||||
DC reverse polarity protection | Yes | ||||||||||
AC/DC surge protection | Type II | ||||||||||
Battery reverse protection | Yes | ||||||||||
AC short-circuit protection | Yes | ||||||||||
Ground fault monitoring | Yes | ||||||||||
Grid monitoring | Yes | ||||||||||
Anti-islanding protection | Yes | ||||||||||
Residual-current monitoring unit | Yes | ||||||||||
Insulation resistance monitoring | Yes | ||||||||||
General data | |||||||||||
Dimensions (W / H / D) | 505/453/198mm | ||||||||||
Weight | 30kg | ||||||||||
Operating temperature range | –25°C ... +60°C | ||||||||||
Nighttime power consumption | < 13 W | ||||||||||
Topology | Transformerless | ||||||||||
Cooling | Natural | ||||||||||
Protection degree | IP65 | ||||||||||
Relative humidity | 0~100% | ||||||||||
Altitude | 3000m | ||||||||||
DC Connection | H4/MC4(Optional) | ||||||||||
AC connection | Connector | ||||||||||
Display | LCD+LED | ||||||||||
Interfaces:RS485/CAN/USB | Yes | ||||||||||
Monitor : RF/WIFI/GPRS | Optional | ||||||||||
Warranty: 5 years / 10 years | Yes/Optional | ||||||||||
